Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of screw type terminal block in China. With abundant experience, we warmly welcome you to buy the newest screw type terminal block from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product advantages

Model: WDDZ-F10/WDDZ-F10A/WDDZ-F20/WDDZ-F20A

WDDZ-F26/WDDZ-F26A/WDDZ-F30/WDDZ-F30A

WDDZ-F34/WDDZ-F34A/WDDZ-F40/WDDZ-F40A/WDDZ-F50/WDDZ-F50A

1.Screw type terminal block ensures stable contact and vibration resistance, staying secure in harsh industrial conditions.

2.Screw type terminal block provides 10–50 channels for centralized signal transfer, connecting directly to PLC and motion control interfaces to simplify cabinet wiring and signal expansion.

3.Enhanced -A models integrate LED indicators, surge protection and filtering for better signal stability and fast fault diagnosis.

4.Designed for standard 35mm DIN rail mounting, it installs easily, keeps wiring tidy and saves cabinet space.

5.Modular structure allows quick disassembly and replacement, enabling easy maintenance without altering overall wiring, and adapting to various load signal requirements.

Main purpose

1. Signal transfer and expansion for PLC/IO modules in industrial automation control cabinets

2. Distribution of control signals (pulse, direction, enable) for servo and stepper drive systems

3. Centralized collection and distribution of IO signals for non-standard automation equipment and industrial robots

4. Temporary signal testing and transfer for exhibition and on-site commissioning scenarios

Technical parameter

Model	Wddz-f10/wddz-f10a
	Wddz-f20/wddz-f20a
	Wddz-f26/wddz-f26a
	Wddz-f30/wddz-f30a
	Wddz-f34/wddz-f34a
	Wddz-f40/wddz-f40a
	Wddz-f50/wddz-f50a
Attestation	Rohs,ccc,iso：9001,ce
Mode of connection	Screw-type (screw-clamped terminal)
Number of channels	Routes 10–50 ((supports 10 to 50 signal inputs/outputs))
Interface type	Adapted for plc/motion control card/servo driver interfaces
Adaptive wire	Compatible with single-strand/multistrand wires; screw terminals are compatible with standard industrial control wire specifications.
Rated voltage/current	Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a
Insulating property	Insulation resistance ≥100 mω (dc 500 v), meeting the insulation requirements for industrial control cabinets.
Shell material	Flame-retardant engineering plastics, suitable for industrial environments

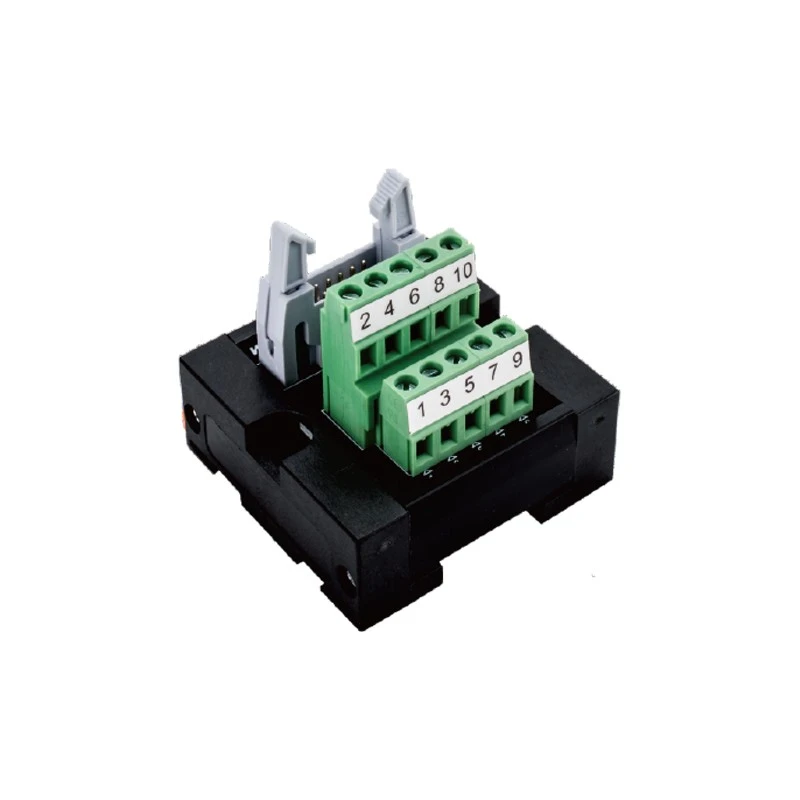

WDDZ-F10/WDDZ-F10A

WDDZ-F20/WDDZ-F20A

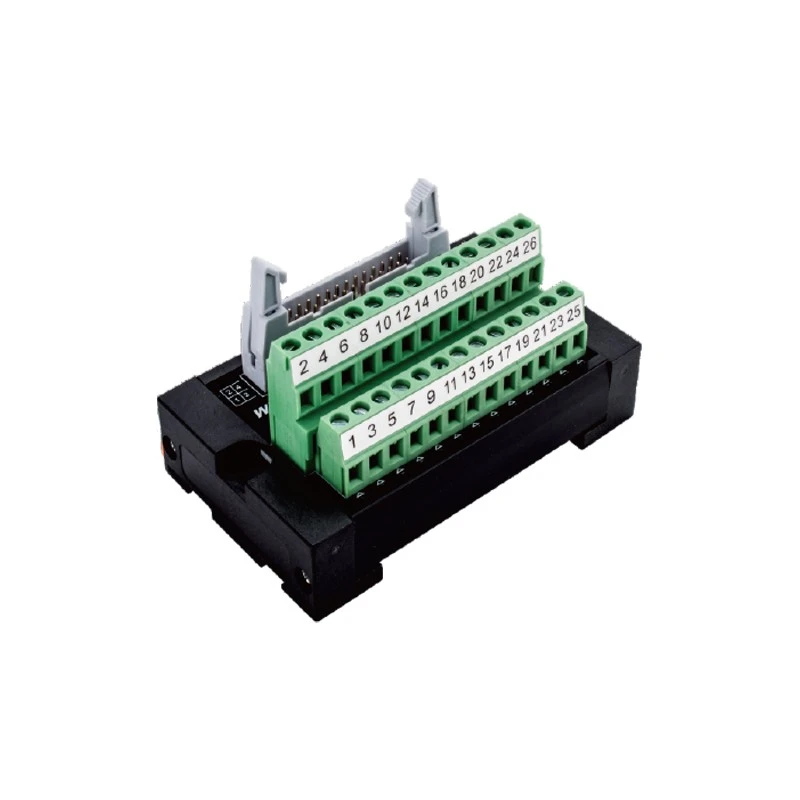

WDDZ-F26/WDDZ-F26A

WDDZ-F30/WDDZ-F30A

WDDZ-F34/WDDZ-F34A

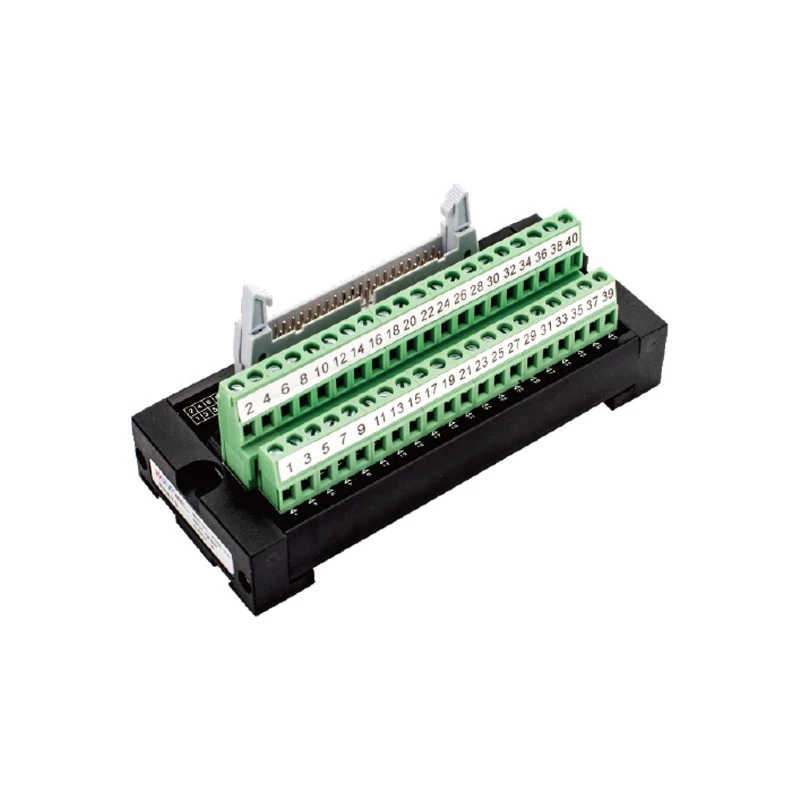

WDDZ-F40/WDDZ-F40A

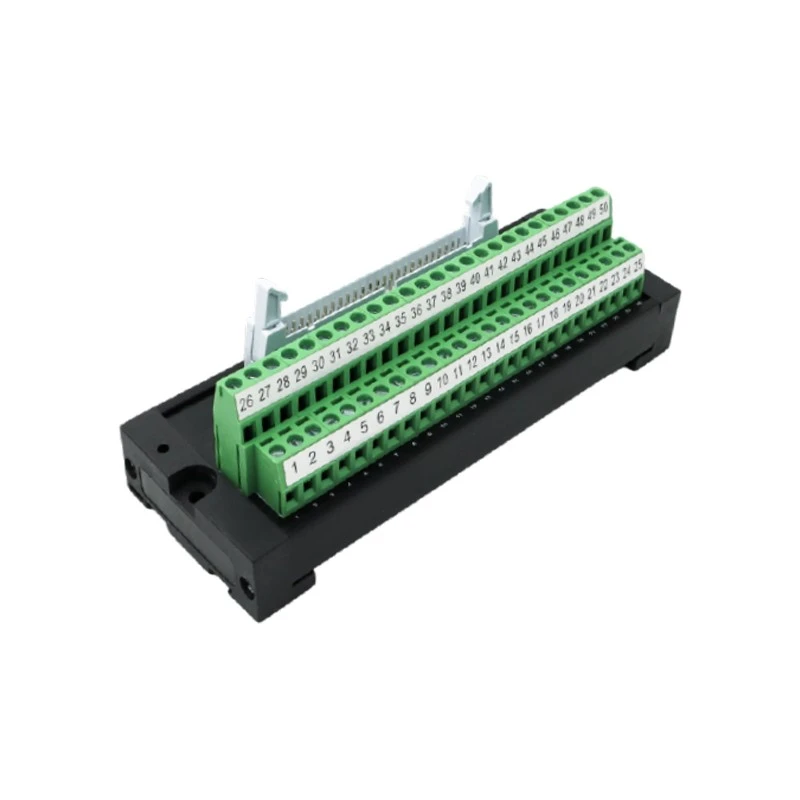

WDDZ-F50A

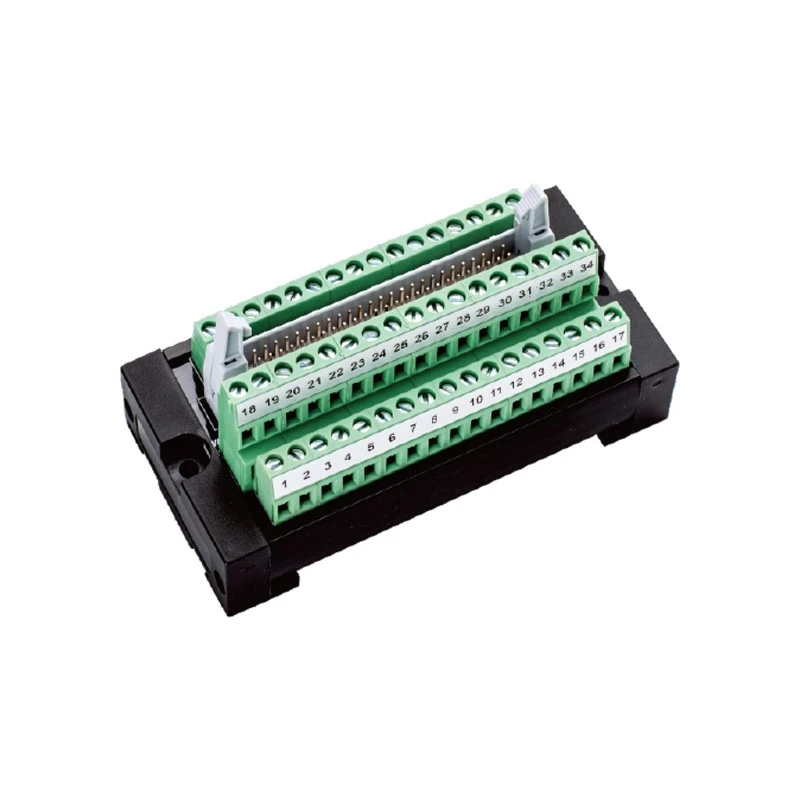

WDDZ-F50B

WDDZ-064

Model	Wddz-064

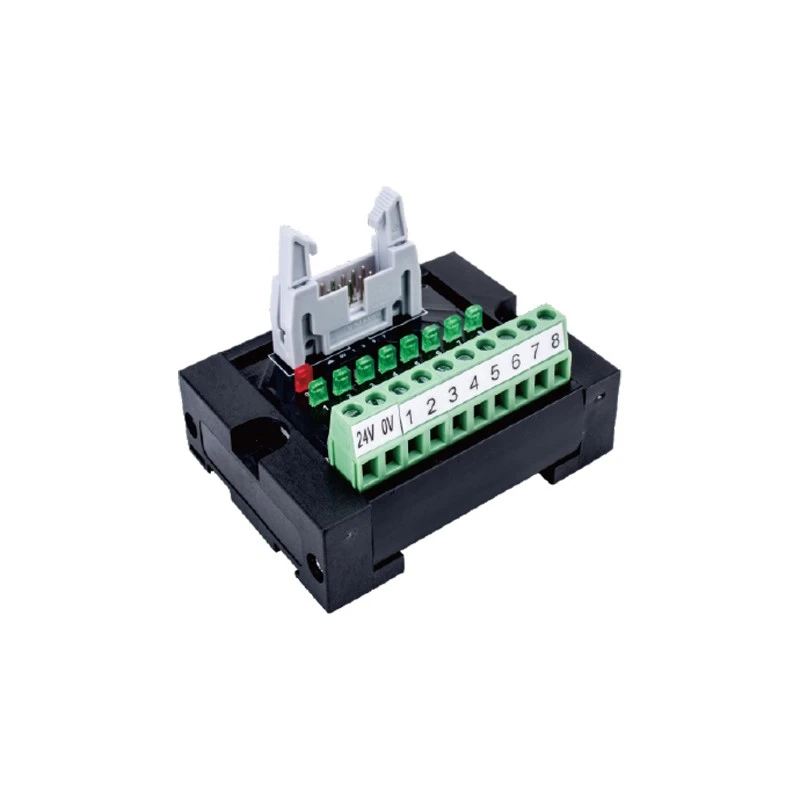

	Wddz-f10n-d
Attestation	Rohs,ccc,iso：9001,ce
Mode of connection	Screw-type (screw-clamped terminal)
Number of channels	Routes 10–50 (supports 10 to 50 signal inputs/outputs)
Interface type	Adapted for plc/motion control card/servo driver interfaces
Adaptive wire	Compatible with single-strand/multistrand wires; screw terminals are compatible with standard industrial control wire specifications.
Rated voltage/current	Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a
Insulating property	Insulation resistance ≥100 mω (dc 500 v), meeting the insulation requirements for industrial control cabinets.
Shell material	Flame-retardant engineering plastics, suitable for industrial environments
