Name: Omron relay module/direct insertion type/open and close
Model: WDG-2L1-01/WDG-4L1-01/WDG-8L1-01/WDG-16L1-01/WDG-32L1-01
Direct insertion type relay module can be directly used in conjunction with industrial control equipment such as PLCs and industrial computers, undertaking the functions of signal expansion, conversion, and amplification, and solving the problems of insufficient control signal driving capability and transmission distance.
At present, direct insertion type relay module has been widely used in industrial automation assembly lines, CNC machine tool control, building automation systems, power monitoring and other fields.
direct insertion type relay module is mainly responsible for establishing stable signal connections between the control end and the execution end, and can directly drive small power execution components such as small solenoid valves, relays, and indicator lights to ensure the stable and orderly operation of the entire equipment.
Technical parameter
| Category | Item | Specification |
|---|---|---|
| Model | Model | WDG-2L1-01 / WDG-4L1-01 / WDG-8L1-01 / WDG-16L1-01 / WDG-32L1-01 |
| Wire | Wire Diameter | 1.5 mm² / AWG16 |
| Certification | Certifications | RoHS, CCC, ISO 9001, CE |
| Input (Coil) | Input Signal | Compatible with NPN and PNP |
| Rated Voltage | DC24V | |
| Rated Current | 25.7mA (DC24V) | |
| Coil Resistance | 1080Ω (DC24V) | |
| Operate Voltage | AC: ≥80% of rated voltageDC: ≥70% of rated voltage | |
| Release Voltage | AC: ≤30% of rated voltageDC: ≤10% of rated voltage | |
| Maximum Allowable Voltage | ≤140% of rated voltage | |
| Rated Power Consumption | AC: 900mWDC: 530mW | |
| Contact Specifications | Contact Form | 1NO + 1NC (SPDT) |
| Contact Material | Silver-Nickel (AgNi) | |
| Initial Contact Resistance | ≤50mΩ | |
| Rated Switching Capacity (Resistive Load) | NO: 12A @ 250VAC / 12A @ 30VDCNC: 12A @ 250VAC / 12A @ 30VDC | |
| Rated Switching Capacity (Inductive Load) | NO: 4A @ 250VAC / 4A @ 30VDCNC: 4A @ 250VAC / 4A @ 30VDC | |
| Maximum Switching Power | NO: 3000W (AC), 360W (DC)NC: 3000W (AC), 180W (DC) | |
| Maximum Switching Voltage | AC250V / DC110V | |
| Minimum Switching Load (Reference) | DC5V, 100mA | |
| Electrical Characteristics | Operate Time | ≤15ms |
| Release Time | ≤10ms | |
| Life Expectancy | Mechanical Life | AC: ≥10,000,000 operationsDC: ≥20,000,000 operationsSwitching frequency: 1800 operations/hour |
| Electrical Life | ≥100,000 operations | |
| Environmental | Operating Temperature | -40°C ~ +70°C |
| Operating Humidity | 5% ~ 85% RH |

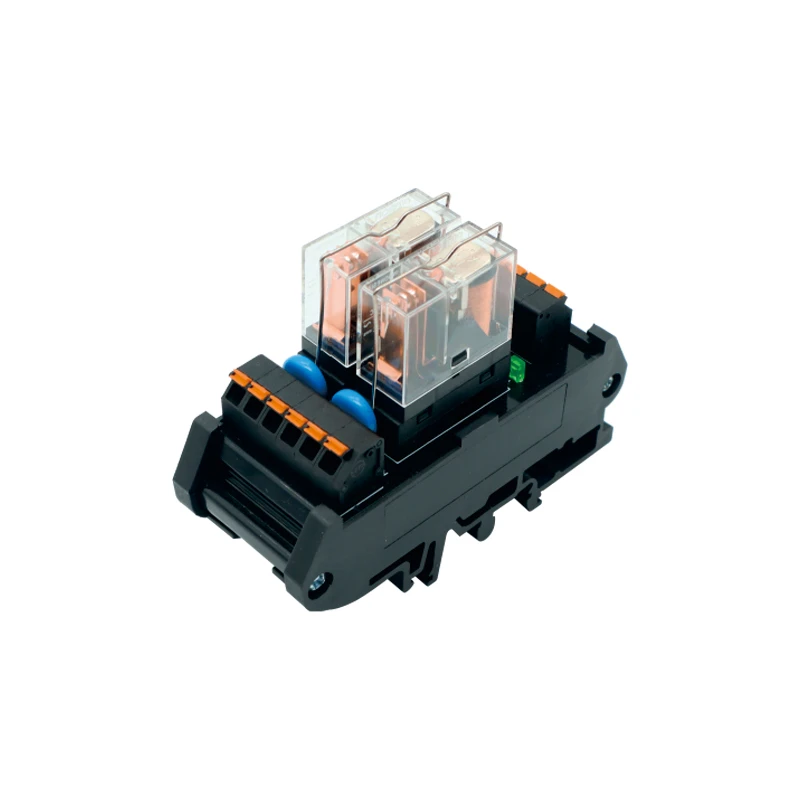

WDG-2L1-01
WDG-4L1-01

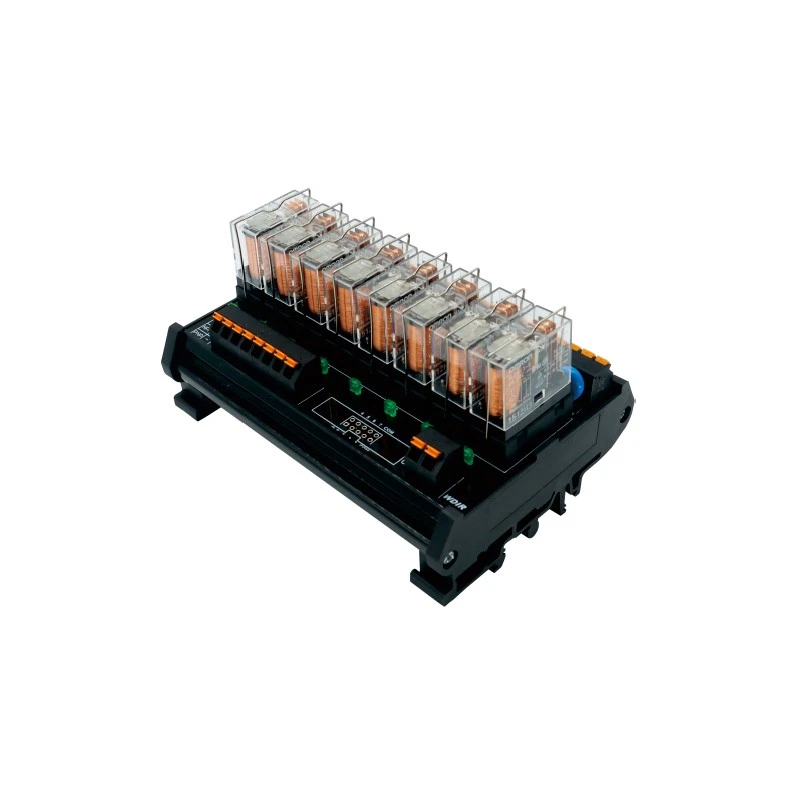

WDG-8L1-01
WDG-16L1-01

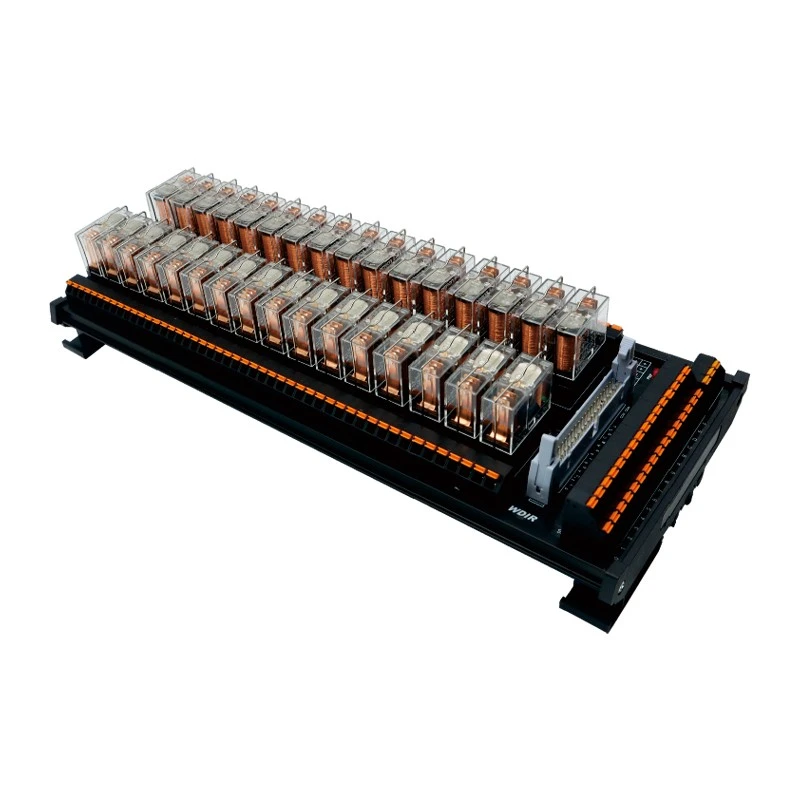

WDG-32L1-01
