Product Details
Name: Omron relay module/screw type/open and close
Model: WDG-2L1/WDG-4L1/WDG-8L1/WDG-16L1/WDG-32L1
Screw type relay module is a commonly used intermediate control unit in automation control systems. Its core function is to control the high-voltage load circuit using low-voltage signals output by PLC or sensors, while achieving electrical isolation on the input and output sides to avoid damage to the front-end control equipment caused by surges, overvoltages, and other issues on the back-end load side. screw type relay module adds a safety protection to the entire control system.
Screw type relay module integrates two independent relay channels, which can simultaneously drive two different loads, equivalent to directly expanding the number of output contacts of the PLC, without the need to add additional IO modules to meet the control requirements of more points. It also comes with an NPN/PNP dual signal compatibility design, which can adapt to the vast majority of control devices on the market without modifying the wiring, and has strong on-site adaptability.
Technical parameter
| Category | Item | Specification |
|---|---|---|
| Model | Model | WDG-2L1 / WDG-4L1 / WDG-8L1 / WDG-16L1 / WDG-32L1 |
| Wire | Wire Diameter | 1.5 mm² / AWG16 |
| Certification | Certifications | RoHS, CCC, ISO 9001, CE |
| Input (Coil) | Input Signal | Compatible with NPN and PNP |
| Rated Voltage | DC24V | |
| Rated Current | 25.7mA (DC24V) | |
| Coil Resistance | 1080Ω (DC24V) | |
| Operate Voltage | AC: ≥80% of rated voltageDC: ≥70% of rated voltage | |
| Release Voltage | AC: ≤30% of rated voltageDC: ≤10% of rated voltage | |
| Maximum Allowable Voltage | ≤140% of rated voltage | |
| Rated Power Consumption | AC: 900mWDC: 530mW | |
| Contact Specifications | Contact Form | 1NO + 1NC (SPDT) |
| Contact Material | Silver-Nickel (AgNi) | |
| Initial Contact Resistance | ≤50mΩ | |
| Rated Switching Capacity (Resistive Load) | NO: 12A @ 250VAC / 12A @ 30VDCNC: 12A @ 250VAC / 12A @ 30VDC | |
| Rated Switching Capacity (Inductive Load) | NO: 4A @ 250VAC / 4A @ 30VDCNC: 4A @ 250VAC / 4A @ 30VD |

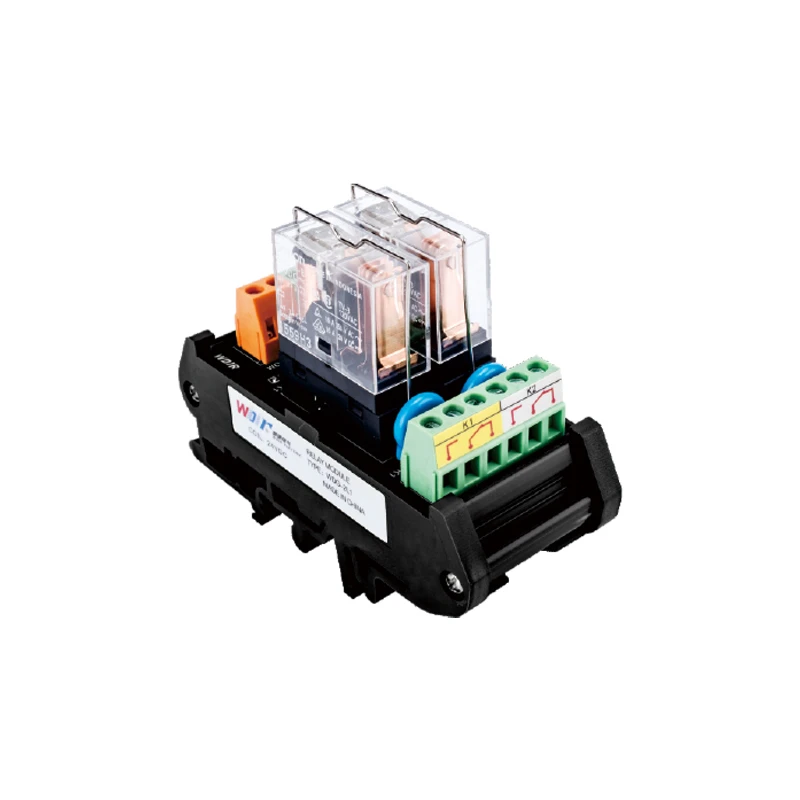

WDG-2L1

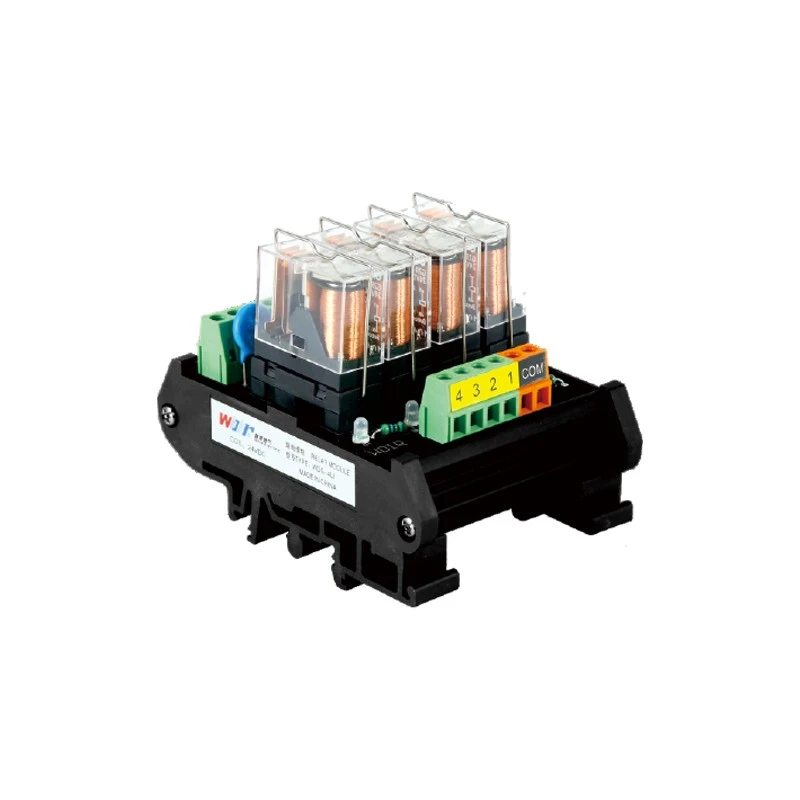

WDG-4L1

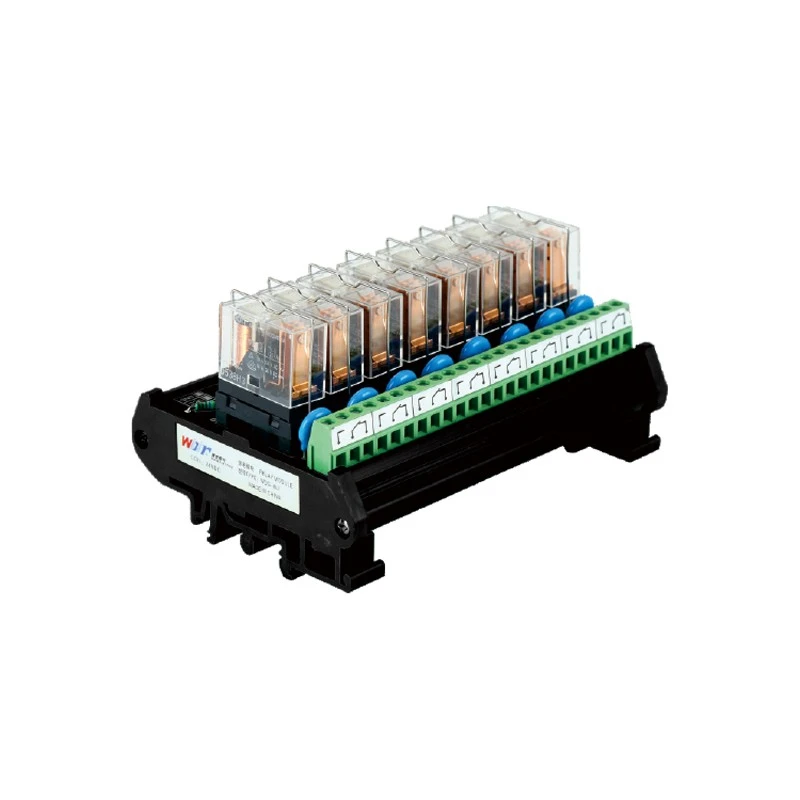

WDG-8L1
WDG-16L1

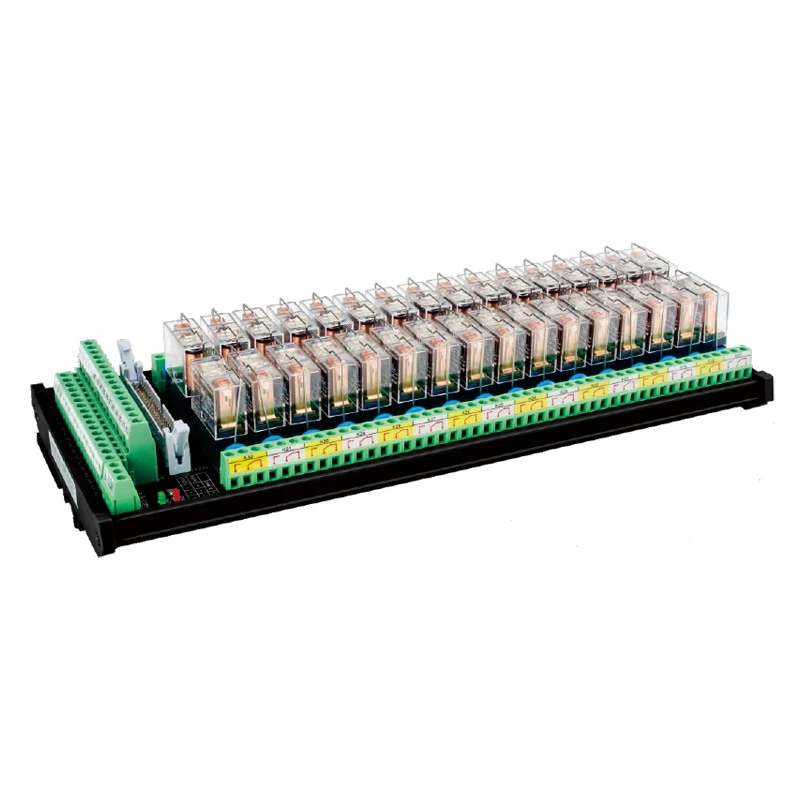

WDG-32L1
