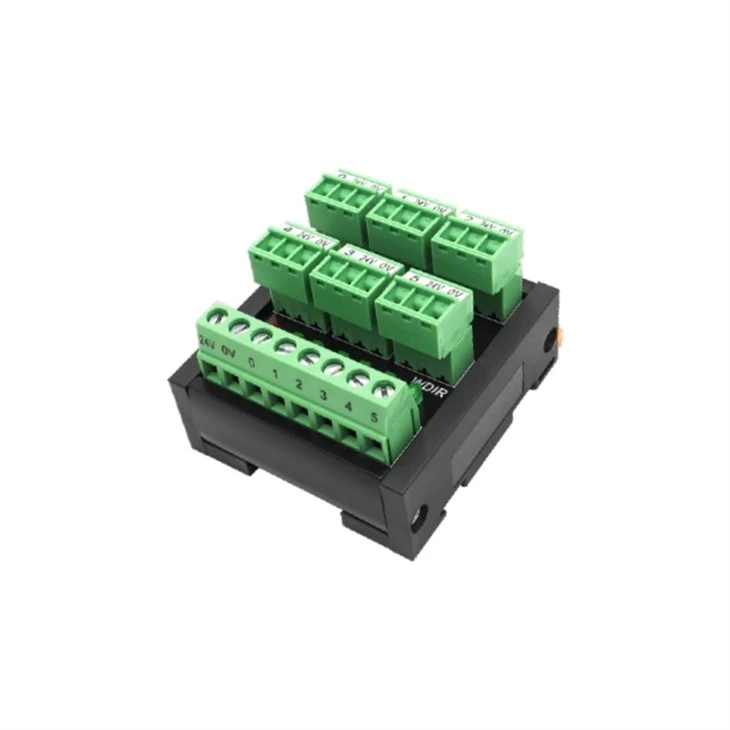

Name: European Input Terminal Block
Model: WDDZ-F043N/WDDZ-F063N/WDDZ-F083N/WDDZ-F103N/WDDZ-F123N/WDDZ-F163N
European Input Terminal Block is the most widely used standardized input and distribution component in the industrial electrical field. It adopts the mature modular design concept in the European industrial control field and is specially developed for the main input and multi branch distribution scenarios of distribution cabinets. Through snap on modular splicing, any number of poles can be freely combined. European Input Terminal Block Compared with traditional fixed terminal blocks, it has stronger adaptability and more standardized wiring, and has become the standard input connection solution for high and low voltage distribution cabinets and automation control cabinets.
Features
Modular and flexible combination: Single pole modules can be arbitrarily spliced, and users can assemble them on site according to their actual pole requirements, without the need to customize specific specifications, greatly reducing spare parts inventory pressure; The modular structure also facilitates the addition and removal of poles in the later stage, adapting to the needs of control cabinet renovation.
Efficient installation and maintenance: Supports standard 35mm DIN rail quick card installation, and the entire row of terminals can be installed in one go. Compared with traditional screw fixed terminals, the installation efficiency is increased by more than 60%; Independent pressure line structure design, single pole wiring failure does not affect adjacent circuits, and maintenance does not require complete disassembly.
Compatible with a wide range of wire diameters: Adopting a layered wiring design from the incoming end to the outgoing end, the incoming side supports larger cross-sectional wires, compatible with main incoming wires of 16~70mm ², and the outgoing side can be matched with branch wires of 1.5~16mm ², perfectly meeting the "one in, multiple out" distribution distribution line requirements.
Reliable safety performance: the insulation base adopts UL 94 V-0 modified flame retardant nylon, which can withstand power frequency withstand voltage above 2.5kV, and has excellent anti-aging and arc resistance performance; The conductive core is made of high-purity copper, with sufficient current redundancy and long-term operation without exceeding the temperature limit; The screw locking structure is equipped with anti loosening washers, which can withstand frequent vibrations in industrial sites without loosening.
Application scenarios
European Input Terminal Block has a wide range of adaptation scenarios: the main incoming line of the low-voltage power distribution cabinet can be divided into multiple branches to supply power to different loads; Automatic production line control cabinet power input, unified completion of external incoming line and cabinet circuit transfer; The power distribution lines of new energy storage cabinets and frequency conversion cabinets meet the connection requirements of high current carrying capacity and high reliability; Centralized distribution of large hydraulic/pneumatic systems to achieve standardized wiring of multiple power signals. At present, it has become an indispensable standardized electrical connection component in industrial power distribution, automation control, new energy, rail transit and other fields, and is the core basic component to ensure the safe and reliable operation of the power distribution system.
Technical parameter
|
Model |
Wddz-f043n |
|
Wddz-f063n |
|
|
Wddz-f083n |
|
|
Wddz-f103n |
|
|

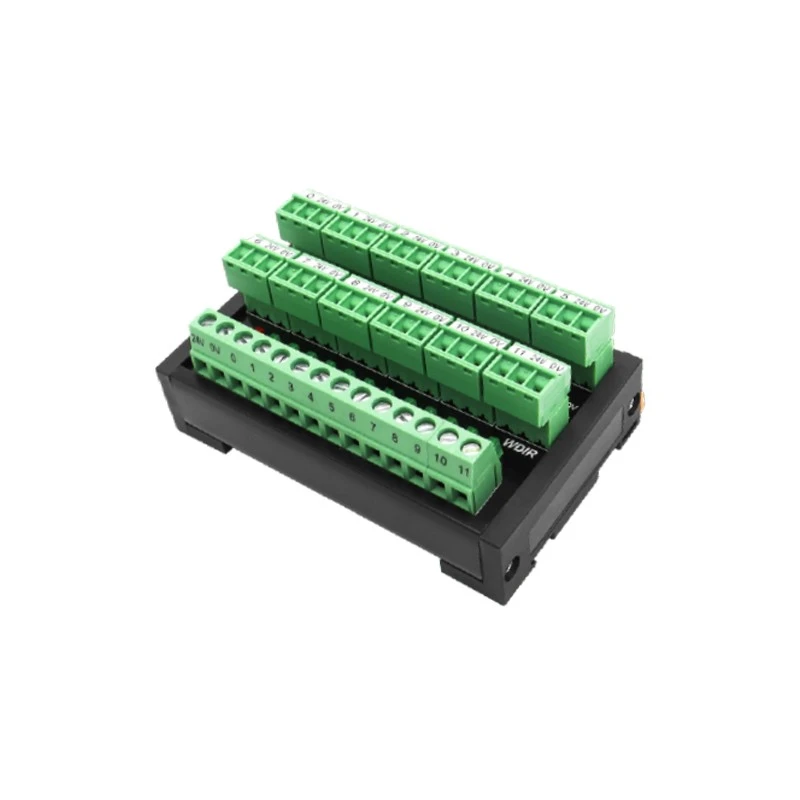

Wddz-f123n |
|
|
Wddz-f163n |
|
|
Conductor wire cross-section |
1.5 mm² / awg 16 |
|
Attestation |
Rohs,ccc,iso：9001,ce |
|
Allowable current |
1a |
|
Allowable voltage |
Dc24v |
|
Output |
Optical switches, push-button switches, fiber optic logistics machine tool,(di digital input signals) |
|
Electromagnetic valve, indicator light (do digital output load) |
|
|
Rated voltage/current |
Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a |
|
Working temperature |
-10°c to +60°c (standard environment inside industrial cabinets) |
|
Shell material |
Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance) |
Technical parameter
|
Model |

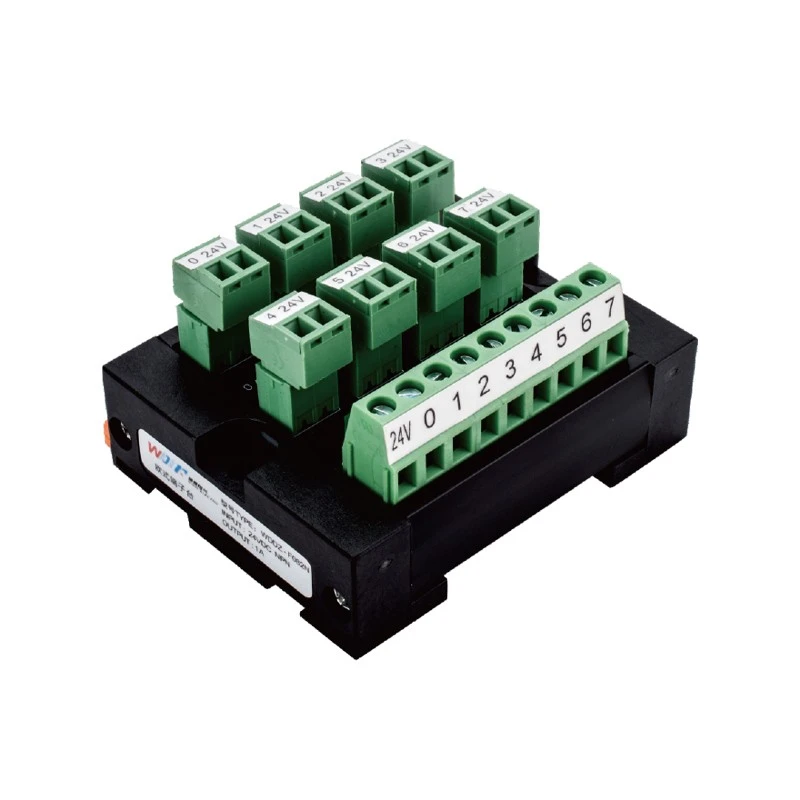

Wddz-f082n/p |
|
Conductor wire cross-section |
1.5 mm² / awg 16 |
|
Attestation |
Rohs,ccc,iso：9001,ce |
|
Allowable current |
1a |
|
Allowable voltage |
Dc24v |
|
Output |
Optical switches, push-button switches, fiber optic logistics machine tool,(di digital input signals) |
|
Electromagnetic valve, indicator light (do digital output load) |
|
|
Rated voltage/current |
Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a |
|
Working temperature |
-10°c to +60°c (standard environment inside industrial cabinets) |
|
Shell material |
Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance) |
Technical parameter
|
Model |

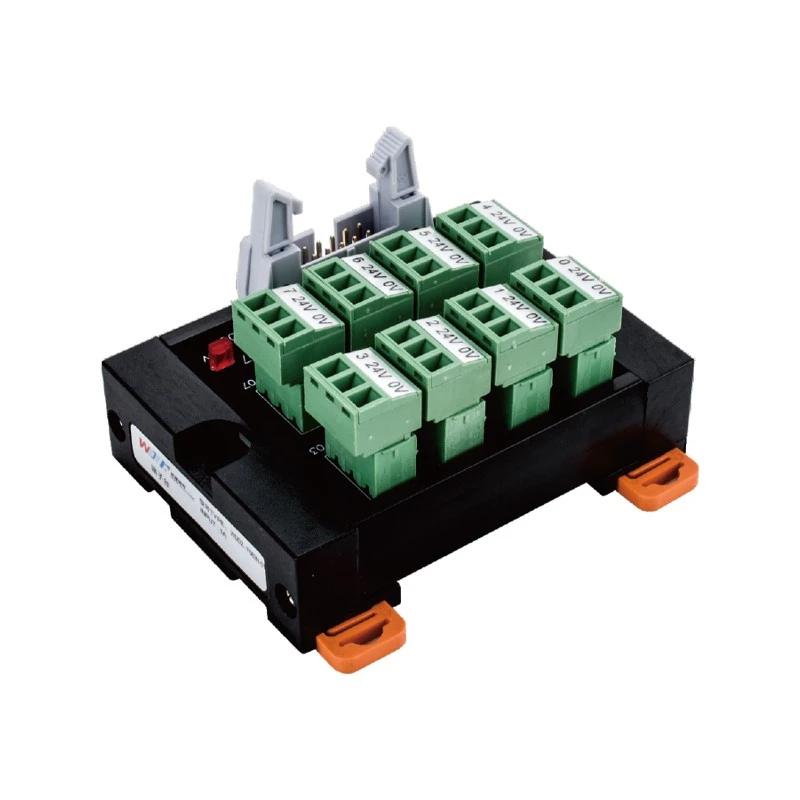

Wddz-f083n-01 |
|
Conductor wire cross-section |
1.5 mm² / awg 16 |
|
Attestation |
Rohs,ccc,iso：9001,ce |
|
Allowable current |
1a |
|
Allowable voltage |
Dc24v |
|
Output |
Optical switches, push-button switches, fiber optic sensors (di digital input signals) |
|
Electromagnetic valve, indicator light (do digital output load) |
|
|
Rated voltage/current |
Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a |
|
Working temperature |
-10°c to +60°c (standard environment inside industrial cabinets) |
|
Shell material |
Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance) |
Technical parameter
|
Wddz-f083n-01 |
Wddz-015-10 |
|
Conductor wire cross-section |
1.5 mm² / awg 16 |
|
Attestation |
Rohs,ccc,iso：9001,ce |
|
Allowable current |
1a |
|
Allowable voltage |
Dc24v |
|
Output |
Optical switches, push-button switches, fiber optic logistics machine tool,(di digital input signals) |
|
Electromagnetic valve, indicator light (do digital output load) |
|
|
Rated voltage/current |
Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a |
|
Working temperature |
-10°c to +60°c (standard environment inside industrial cabinets) |
|
Shell material |
Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance) |
Technical parameter
|
Wddz-f083n-01 |

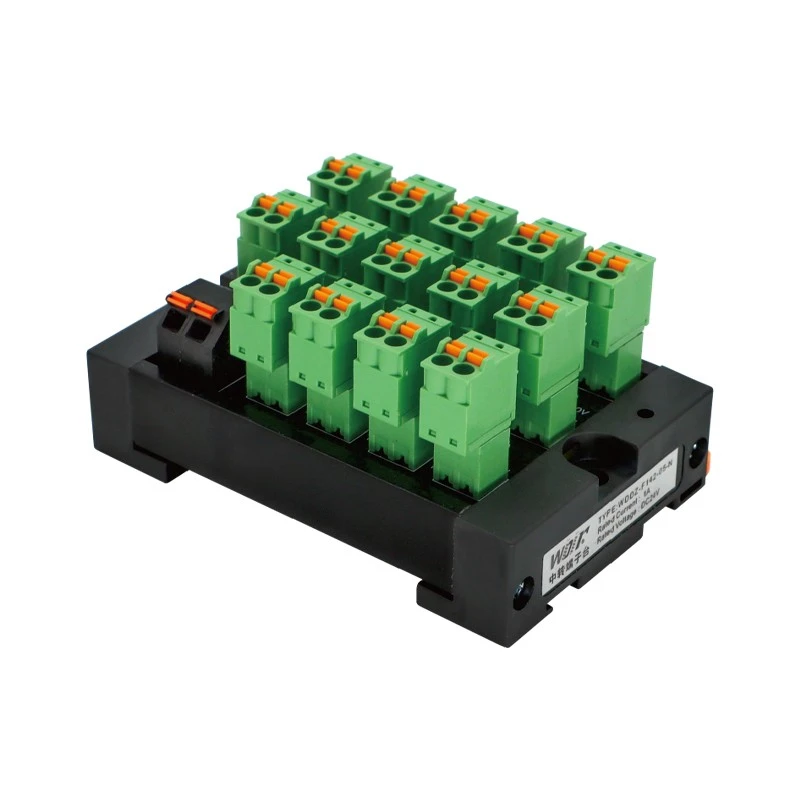

Wddz-f142-05-n |
|
Conductor wire cross-section |
1.5 mm² / awg 16 |
|
Attestation |
Rohs,ccc,iso：9001,ce |
|
Allowable current |
1a |
|
Allowable voltage |
Dc24v |
|
Output |
Optical switches, push-button switches, fiber optic sensors (di digital input signals) |
|
Electromagnetic valve, indicator light (do digital output load) |
|
|
Rated voltage/current |
Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a |
|
Working temperature |
-10°c to +60°c (standard environment inside industrial cabinets) |
|
Shell material |
Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance) |
Technical parameter
|
Model |

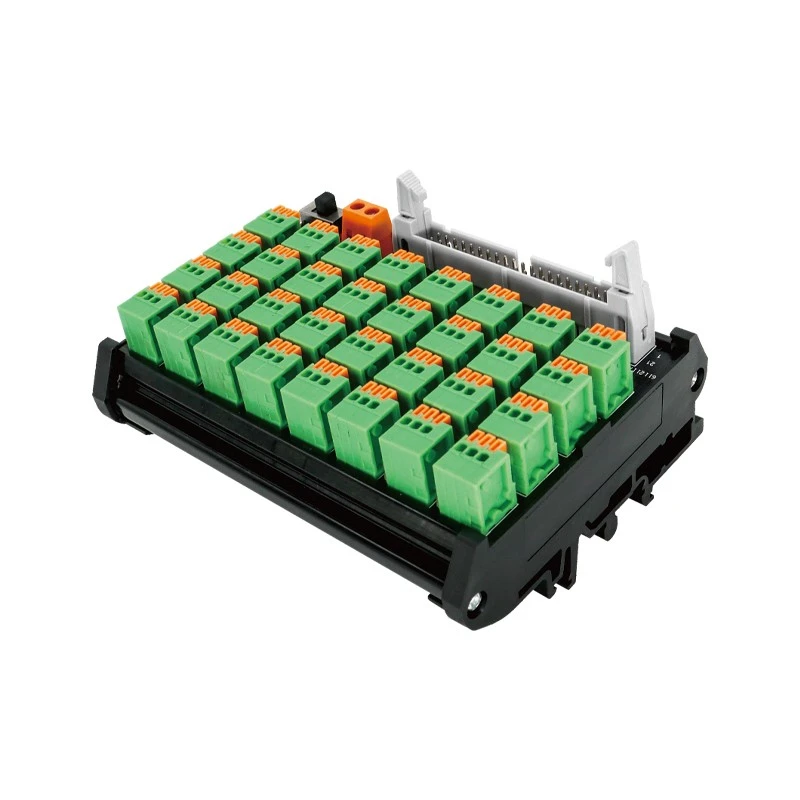

Wddz-f323-12 |
|
Conductor wire cross-section |
1.5 mm² / awg 16 |
|
Attestation |
Rohs,ccc,iso：9001,ce |
|
Allowable current |
1a |
|
Allowable voltage |
Dc24v |
|
Output |
Optical switches, push-button switches, fiber optic sensors (di digital input signals) |
|
Electromagnetic valve, indicator light (do digital output load) |
|
|
Rated voltage/current |
Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a |
|
Working temperature |
-10°c to +60°c (standard environment inside industrial cabinets) |
|
Shell material |
Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance) |
