Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of european style input terminal block in China. With abundant experience, we warmly welcome you to buy the newest european style input terminal block from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product advantages

Name: European Style Input Terminal Block

Model: WDDZ-F043-08-N/WDDZ-F063-08-N

WDDZ-F083-08-N/WDDZ-F103-08-N

1.European Style Input Terminal Block ensuring firm wiring and strong vibration resistance for long-term industrial use.

2.European Style Input Terminal Block features modular serial design with models from F043 to F103, covering 8-channel and more to match PLC and IO modules of different points, meeting various project demands.

3. N model fits NPN control signals, perfectly compatible with Panasonic, Mitsubishi, Omron and other Japanese PLCs. Standard 35mm DIN rail mounting enables quick installation and easy maintenance.

4.It supports dual signal adaptation, usable as input terminal block for sensors or output block for solenoid valves and indicators, serving as a universal PLC signal transfer module.

Main purpose

1. Core Accessory for PLC Signal Transfer

A bridge between PLC and on-site devices, converting PLC's MIL/pin header interface to European terminals, a standard control cabinet accessory.

2. Standardized Control Cabinet Wiring

Replaces traditional fly wire connection, ensuring neat wiring, reducing faults and wiring errors, and improving efficiency.

3. Wide Automation Scene Adaptation

Technical parameter

Model	Wddz-f043-08-n

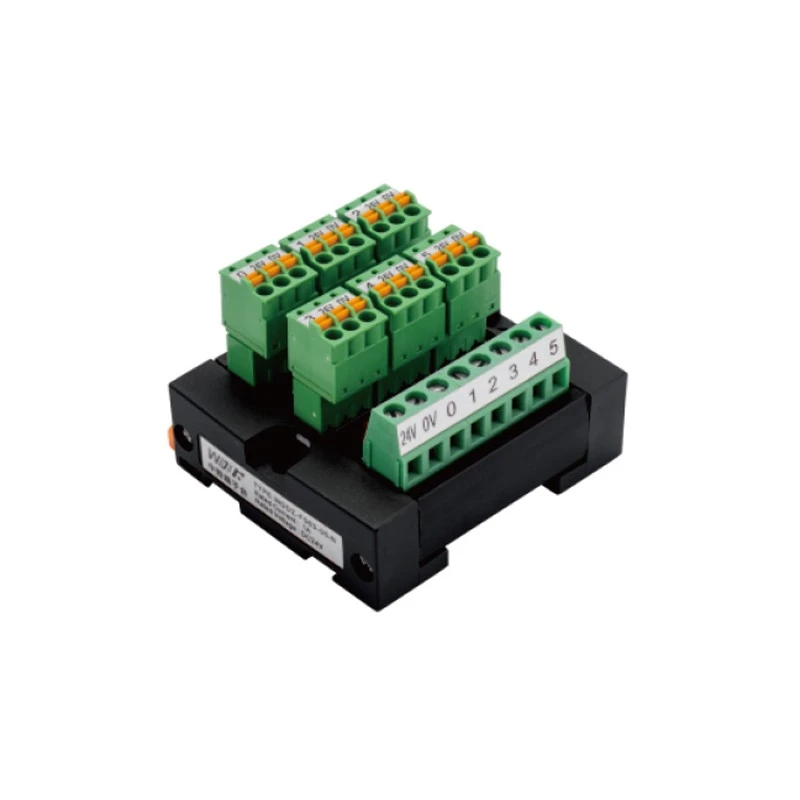

	Wddz-f063-08-n
	Wddz-f083-08-n
	Wddz-f103-08-n

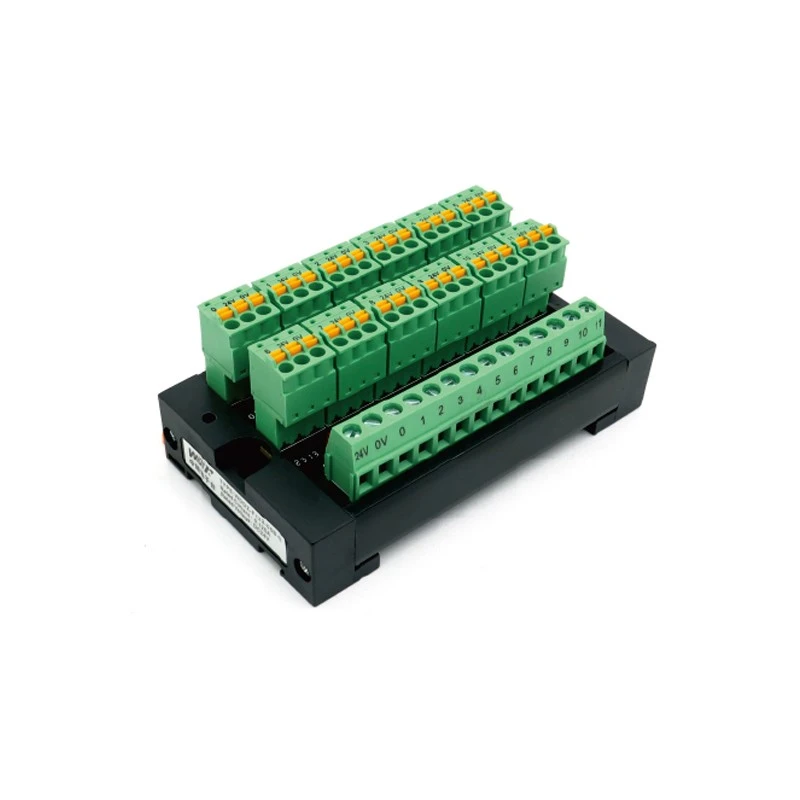

	Wddz-f123-08-n
Conductor wire cross-section	1.5 mm² / awg 16
Attestation	Rohs,ccc,iso：9001,ce
Allowable current	1a
Allowable voltage	Dc24v
Output	Optical switches, push-button switches, fiber optic sensors (di digital input signals)
Output	Electromagnetic valve, indicator light (do digital output load)
Rated voltage/current	Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a
Working temperature	-10°c to +60°c (standard environment inside industrial cabinets)
Shell material	Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance)

Technical parameter

Model	Wddz-f043-n-10
	Wddz-f063-n-10
	Wddz-f083-n-10

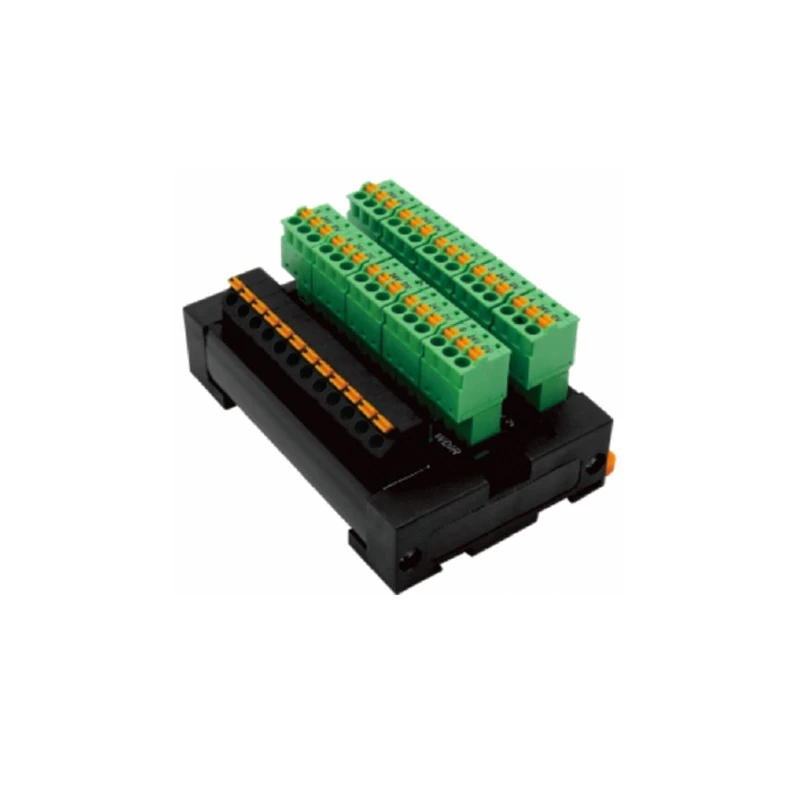

	Wddz-f103-n-10
Conductor wire cross-section	1.5 mm² / awg 16
Attestation	Rohs,ccc,iso：9001,ce
Allowable current	1a
Allowable voltage	Dc24v
Output	Optical switches, push-button switches, fiber optic sensors (di digital input signals)
Output	Electromagnetic valve, indicator light (do digital output load)
Rated voltage/current	Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a
Working temperature	-10°c to +60°c (standard environment inside industrial cabinets)
Shell material	Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance)

Technical parameter

Model	Wddz-f043-n-12

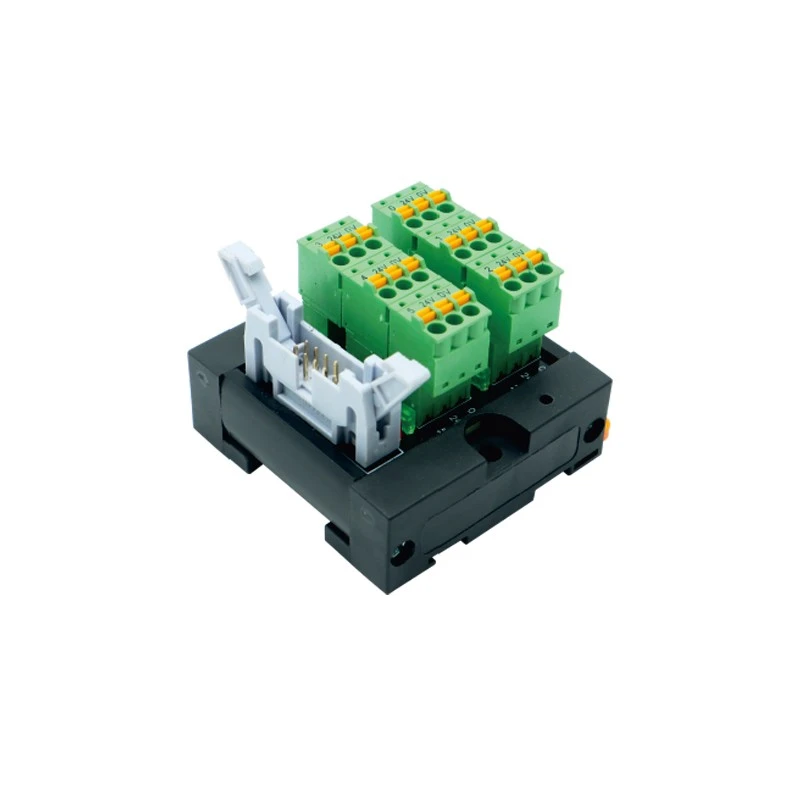

	Wddz-f063-n-12

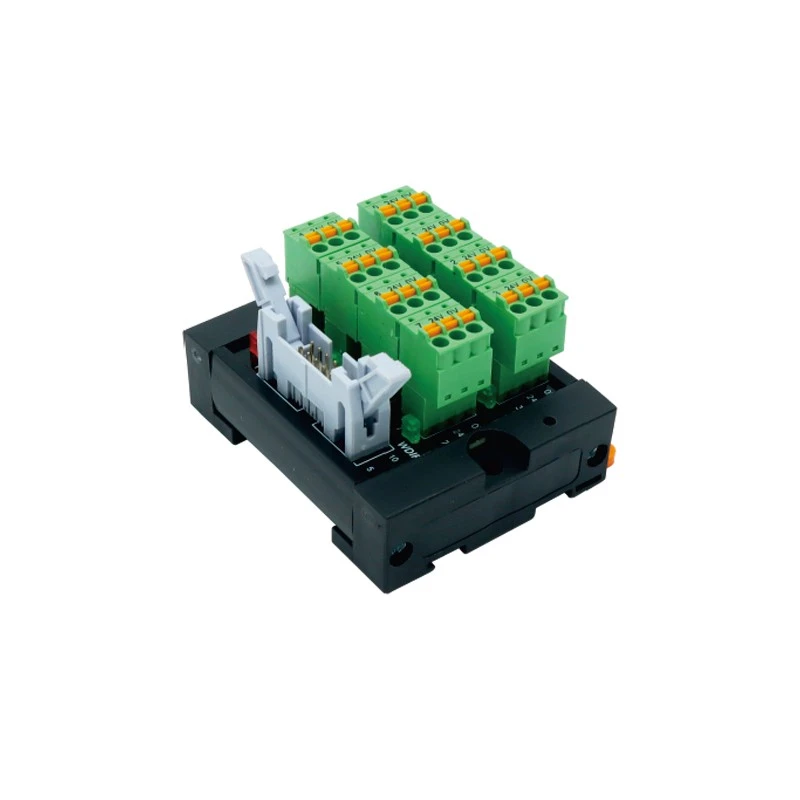

	Wddz-f083-n-12
	Wddz-f103-n-12
Conductor wire cross-section	1.5 mm² / awg 16
Attestation	Rohs,ccc,iso：9001,ce
Allowable current	1a
Allowable voltage	Dc24v
Output	Optical switches, push-button switches, fiber optic sensors (di digital input signals)
Output	Electromagnetic valve, indicator light (do digital output load)
Rated voltage/current	Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a
Working temperature	-10°c to +60°c (standard environment inside industrial cabinets)
Shell material	Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance)
