Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of mil connector terminal block in China. With abundant experience, we warmly welcome you to buy the newest mil connector terminal block from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product advantages

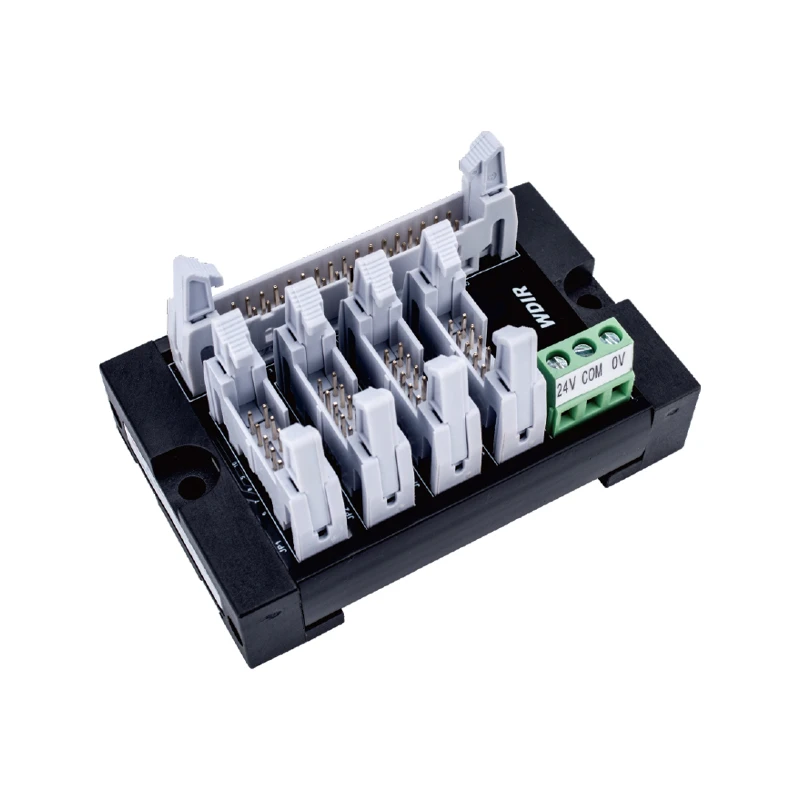

1.MIL connector terminal block features integrated European MIL connector for direct plug connection with PLC, servo drive and other equipment. MIL connector terminal block omits intermediate soldering and greatly improves on-site wiring efficiency.
2.Built-in 24V/COM/0V power terminals realize power and signal integrated distribution, directly supplying power to sensors and modules without extra power wiring, simplifying control cabinet layout.
3.Compact DIN rail mounting design fits most automation cabinets. It supports multi-circuit signal transfer for 10-core MIL connectors, converting multi-core signals into independent terminals for easy debugging and maintenance.
4.Made of flame-retardant insulation material with standard screw wiring, it is shockproof and anti-loosening, ensuring stable long-term operation in industrial scenarios.
Main purpose
1. Signal transfer and expansion for PLC/IO modules in industrial automation control cabinets
2. Distribution of control signals (pulse, direction, enable) for servo and stepper drive systems
3. Centralized collection and distribution of IO signals for non-standard automation equipment and industrial robots
4. Temporary signal testing and transfer for exhibition and on-site commissioning scenarios
Technical parameter
|
Model |
Wddz-061 |
|
Conductor wire cross-section |
0.2-2.5mm² |
|
Attestation |
Rohs,ccc,iso：9001,ce |
|
Allowable current |
1a |
|
Allowable voltage |
Dc24v |
|
Interface type |
The mil connector adapter (european connector) supports multi-core signal conversion. |
|
Adaptive guide rail |
Standard din 35 mm rail installation (general-purpose for industrial control cabinets) |
|
Terminals for power supplies |
Equipped with a 24v/com/ov power distribution terminal for supplying power to downstream modules. |
|
Applicable wire diameter |
Single or multi-strand wires, typically supporting cross-sectional areas of 0.2 to 2.5 mm² (awg 24 to awg 16). |
|
Rated voltage/current |
Standard industrial terminal block specifications: Rated voltage 0–48 vdc (compatible with plc signals), single-channel rated current approximately 1 a |
|
Levels of protection |
Ip20 (for use inside control cabinets; prevents finger contact) |
|
Shell material |
Flame-retardant engineering plastic (typically pa66, with v0-grade flame retardancy and high-temperature resistance) |
