Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of 4 position signal junction box in China. With abundant experience, we warmly welcome you to buy the newest 4 position signal junction box from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product advantages

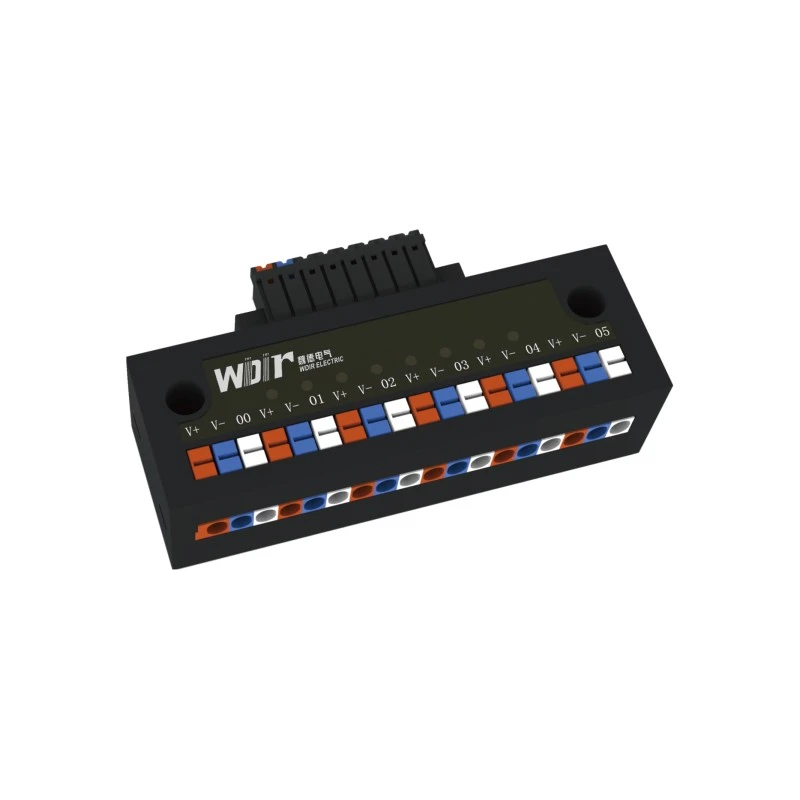

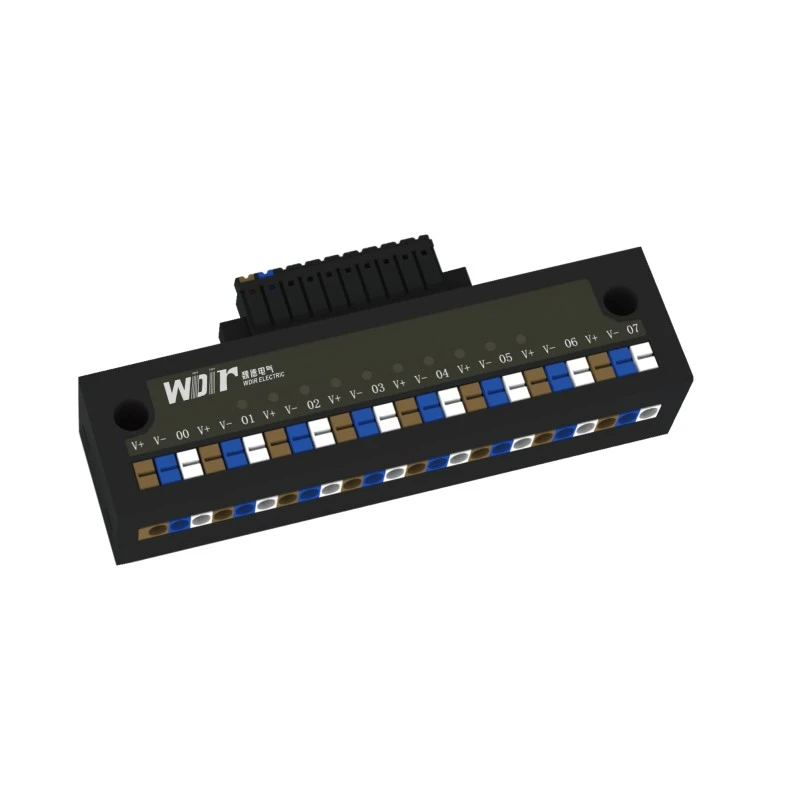

Model: HT9604A1/HT9604C1/HT9604A2/HT9604C2 HT9606A1/HT9606C1/HT9606A2/HT9606C2
HT9608A1/HT9608C1/HT9608A2/HT9608C2

4 position signal junction box Integrated wiring eliminates messy cables. 4 position signal junction box gathers scattered sensor signals into one unit and transmits uniformly via bus or cable, greatly reducing on-site wiring work, connection errors and simplifying later maintenance.

4 position signal junction box features wide compatibility with both NPN and PNP sensor types. Terminal colors match sensor wire colors for easy connection, friendly even for new operators.

Built-in LED indicators clearly show power and signal status, enabling fast on-site debugging and troubleshooting.

Adopting flame-retardant engineering plastic housing, it reaches IP65/IP67 protection grade. With vibration and interference resistance, it suits harsh industrial workshop and equipment environments.

Compact size allows flexible installation via DIN rail or screws. It saves space and can be easily mounted in control cabinets or automated equipment.

Main purpose

1. Centralize signal transfer for photoelectric sensors, proximity sensors, magnetic switches and other sensors on automation equipment.

2. Reduce cable quantity between control cabinets and on-site equipment, and simplify wiring layout.

3. Facilitate later maintenance, no need to check scattered sensor wiring one by one.

Technical parameter

		Number of digits	Npn/pnp
Model	Ht9604a1/ht9604c1	4 digits	Npn
	Ht9604a2/ht9604c2	4 digits	Pnp
	Ht9606a1/ht9606c1	6 digits	Npn
	Ht9606a2/ht9608c2	6 digits	Pnp
	Ht9608a1/ht9608c1	8 bits	Npn
	Ht9608a2/ht9608c2	8 bits	Pnp
Attestation	Rohs,ccc,iso：9001,ce
Model a/c represents	Ht9604a1/ht9604c1 (the suffixes a/c represent different functional versions, such as with/without signal isolation and different output types)
Number of channels	4-channel signal input (scalable to 6/8 bits; refer to the size diagram for the 6-bit model)
Rated voltage	Industrial standard dc 24v power supply (compatible with the vast majority of plc/sensor power systems)
Signal type	Digital switch signal (compatible with npn/pnp sensors)
Mode of connection	Duckleash/screw-type terminals that allow direct crimping of sensor cables without requiring additional connectors.
Work environment	The temperature typically ranges from-10°c to +55°c, with humidity ≤90% rh (no condensation).
