Name: PLC AC Amplifier Board
Model: WDGT-2PAC/ WDGT-4PAC/ WDGT-8PAC
PLC AC Amplifier Board Universal InputUniversal input matches common NPN/PNP output signals of PLC and controllers. No need to distinguish high and low levels, ensuring strong adaptability.
· PLC AC Amplifier Board Long Lifespan & Maintenance FreeAdopting thyristor and optocoupler non-contact structure, it generates no mechanical sparks or contact wear compared with traditional electromagnetic relays. It enjoys a much longer service life under standard working conditions.
· High Safety & Low InterferenceNo electric arcs or electromagnetic interference caused by mechanical actions. It will not interfere with PLC host and peripheral equipment, and effectively prevents contact corrosion and adhesion for higher system stability.
· · High Frequency ResponseIt features far higher switching frequency than ordinary electromagnetic relays, perfectly suitable for scenarios requiring fast on-off control.
· · Easy InstallationEquipped with screw-type terminal blocks and rail mounting base, it is compatible with standard terminals and rails in electrical cabinets. Wiring and daily maintenance are simple and convenient.
Main purpose
PLC AC Amplifier Board As a signal relay amplification module, it transfers weak output signals from PLC to drive loads such as solenoid valves, contactor coils, indicator lights, and small DC motors.
Applied to industrial automation scenarios such as injection molding machinery, hydraulic equipment, woodworking machinery, and automated assembly lines.
Realize centralized control of multiple loads and overload short circuit protection, adapt to the entire control system of factory automation, and improve the stability and service life of equipment operation.
Technical parameter
|
Model |
WDGT-2PAC/WDGT-4PAC/WDGT-8PAC |
|
|
Wire diameter |
1.5 mm² / AWG 16 |
|
|
Attestation |
RoHS,CCC,ISO：9001,CE |
|
|
Incoming signal |
supply current |
No independent power supply required |
|
input voltage |
12VVDC-24VDC |
|
|
drive current |
≧5ma |
|
|
response time |
≤0.2ms |
|
|
switching frequency |
5K HZ |
|
|
Output |
output voltage |
AC30-220V (depending on the output common terminal LIN) |
|
rated current |
2A |
|
|
Protect |
demultiplex |
Optical coupling isolation |
|
blown fuse |
short-circuit protection |
|
|
RC return circuit |
Rapid Current Protection |
|
|
working temperature |
-20°C～+70°C |
|
|
life length |
10 million operations or 1 million hours of continuous operation |
|
|
storage temperature |
-40°C～+85°C |
|
|
way to install |
TS3/7.5/NS36/NS32S standard card rail |
|

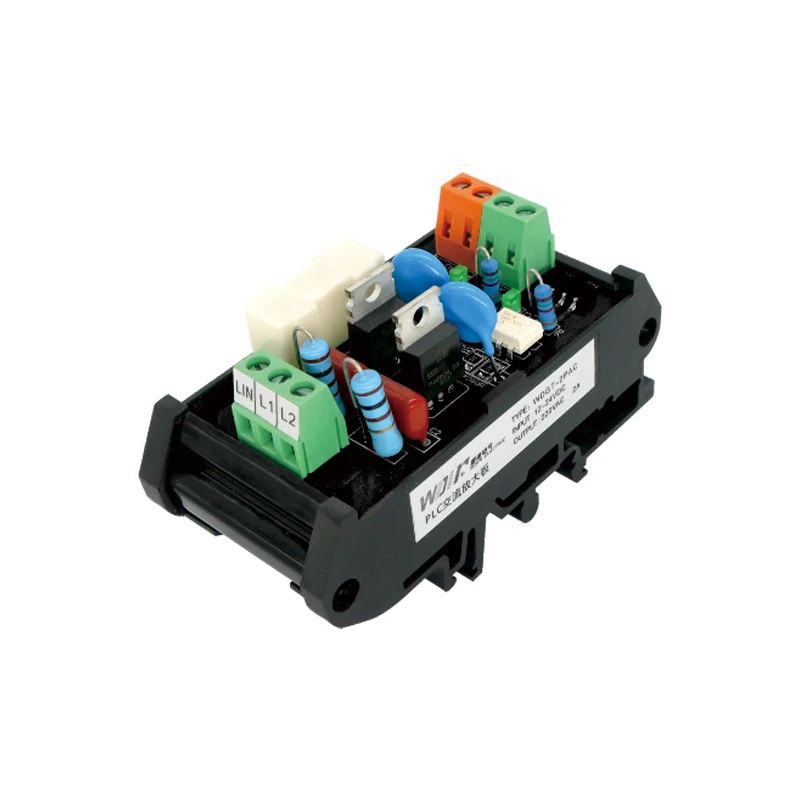

WDGT-2PAC

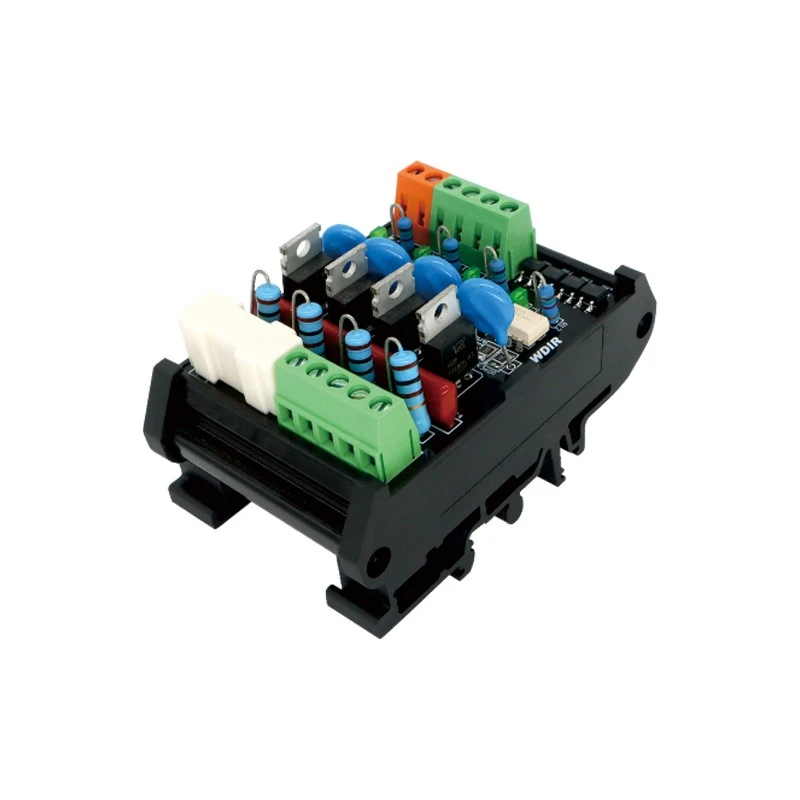

WDGT-4PAC

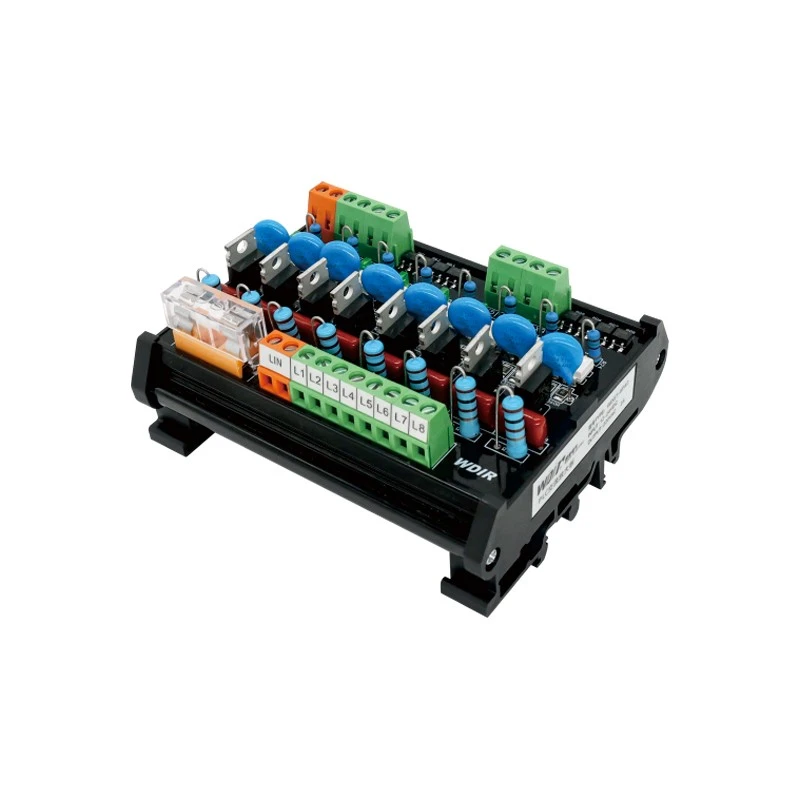

WDGT-8PAC
