Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of plc fuse dc amplifier board in China. With abundant experience, we warmly welcome you to buy the newest plc fuse dc amplifier board from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product Details

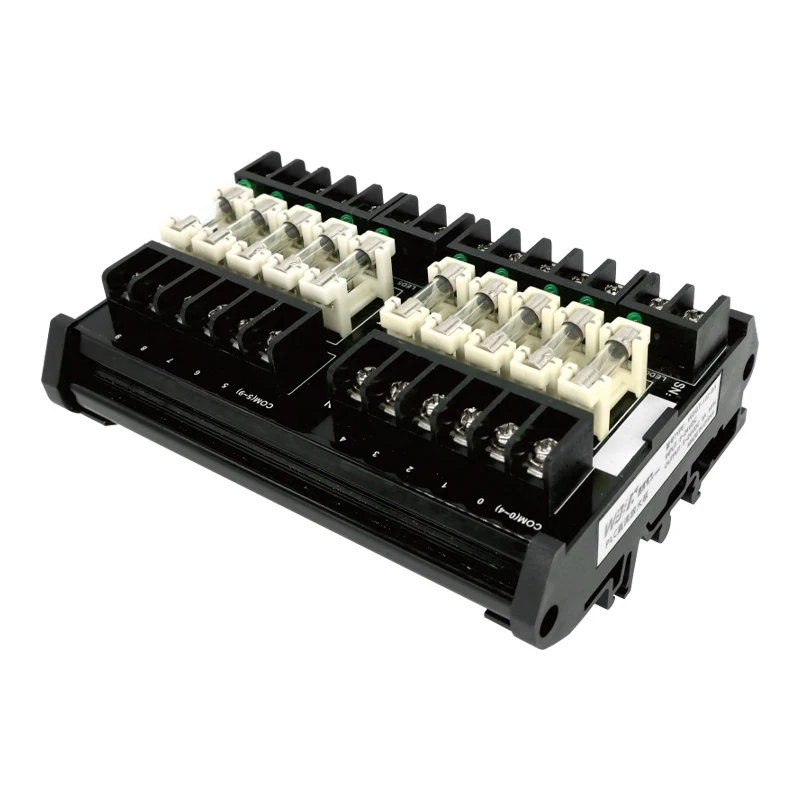

Name: PLC Fuse DC Amplifier Board
Model: WDGT-102-BX
Current amplification, strong load capacity
PLC Fuse DC Amplifier Board
Native output current of PLC Fuse DC Amplifier Board is small, making it difficult to drive high-power devices. PLC Fuse DC Amplifier Board amplifier board can amplify weak current control signals, upgrade output current, easily drive various DC high current loads, and solve the pain point of insufficient PLC load.
Double protection, higher security
PLC Fuse DC Amplifier Board Adopting a dual protection design of photoelectric isolation and independent fuses. Can effectively isolate surges and electromagnetic interference, avoiding signal misoperation; When encountering short circuits or overcurrent faults, the fuse quickly melts, isolating the faulty circuit, providing comprehensive protection for PLC ports, and reducing equipment maintenance costs.
Stable performance and good anti-interference ability
PLC Fuse DC Amplifier Board photoelectric isolation structure isolates strong and weak electricity, blocks external high voltage and clutter interference, ensures more stable operation of the control system, and reduces on-site equipment failure and error reporting.
Strong universality and easy installation
Standard modular design, compatible with various industrial control equipment such as PLC and microcontroller, with wide compatibility, simple wiring, and convenient cabinet integration and later transformation and upgrading.
Application
As a signal relay amplification module, it transfers weak output signals from PLC to drive loads such as solenoid valves, contactor coils, indicator lights, and small DC motors.
Applied to industrial automation scenarios such as injection molding machinery, hydraulic equipment, woodworking machinery, and automated assembly lines.
Realize centralized control of multiple loads and overload short circuit protection, adapt to the entire control system of factory automation, and improve the stability and service life of equipment operation.
Technical parameter
|
Model |
WDGT-102-BX |
||||
|
Wire diameter |
1.5 mm² / AWG 16 |
||||
|
Attestation |
RoHS,CCC,ISO：9001,CE |
||||
|
Lmport |
voltage range |
5～24VDC |
Output |
Contact Composition |
MOS Guan |
|
current range |
5mA～30mA |
rated voltage |
5～24VDC |
||
|
operation voltage |
Below 16.8 |
rated current |
2A |
||
|
release voltage |
Above 3.6V |
Instantaneous maximum current |
2.5A |
||
|
incoming signal |
Compatible with NPN and PNP |
Maximum switching voltage |
30VDC |
||
|
Action time (rated voltage) |
Less than 1 ms |
||||
|
Reduction time (rated voltage) |
Less than 1 ms |
||||
|
Insulation Voltage |
2500Vrms |
||||
|
output signal |
NPN |
||||
