Relay Connection Wire

Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of relay connection wire in China. With abundant experience, we warmly welcome you to buy the newest relay connection wire from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product advantages

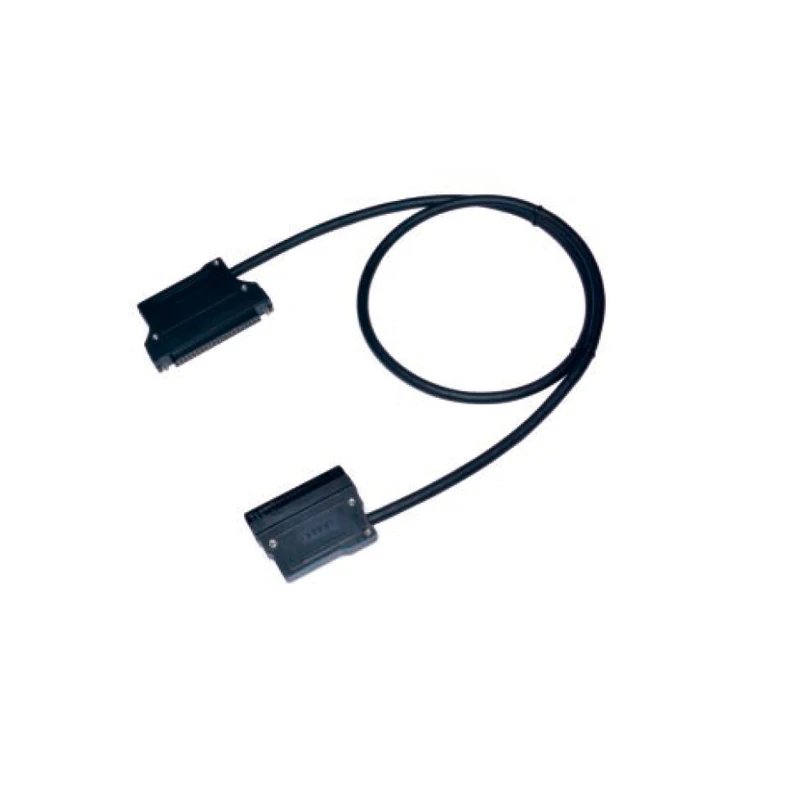

FCN to MIL Relay connection wire is a standardized connection harness specifically used for interface conversion in industrial automation control systems. One end is compatible with FCN square multi pin connectors, and the other end is compatible with D-sub interfaces that comply with MIL specifications. FCN to MIL Relay connection wire core function is to directly connect signals between different brands of PLCs, terminal blocks, and sensors without the need for additional conversion. Currently, it is widely used in I/O signal transmission scenarios in industrial control cabinets. Its core features are as follows:

FCN to MIL Relay connection wire Strong interface adaptability and compatibility with mainstream industrial control equipment: specifically adapted to Omron FCN interface terminal block and Mitsubishi MIL interface PLC, completing one-to-one hard wiring mapping according to standard pin definitions, directly compatible with most mainstream brand PLC control modules, no additional customization required, and can be directly wired and installed after procurement. Supports common core specifications such as 30P and 40P, and can provide single head and double head finished cables to meet different wiring and installation needs.

FCN to MIL Relay connection wire Signal transmission is stable and reliable, with excellent anti-interference ability: most models come with a shielding layer structure, which can effectively block electromagnetic interference in industrial sites and ensure stable 24V DC digital signal transmission without packet loss; The product strictly controls the upper limit of the standard length (usually up to 2m), avoiding signal delay and misjudgment problems caused by long-distance transmission, and adapting to scenarios with high signal integrity requirements such as high-speed counting modules. Using small-diameter high flexible conductors combined with wear-resistant outer covers, it has excellent bending resistance and can be repeatedly bent without damaging the core wire, adapting to the mobile wiring needs inside the cabinet.

FCN to MIL Relay connection wire Easy installation and maintenance, suitable for compact cabinet layout: pre installed with matching plug housings at the factory, the overall structure is neat, and during installation, only the interface needs to be directly aligned and locked to complete the wiring, without the need for on-site wire stripping and crimping, greatly improving wiring efficiency; The standard straight shielded joint structure is compact and does not occupy too much cabinet space, suitable for the layout requirements of high-density modular control cabinets.

Strong compliance and environmental adaptability: Most cable bodies comply with UL specifications, and the insulation coating has excellent flame retardancy and aging resistance, which can withstand a wide temperature range of -20 ℃~80 ℃ in industrial scenarios; The interface locking structure is firm and can withstand long-term vibration of the equipment without loosening, meeting the long-term stable operation requirements of industrial sites. If it is a radio frequency FCN to MIL cable, it also meets the military specification requirements of MIL-C-17, has low loss and high stability characteristics, and can adapt to the transmission needs of high-frequency radio frequency signals.

Product advantages：

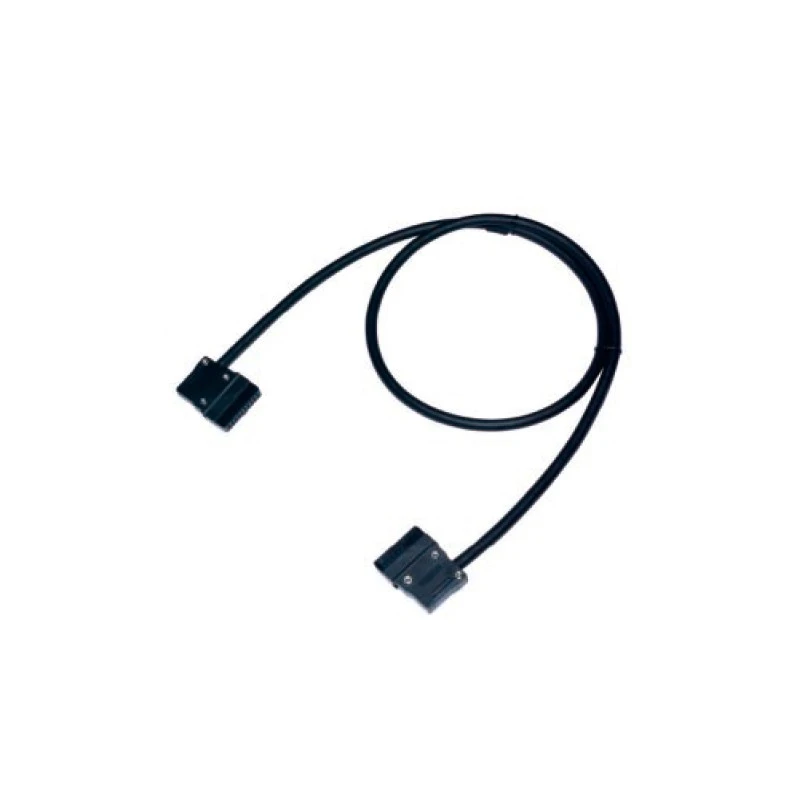

They are designed for NX series I/O ports, which can achieve full plug-in connection between PLC and signal terminals, effectively preventing wiring errors, minimizing the probability of wiring errors, and improving on-site debugging efficiency and system reliability.

Main purpose：

Our products are widely applied in a full range of industrial electrical and automation components, including terminal blocks, relay modules, solid state relays, cables and connectors.

The product lineup also covers heavy-duty connectors, switching power supplies, bus IO modules and distributors. In addition, it is compatible with control cabinet accessories such as suspension control boxes, cable entry plates, junction boxes and electrical cabinets, as well as indicator lights, push buttons, alarm lights and filters for industrial wiring systems.

Product advantages：

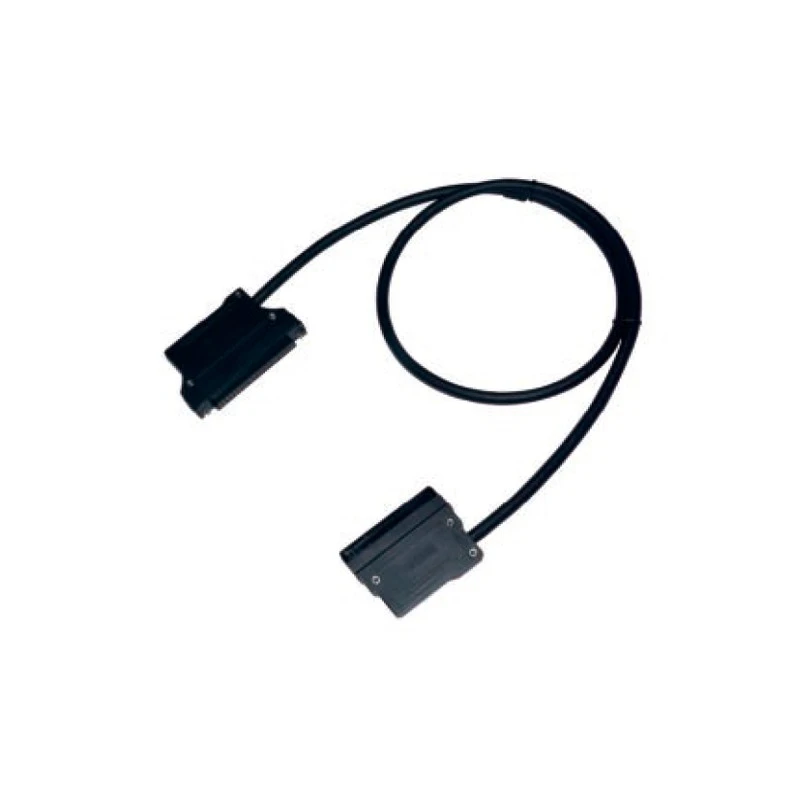

Design for Schneider series I/O ports, which can achieve full plug-in connection between PLC and signal terminals, effectively preventing wiring errors, minimizing the probability of wiring errors, and improving on-site debugging efficiency and system reliability.

Main purpose：

Our products are widely applied in a full range of industrial electrical and automation components, including terminal blocks, relay modules, solid state relays, cables and connectors.

The product lineup also covers heavy-duty connectors, switching power supplies, bus IO modules and distributors. In addition, it is compatible with control cabinet accessories such as suspension control boxes, cable entry plates, junction boxes and electrical cabinets, as well as indicator lights, push buttons, alarm lights and filters for industrial wiring systems.
