Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of relay connector wire in China. With abundant experience, we warmly welcome you to buy the newest relay connector wire from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product advantages

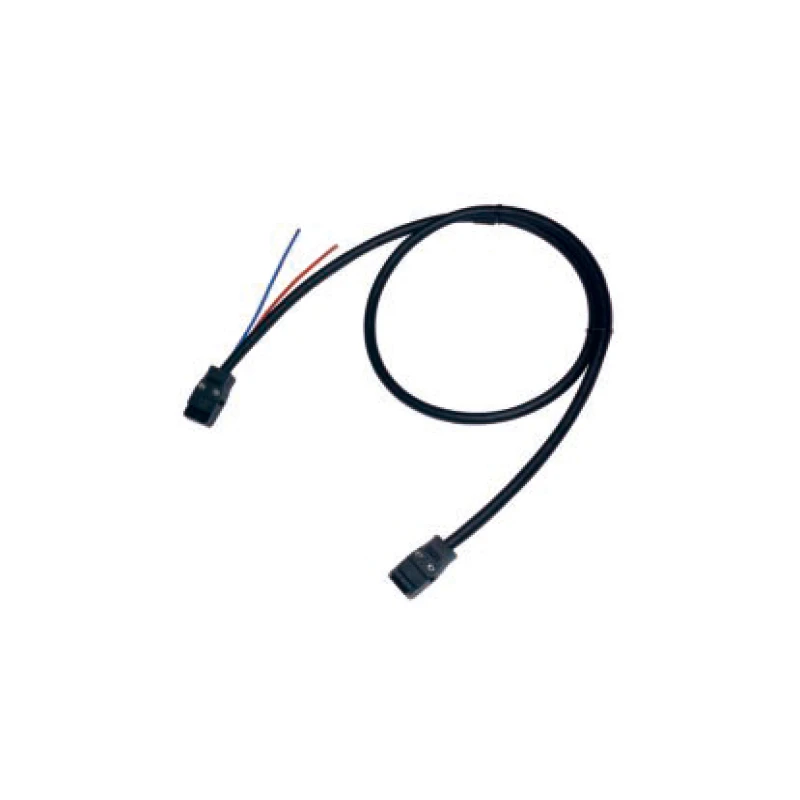

Name: Relay Connector wire
WX216-1/2/3-WX216-4/WX216-5

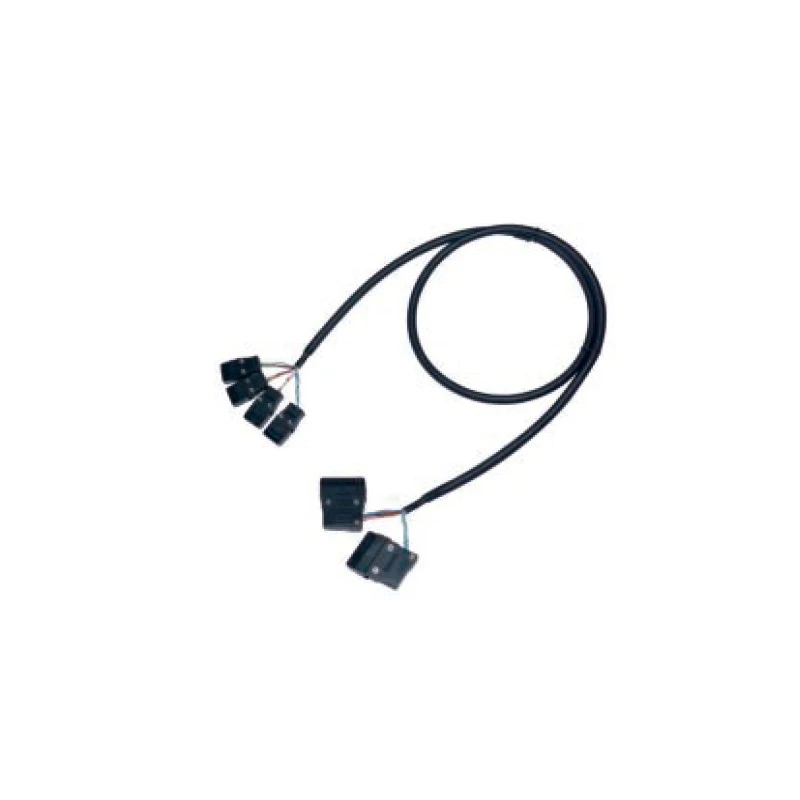

WX216-1~WX216-4 for Panasonic FPO/FP ∑ series Relay Connector wire, PLC I/O port design WX216-5 is designed for the CPU unit of Panasonic FPO series Relay Connector wire PLC, FPO series corresponding cables classifies the four interface signals of the CPU into 16 bit input/output two-way signals WX217-1~WX217-2 for Panasonic FP2/FP ∑ series, PLC I/O port design WX217-3~WX217-4 are designed for Panasonic FP2 series position control modules to minimize the probability of misconnection
Main purpose
FPO/FP∑ series corresponding Relay Connector wire widely applied in a full range of industrial electrical and automation components, including terminal blocks, relay modules, solid state relays, cables and connectors.
The product lineup also covers heavy-duty connectors, switching power supplies, bus IO modules and distributors. In addition, it is compatible with control cabinet accessories such as suspension control boxes, cable entry plates, junction boxes and electrical cabinets, as well as indicator lights, push buttons, alarm lights and filters for industrial wiring systems.
Technical parameter
|
Model |
Wx216-1/2/3-wx216-4/wx216-5 |
|
Conductor wire cross-section |
0.08mm² / awg 28 |
|
Attestation |
Rohs,ce |
|
Conductor composition |
7/0.127 |
|
Conductor material |
Annealed copper wire |
|
Insulation material |
Pe |
|
Core wire twisting |
Filling: Cotton thread; bandage: Paper tape |
|
The exterior is covered. |
Pvc |
|
Conductor impedance (20°c) |
Below 239 ω/kn |
|
Voltage withstand (in air) |
Ac500v/min |
|
Insulation resistance (20°c) |
Above 50 mω/kn |
WX217-1/WX217-2/WX217-3/WX217-4
Technical parameter
|
Model |
Wx217-1/wx217-2/wx217-3/wx217-4 |
|
Conductor wire cross-section |
0.08mm² / awg 28 |
|
Attestation |
Rohs,ce |
|
Conductor composition |
7/0.127 |
|
Conductor material |
Annealed copper wire |
|
Insulation material |
Pe |
|
Core wire twisting |
Filling: Cotton thread; bandage: Paper tape |
|
The exterior is covered. |
Pvc |
|
Conductor impedance (20°c) |
Below 239 ω/kn |
|
Voltage withstand (in air) |
Ac500v/min |
|
Insulation resistance (20°c) |
Above 50 mω/kn |
