Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of relay module wire harness in China. With abundant experience, we warmly welcome you to buy the newest relay module wire harness from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product advantages
Name: Relay module wire harness
Model: WX212-1/WX212-2/WX213-3
WX212-4/5/6/7/WX212-48/WX212-9
We also provide multiple model options for Q series corresponding Relay module wire harness adaptation:
WX212-1 Design for Q Series I/O Modules
WX212-2/WX212-3 Design for QD70P Position Control and Touch Module

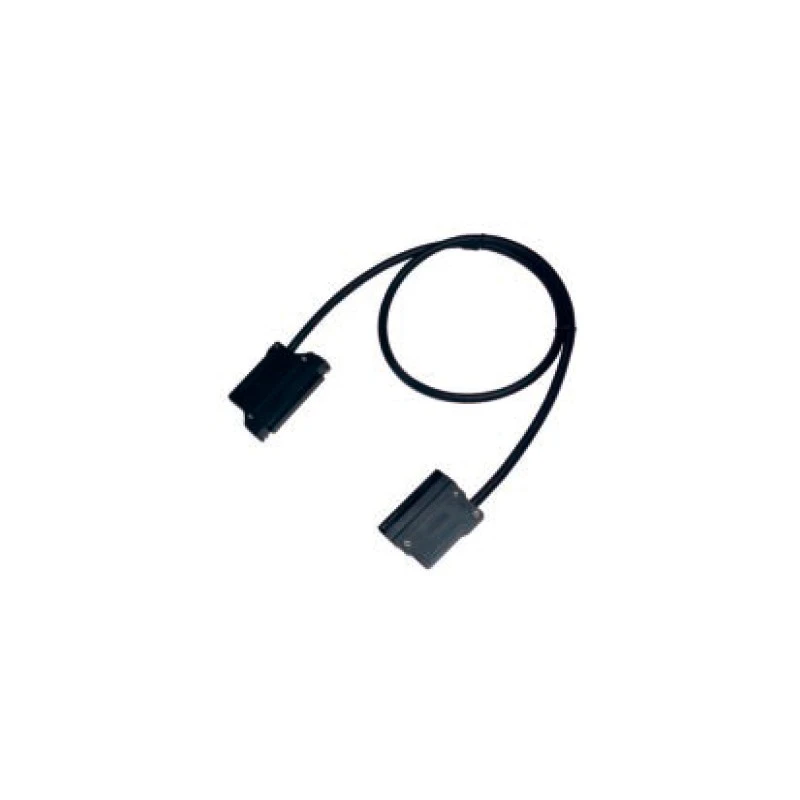

WX212-4~WX212-3 designed for QD75P position control module
Main purpose
Q series Relay module wire harness corresponding cable products are widely applied in a full range of industrial electrical and automation components, including terminal blocks, relay modules, solid state relays, cables and connectors.
The product lineup also covers heavy-duty connectors, switching power supplies, bus IO modules and distributors. In addition, it is compatible with control cabinet accessories such as suspension control boxes, cable entry plates, junction boxes and electrical cabinets, as well as indicator lights, push buttons, alarm lights and filters for industrial wiring systems.
Technical parameter
|
Model |
Wx212-1/wx212-2/wx213-3 Wx212-4/5/6/7/wx212-48/wx212-9 |
|
Conductor wire cross-section |
0.08mm² / awg 28 |
|
Attestation |
Rohs,ce |
|
Conductor composition |
7/0.127 |
|
Conductor material |
Annealed copper wire |
|
Insulation material |
Pe |
|
Core wire twisting |
Filling: Cotton thread; bandage: Paper tape |
|
The exterior is covered. |
Pvc |
|
Conductor impedance (20°c) |
Below 239 ω/kn |
|
Voltage withstand (in air) |
Ac500v/min |
|
Insulation resistance (20°c) |
Above 50 mω/kn |
Name:Mitsubishi FX series corresponding cable
Product advantages：
Mitsubishi FX series corresponding cable
We also offer multiple model options for Mitsubishi FX module adaptation:

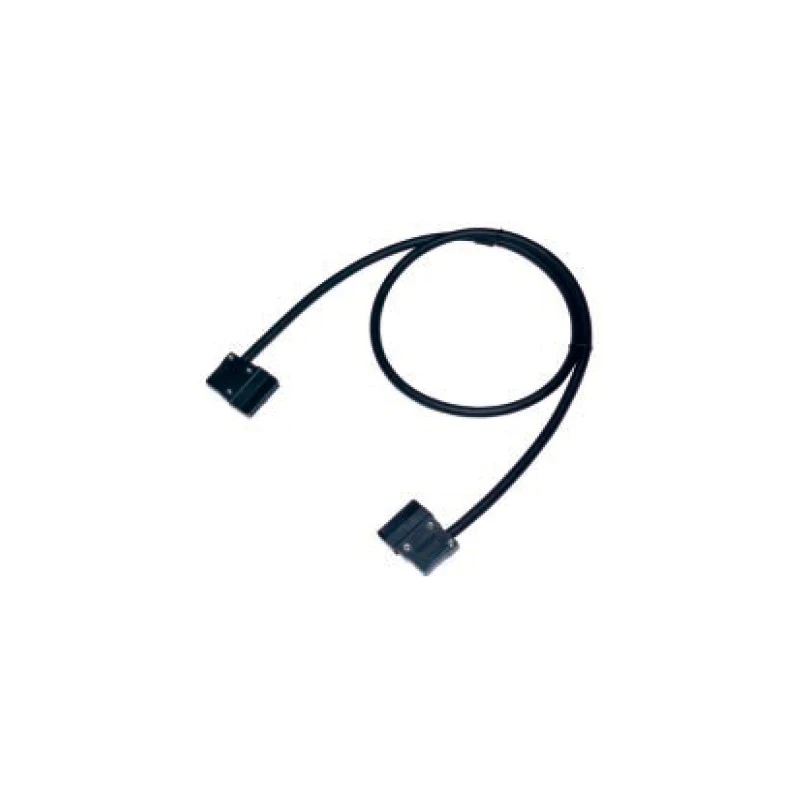

WX213-1/WX213-2 Design of I/O Ports for Mitsubishi FX Series PLC

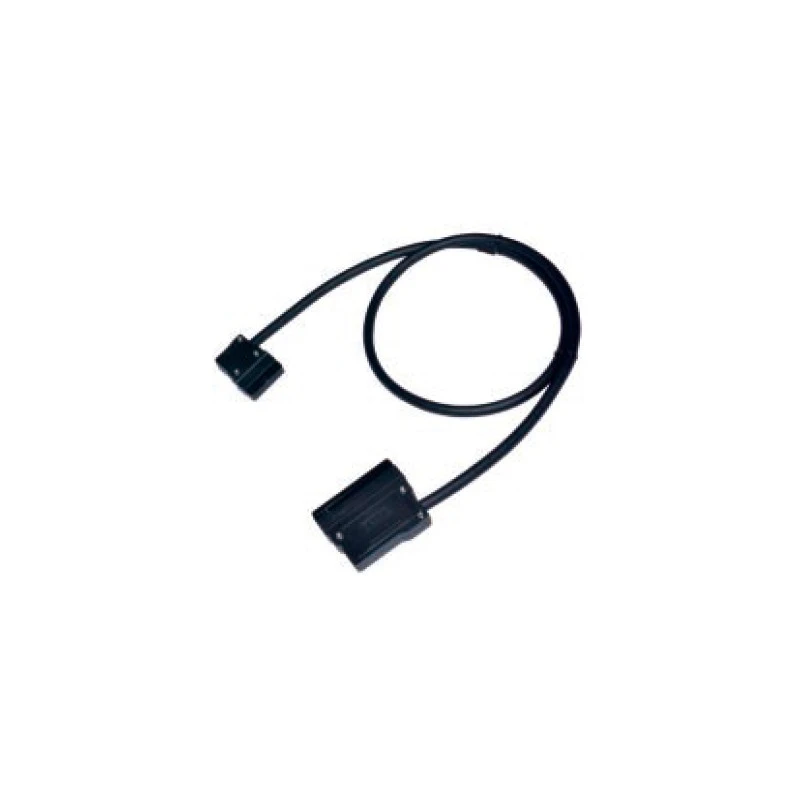

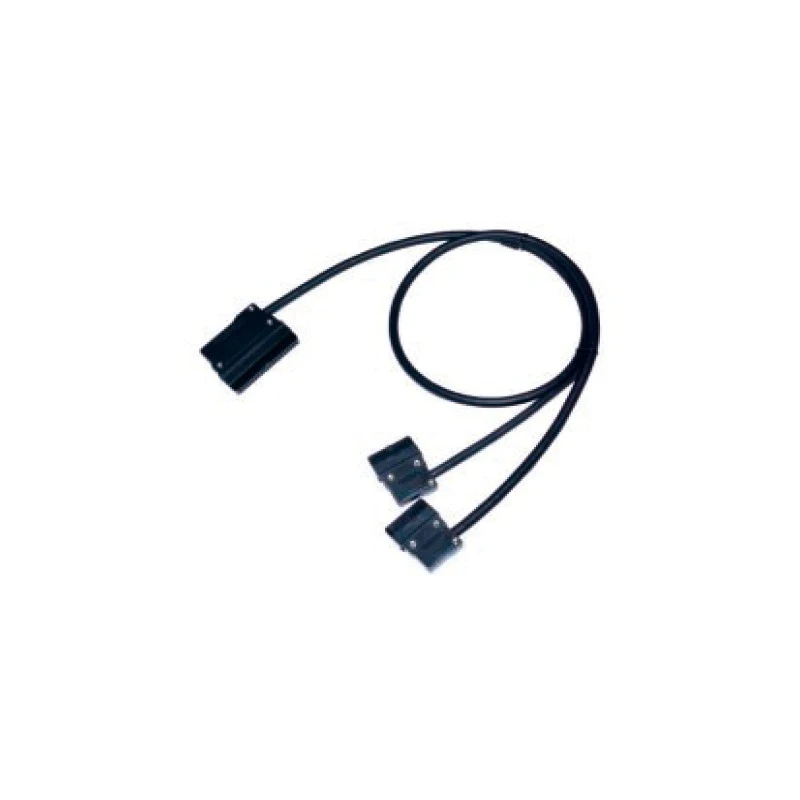

WX213-3/WX213-4/WX213-7 Designed for Mitsubishi FX-10GM Position Control Module

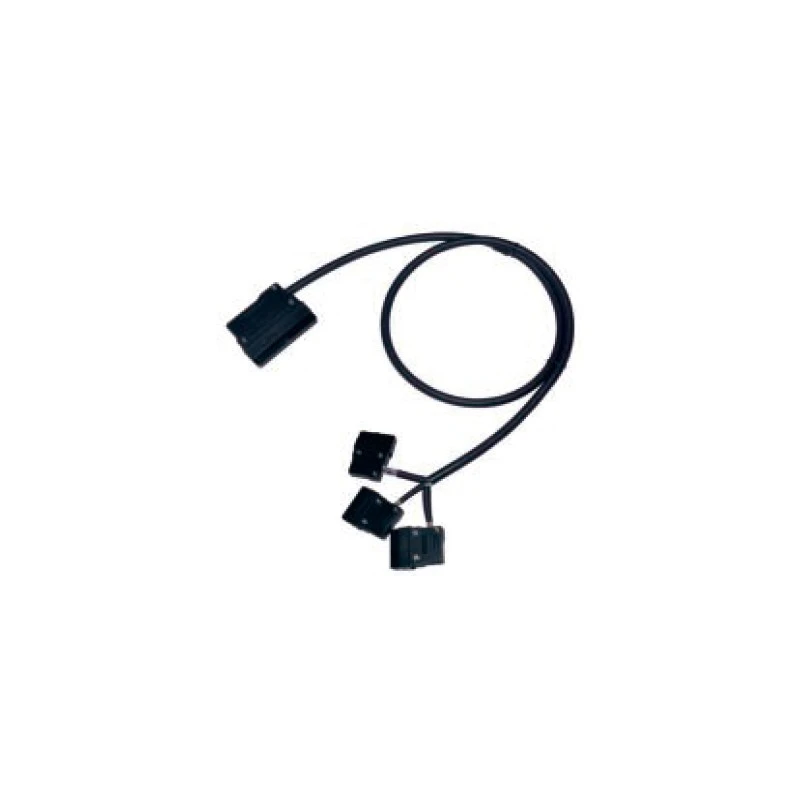

WX213-5~WX213-6 designed for Mitsubishi FX-20GM position control module
Main purpose：
Our products are widely applied in a full range of industrial electrical and automation components, including terminal blocks, relay modules, solid state relays, cables and connectors.
The product lineup also covers heavy-duty connectors, switching power supplies, bus IO modules and distributors. In addition, it is compatible with control cabinet accessories such as suspension control boxes, cable entry plates, junction boxes and electrical cabinets, as well as indicator lights, push buttons, alarm lights and filters for industrial wiring systems.
Technical parameter
|
Model |
Wx213-1/wx213-2/wx213-3/wx213-4 Wx213-5/wx213-6/wx213-7 |
|
Conductor wire cross-section |
0.08mm² / awg 28 |
|
Attestation |
Rohs,ce |
|
Conductor composition |
7/0.127 |
|
Conductor material |
Annealed copper wire |
|
Insulation material |
Pe |
|
Core wire twisting |
Filling: Cotton thread; bandage: Paper tape |
|
The exterior is covered. |
Pvc |
|
Conductor impedance (20°c) |
Below 239 ω/kn |
|
Voltage withstand (in air) |
Ac500v/min |
|
Insulation resistance (20°c) |
Above 50 mω/kn |
