Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of 19mm metal push button switch in China. With abundant experience, we warmly welcome you to buy the newest 19mm metal push button switch from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product advantages

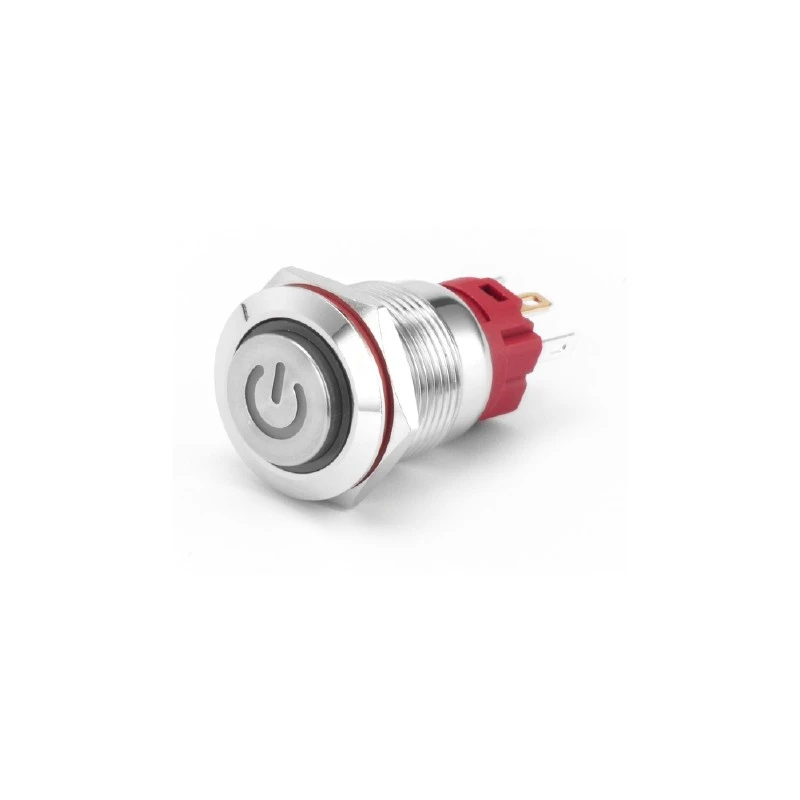

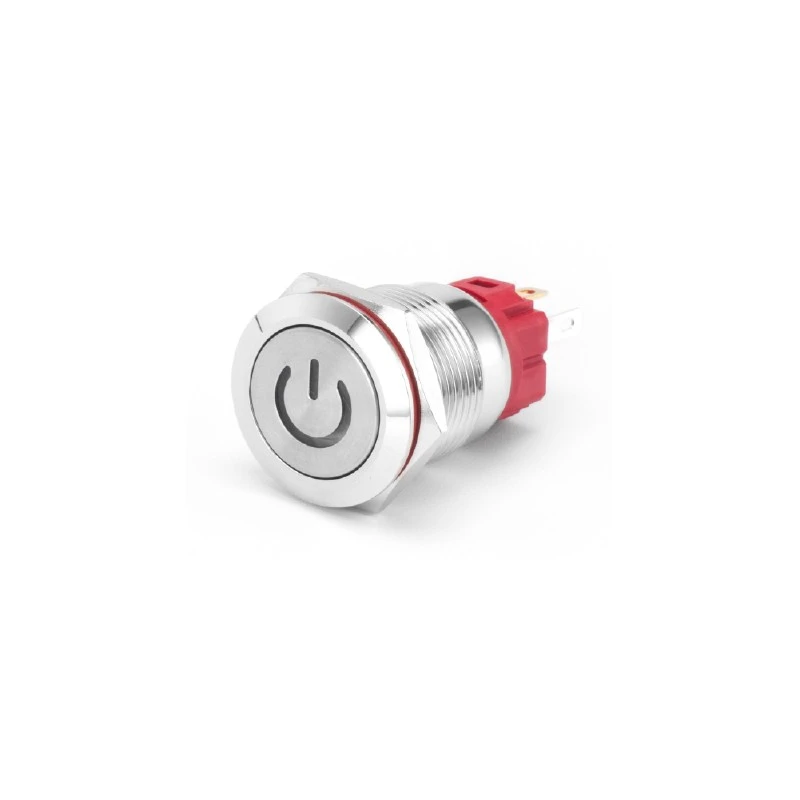

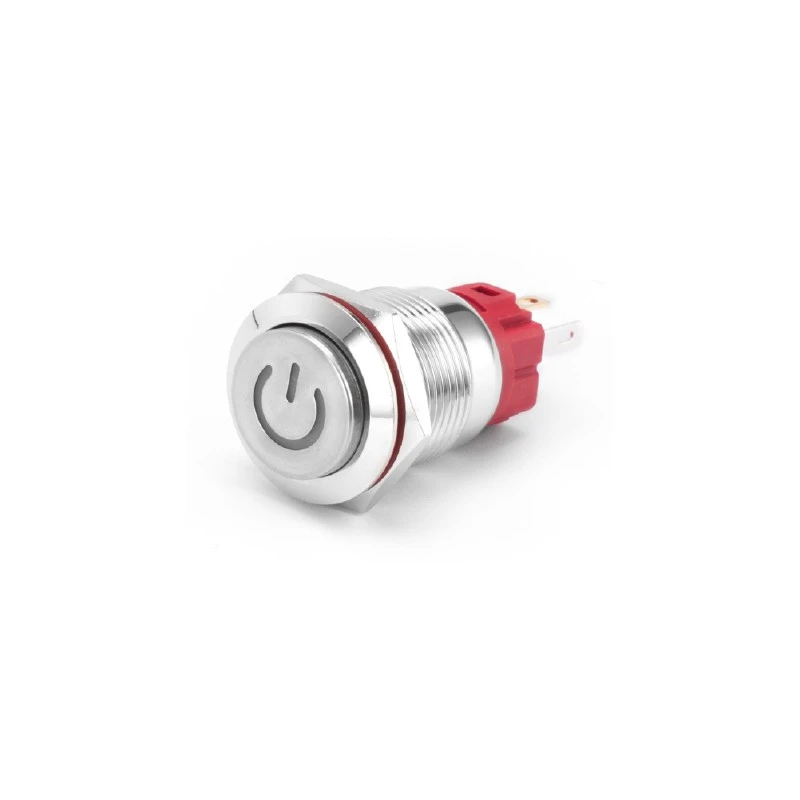

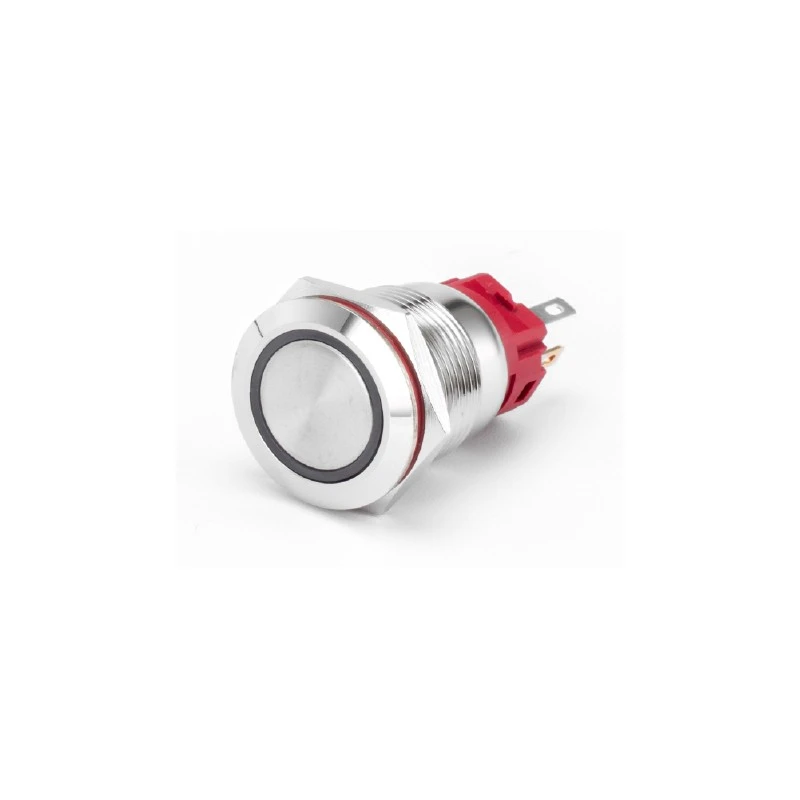

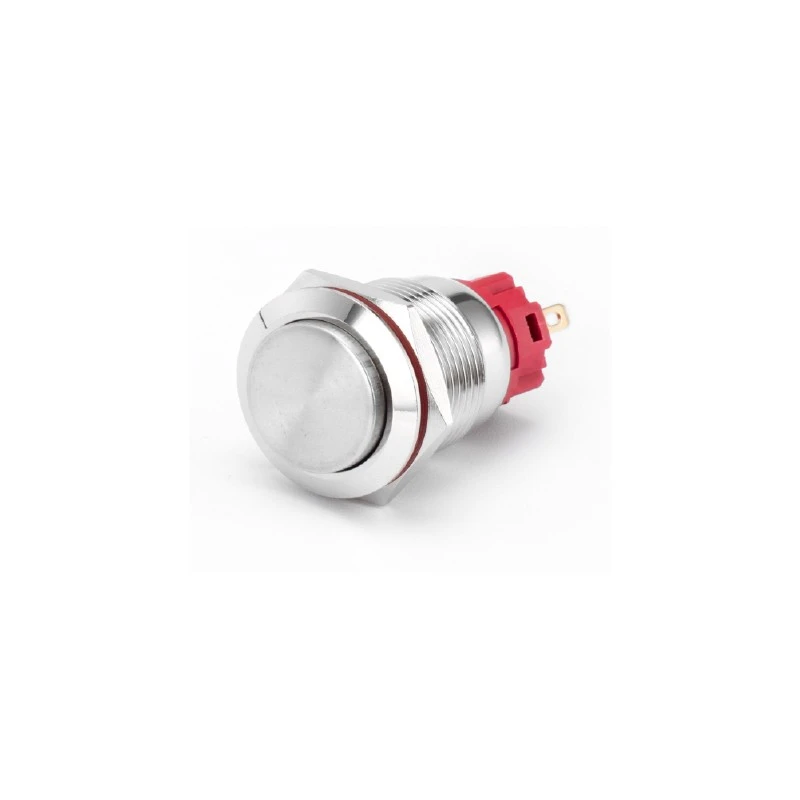

Name: 19mm metal push button switch
Model: WD710-19A
19mm metal push button switch shell is all made of 304 stainless steel material and is integrally formed. The surface is brushed or polished, with excellent wear and corrosion resistance. Under normal use, the warranty period can reach 3 years, and the mechanical and electrical life is much higher than that of ordinary plastic buttons. The protection level can reach IP65 or above, and it can work stably and reliably in humid environments, dusty workshops, or industrial sites with oil stains. 19mm metal push button switch wiring method supports multiple options such as welding, spring insertion, and screw crimping. The internal conductive components are made of high-purity copper material with stable conductivity.
Technical parameter
|
Product name |
Circular metal flat head button/high head button |
|
Enterprise code |
Wd710-19a |
|
Head code |
P-flat-head |
|
Contact |
11-(1no 1nc) 22-(2no 2nc) |
|
Operation |
F-momentary |
|
With lamp |
Blank-without lamp |
|
Color |
Red/blcak/green/yellow/white |
|
Voltage |
6v/24v/36v/48v/110v/220v |
|
Material |
S-stainless steel |
|
Connection method |
J-welding leg |
Switching rated load
|
Project |
Parameter |
|
||
|
UiRated insulation voltage Ui |
AC250V |
|||
|
Ith Heating current Ith |
3A |
|||
|
The rated vo ltage |
DC12VDC24VDC36VAC220V |
|||
|
Resistive load |
3 |
2 |
1.5 |
|
|
Inductive load |
1.2 |
0.8 |
0.6 |
|
