Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of mushroom metal button in China. With abundant experience, we warmly welcome you to buy the newest mushroom metal button from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product advantages
Name: mushroom Metal button
Model: WD710-16- /WD710-19-/WD710-22

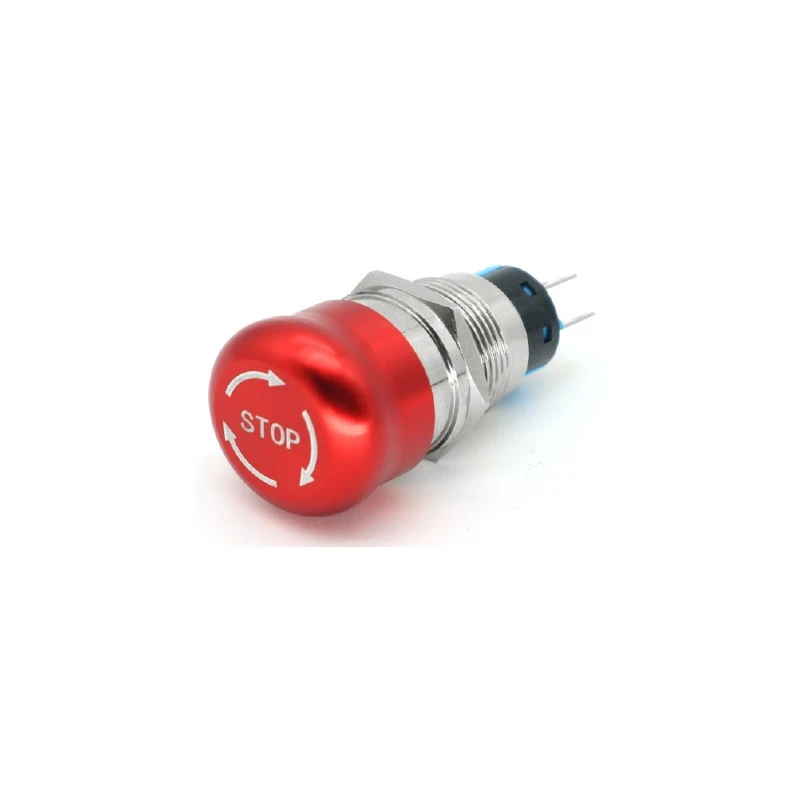

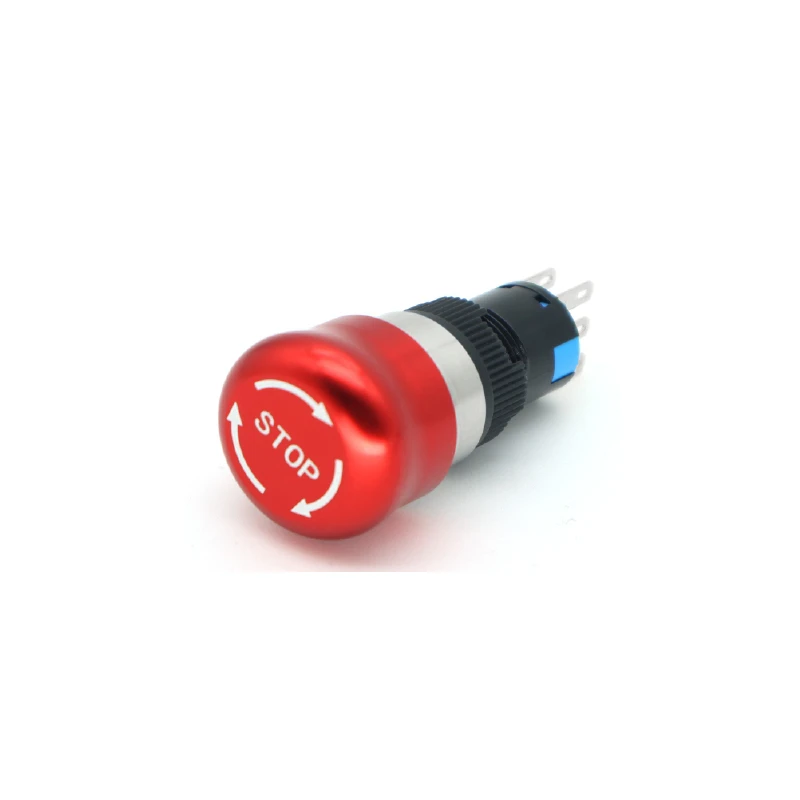

This emergency stop mushroom Metal button switch a prominent red mushroom head design with a "stop" symbol and arrow markings for resetting, making it easy to quickly identify and operate in complex work environments. It adopts a self-locking rotating reset structure, which can effectively prevent misoperation or accidental restart of the equipment, fully complying with safety standards. This mushroom Metal button switch is made of durable alumina material and chrome plated metal shell, which can effectively resist the effects of impact, corrosion, oil stains, dust, and moisture, thereby extending its service life. Its NC contact performance is reliable, and the coating quality is superior, ensuring good conductivity and long-term durability. This mushroom Metal button switch is suitable for standard size 16/19/22mm mounting holes and has IP65/IP67 waterproof and dustproof performance, making it very suitable for various harsh industrial environments and outdoor use scenarios.
Main purpose
These push buttons are widely used in diverse scenarios.
They are ideal for industrial automation devices, supporting start-stop operation, mode switching and emergency control for machine tools, control cabinets and production lines.
They are also applicable to consumer electronics, including power cabinets, charging piles and various instruments.
Featuring great vibration and temperature resistance, they fit perfectly for vehicle and engineering equipment control panels.
In addition, they work stably for access control systems, alarm devices and outdoor waterproof equipment.
Custom lamp colors and logos are available to meet personalized customized equipment and special scenario needs.
Technical parameters
|
Product Name |
Metal emergency stop mushroom button switch |
|
Enterprise code |
WD710-16- /WD710-19-/WD710-22- |
|
Head code |
Mushroom Head/Big Head |
|
Contact |
11-(1NO 1NC) |
|
Operationtype code |
ZS/ |
|
With lamp |
Blank-without lamp |
|
Color |
red |
|
Voltage |
3V-220V |
|
Foot position function |
Three legged/six legged |
|
Material |
S-Stainless steel |
|
Connection method |
J-Welding leg |
Switching rated load
|
Project |
Parameter |
|
||
|
UiRated insulation voltage Ui |
AC250V |
|||
|
Ith Heating current Ith |
3A |
|||
|
The rated vo ltage |
DC12VDC24VDC36VAC220V |
|||
|
Resistive load |
3 |
2 |
1.5 |
|
|
Inductive load |
1.2 |
0.8 |
0.6 |
|
