Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of screw terminal box in China. With abundant experience, we warmly welcome you to buy the newest screw terminal box from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product Details

JH1A Screw terminal box is a mainstream rail type screw crimping combination terminal block in China, belonging to the core model of JH1 series universal terminal blocks, mainly aimed at industrial low-voltage distribution and automation control cabinet wiring scenarios.

Screw terminal box rated working voltage can reach 660V, suitable for single/multi strand copper wires with a cross-section of 0.5~35mm ². The rated current covers 17.5A~125A, which can meet the connection requirements from small power signal circuits to high current power circuits. It supports card mounting on standard 35mm DIN rails and modular splicing to expand the number of circuits.

Features

Material and Safety: The insulation shell is made of PA66 flame-retardant engineering plastic, with a flame-retardant rating of UL 94 V-0. The conductive parts are made of high-density copper material to ensure stable and reliable conductivity;

Easy installation: adopting a screw direct pressure locking structure, wiring can be completed without special tools, compatible with universal guide rail installation, and can be compatible with mainstream UK series terminal accessories;

WUSLKG

Model Number	JH1A1.5
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/17.5A
Section	1.5
Length/Width/Height (mm)	L42.45/H37.2
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

JH1A-2.5

Model Number	JH1A-2.5
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/17.5A
Section	2.5
Length/Width/Height (mm)	L44.5/H40.2
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

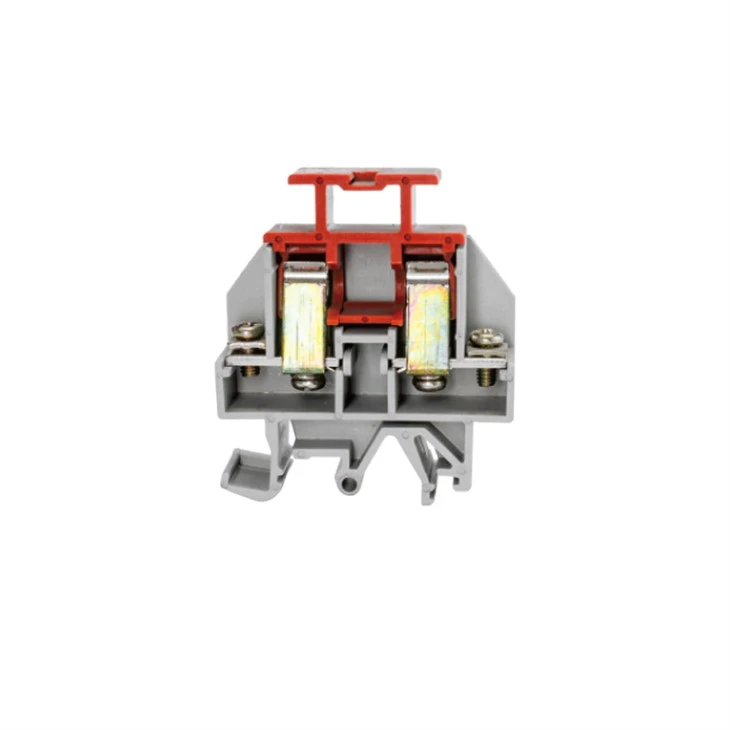

JH1A-2.5RD

Model Number	JH1A-2.5RD
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
on-link mode	Screw Connection
Rated voltage/current	500V/20A
Section	2.5
Length/Width/Height (mm)	L56.1/H61.5
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

JH1A-2.5S

Model Number	JH1A-2.5S
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/17.5A
Section	2.5
Length/Width/Height (mm)	L53.3/H69
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

JH1A-6

Model Number	JH1A-6
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/41A
Section	6
Length/Width/Height (mm)	L51/H43.1
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

JH1A-10

Model Number	JH1A-10
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/57A
Section	10
Length/Width/Height (mm)	L50.85/H43
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

JH1A-16

Model Number	JH1A-16
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/76A
Section	16
Length/Width/Height (mm)	L50.9/H43.1
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

JH1A-25

Model Number	JH1A-25
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/101A
Section	25
Length/Width/Height (mm)	L58.6/H51.8
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

JH1A-35

Model Number	JH1A-35
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	500V/125A
Section	35
Length/Width/Height (mm)	L58.5/H51.65
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box

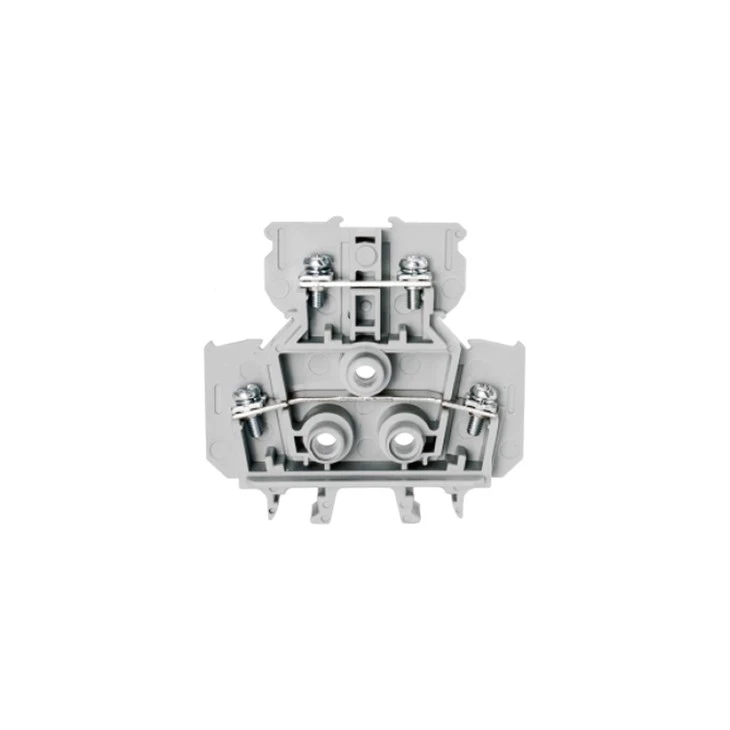

WUD15

Model Number	WUD15
Brand	WDIR
Color	You can customize gray, blue, orange, yellow, and other colors.
Material	Flame-retardant nylon PA66, tin-plated copper
On-link mode	Screw Connection
Rated voltage/current	600V/15A
Section	2-
Length/Width/Height (mm)	L62.3/H59.7
Attestation	CE certification, RoHS certification, SGS/ISO 9001 certification
Characteristic	WDIR, LOGO customizable
Packing for transport	50 pieces per box
