Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of screw feed through terminal block in China. With abundant experience, we warmly welcome you to buy the newest screw feed through terminal block from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product Details
Screw Feed through terminal block is the most widely used through type connection component in the industrial electrical field today. Its core function is to achieve the through connection of wires between different cabinets and chambers, without the need to cut and re crimp the wires.Screw Feed through terminal blockcan complete through wall wiring and ensure the insulation protection performance of the separated areas. Screw Feed through terminal block is the core basic component for equipment wiring such as high and low voltage distribution cabinets, frequency converters, and industrial control cabinets.
This type of terminal adopts a classic European style screw locking structure, suitable for multi strand copper wires ranging from 1.5mm ² to 35mm ². The connection is achieved by tightening the wires with screws. The conductive core is made of high-precision copper, which has excellent conductivity, low contact resistance, and long-term full load operation without overheating problems; The shell is made of high flame retardant engineering plastic, and the insulation and voltage resistance level meets the IEC 60947 international standard, with excellent anti electric shock performance. The screw locking structure has high reliability, good connection firmness, and can withstand high current impact. It can also be easily loosened to adjust the wire during later maintenance, with strong adaptability.
Screw Feed through terminal block supports direct installation on standard DIN rails or fixed directly on the mounting plate, with flexible installation and neat wiring. It is mainly widely used in low-voltage distribution cabinets, industrial automation control cabinets, new energy combiner boxes, variable frequency drive cabinets and other scenarios in factories. It can help engineers standardize wiring, reduce wire joints, lower the risk of line failures, and improve the cleanliness of internal wiring in cabinets, facilitating later maintenance and repair. It is currently one of the most mature and widely used feedthrough connection solutions in the industrial distribution field.
WUK1.5N
|
Model Number |
WUK1.5N |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
500V/17.5A |
|
Section |
1.5 |
|
Length/Width/Height (mm) |
L42.83/H41.3 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK1.5N
|
Model Number |
WUK2.5B |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
690V/24A |
|
Section |
2.5 |
|
Length/Width/Height (mm) |
L42.8/H41 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK3N
|
Model Number |
WUK3N |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/24A |
|
Section |
4 |
|
Length/Width/Height (mm) |
L42.9/H46.2 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK5N
|
Model Number |
WUK5N |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/32A |
|
Section |
4 |
|
Length/Width/Height (mm) |
L42.9/H46.2 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK5N
|
Model Number |
WUK6N |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/41A |
|
Section |
6 |
|
Length/Width/Height (mm) |
L43.05/H46 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK10N
|
Model Number |
WUK10N |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/57A |
|
Section |
10 |
|
Length/Width/Height (mm) |
L42.8/H46 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |

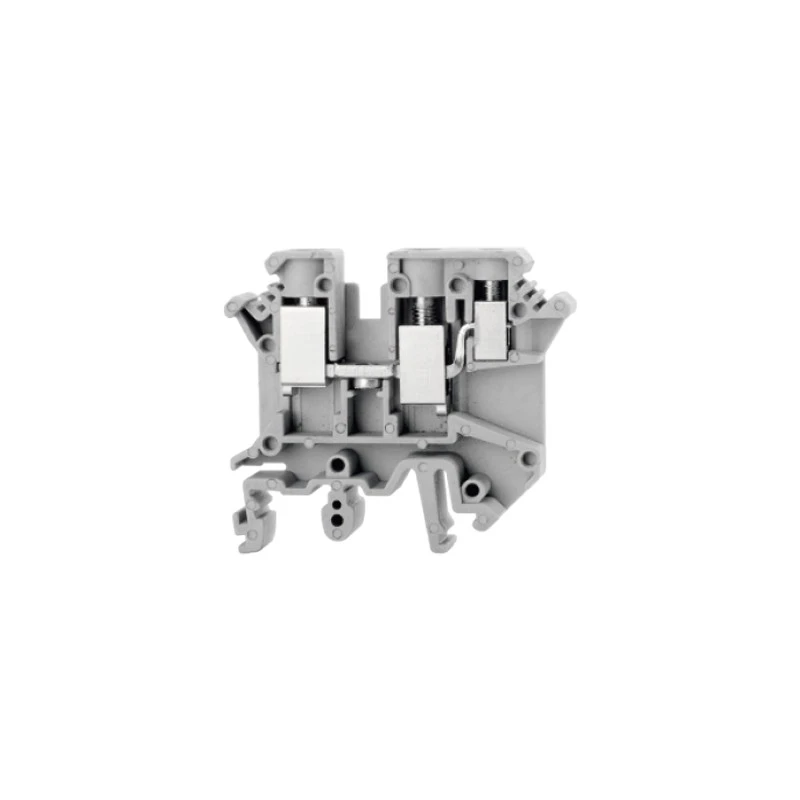

WUK10-PLUS
|
Model Number |
WUK10-PLUS |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/57A |
|
Section |
10/4 |
|
Length/Width/Height (mm) |
L53.1/H46 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK16N
|
Model Number |
WUK16N |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/76A |
|
Section |
16 |
|
Length/Width/Height (mm) |
L42.65/H46 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK16G
|
Model Number |
WUK16G |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/76A |
|
Section |
16 |
|
Length/Width/Height (mm) |
L42.75/H52.7 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK25N
|
Model Number |
WUK25N |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/100A |
|
Section |
25 |
|
Length/Width/Height (mm) |
L42.7/H46.2 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK35
|
Model Number |
WUK35 |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
1000V/125A |
|
Section |
35 |
|
Length/Width/Height (mm) |
L55.8/H51 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WUK35G
|
Model Number |
WUK35G |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
1000V/125A |
|
Section |
35 |
|
Length/Width/Height (mm) |
L51.08/H61.4 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
|
Model Number |

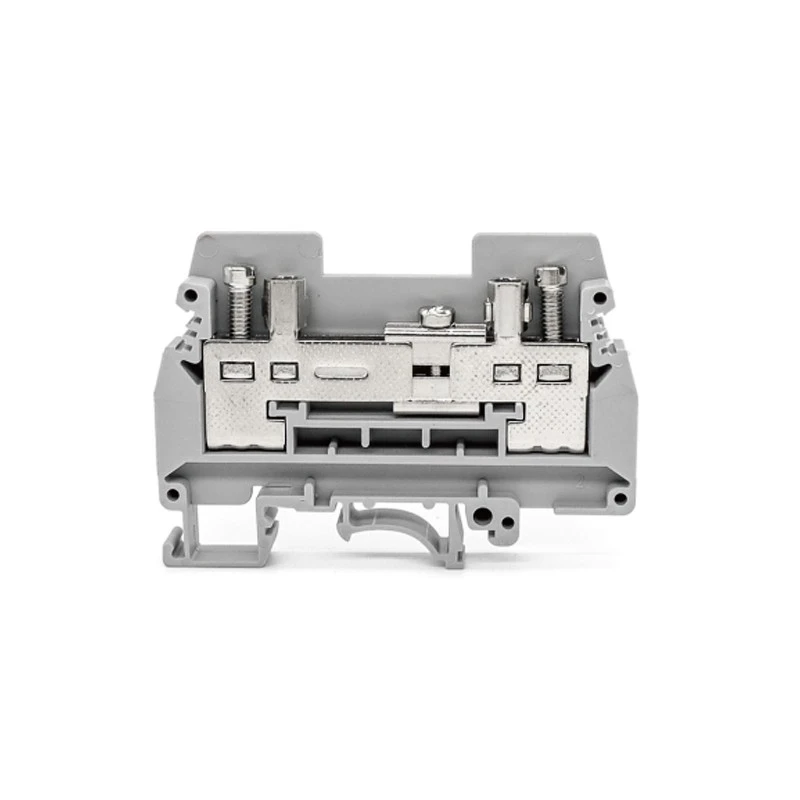

WURTK/S |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
400V/41V |
|
Section |
6 |
|
Length/Width/Height (mm) |
L72.45/H50.6 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |
|
Model Number |

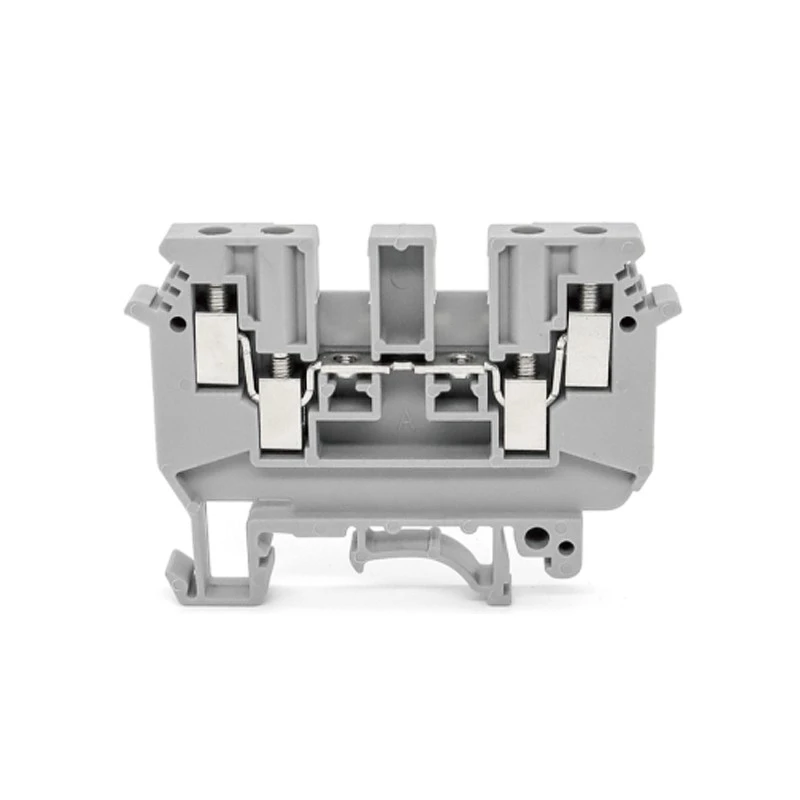

WUDK4 |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
630V/32V |
|
Section |
4 |
|
Length/Width/Height (mm) |
L63.7/H46.2 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
|
Model Number |
WMBK5/E-Z |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
500V/32V |
|
Section |
4 |
|
Length/Width/Height (mm) |
L28.38/H31.45 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |
WUK5-TWIN
|
Model Number |
WUK5-TWIN |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
500V/32V |
|
Section |
4 |
|
Length/Width/Height (mm) |
L50.38/H46 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |
HUK5-MTK-P/P
|
Model Number |
HUK5-MTK-P/P |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
500V/16V |
|
Section |
2.5 |
|
Length/Width/Height (mm) |
L51/H46.5 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |
WUK10-DRHESI
|
Model Number |
WUK10-DRHESI |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/Determined by fuse |
|
Section |
10 |
|
Length/Width/Height (mm) |
L62.86/H55 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WD4-5RD
|
Model Number |
WD4-5RD |
|
Brand |
WDIR |
|
Color |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Screw Connection |
|
Rated voltage/current |
800V/Determined by fuse |
|
Section |
4 |
|
Length/Width/Height (mm) |
L73.22/H57.55 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
