Name: direct insertion Solid state relay
Model: WDGT-25N-09;WDGT-45N-09;WDGT-85N-09;WDGT-165N-09
Direct insertion Solid state relay is a non-contact electronic switch that uses semiconductor components to achieve on-off control. Compared with traditional mechanical relays, direct insertion Solid state relay has no internal moving parts and does not produce mechanical wear, contact sparks, or action noise during operation. The switch response speed is several orders of magnitude faster than mechanical relays, and the overall service life is longer. At the same time, it has better resistance to vibration and electromagnetic interference, and has obvious advantages in long-term stability and reliability. direct insertion Solid state relay is generally compact in size, easy to install and wire, with low input control power and strong compatibility. It can directly match weak current control signals such as PLC and microcontroller without the need for additional signal conversion circuits to work normally. In addition, it has excellent insulation performance on the input and output sides, fast response speed, no action noise during operation, and overall low operating power consumption. It is a commonly used signal conversion component in industrial control.
Technical parameter
|
Model |
WDGT-25N-09;WDGT-45N-09;WDGT-85N-09;WDGT-165N-09 |
||||||
|
Wire diameter |
1.5 mm² / AWG 16 |
||||||
|
Attestation |
RoHS,CCC,ISO：9001,CE |
||||||
|
NPN mould |
PNP mould |
NPN |
PNP |
||||
|
Import |
voltage range |
5-24VDC |
5-24VDC |
Output |
Contact Composition |
MOS Guan |
MOS Guan |
|
current range |
5mA-30MA |
5mA-30MA |
rated voltage |
5～24VDC |
5～24VDC |
||
|
operation voltage |
3.9～24VDC |
3.9～24VDC |
rated current |
5A |
5A |
||
|
incoming signal |
Compatible with NPN and PNP |
Compatible with NPN and PNP |
Instantaneous maximum current |
6A |
6A |
||
|
Maximum switching voltage |
30VDC |
30VDC |
|||||
|
Action time (rated voltage) |
Less than 1 ms |
Less than 1 ms |
|||||
|
Reduction time (rated voltage) |
Less than 1 ms |
Less than 1 ms |
|||||
|
Insulation Voltage |
2500Vrms |
2500Vrms |
|||||
|
output signal |
NPN |
PNP |
|||||
WDGT-25N-09

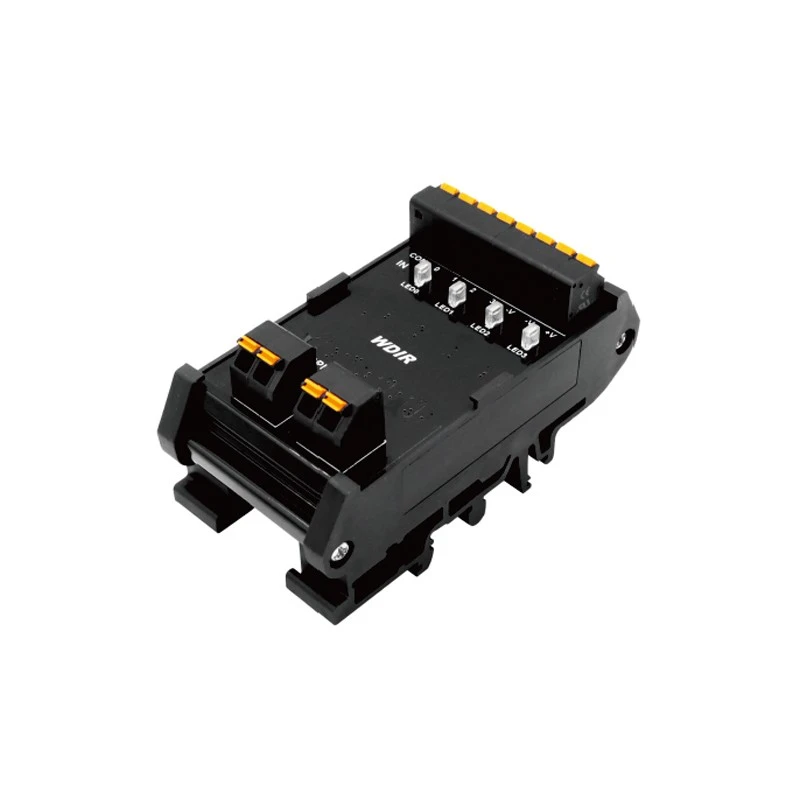

WDGT-45N-09
WDGT-85N-09
WDGT-165N-09

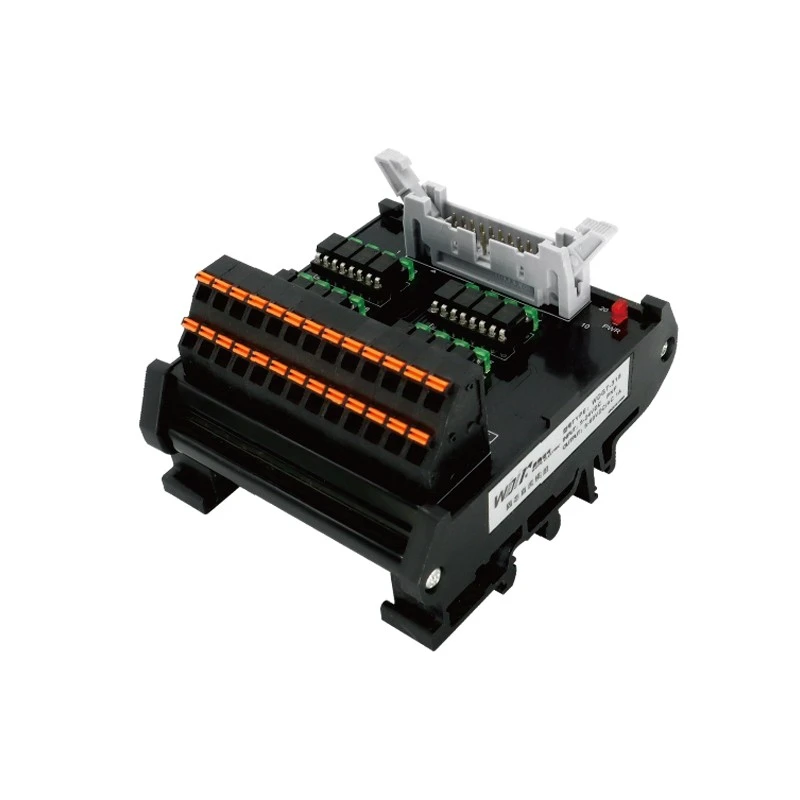

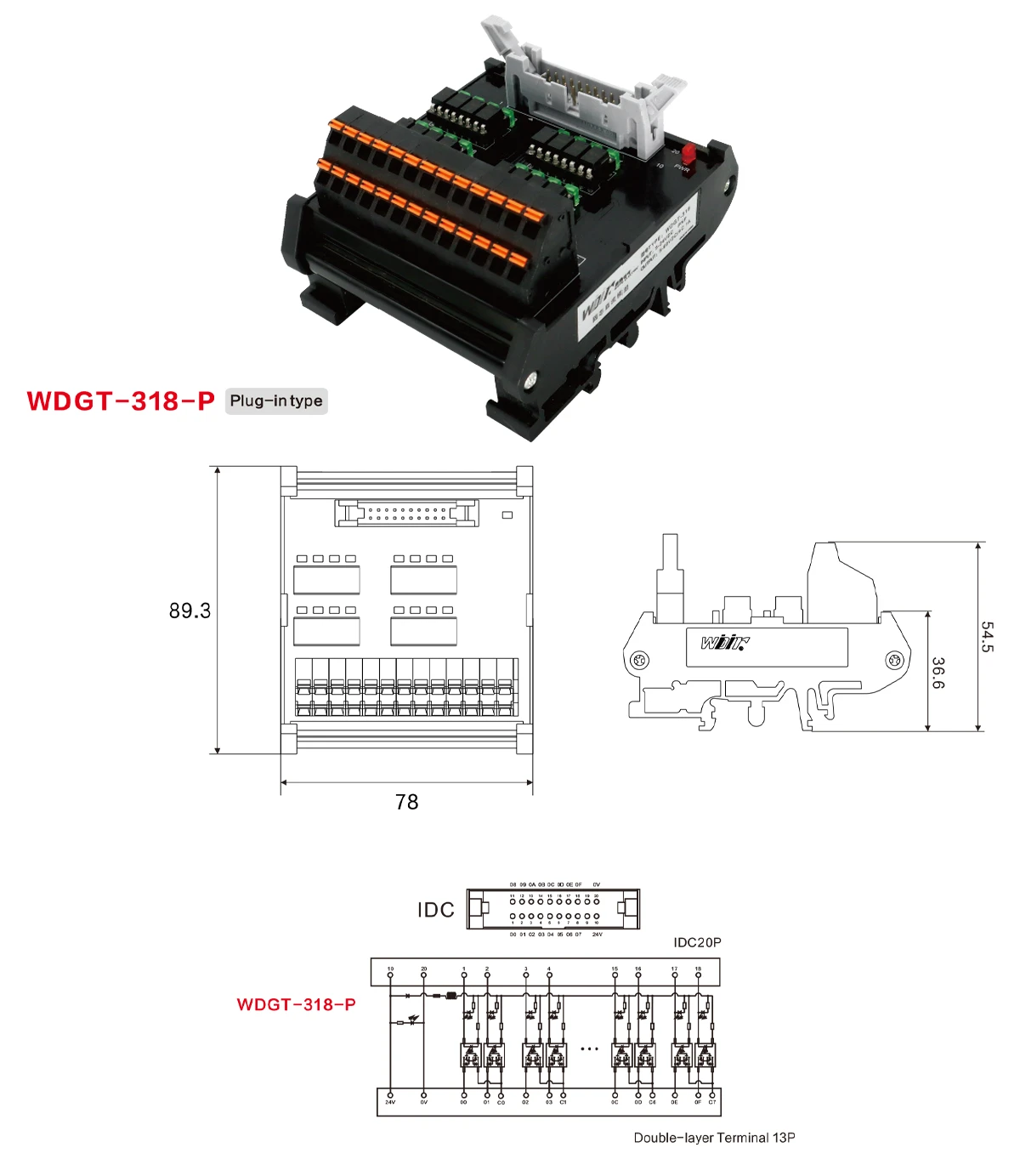

WDGT-318-P
|
Model |
WDGT-318-P |
||||
|
Wire diameter |
1.5 mm² / AWG 16 |
||||
|
attestation |
RoHS,CCC,ISO：9001,CE |
||||
|
import |
rated current |
10～20mA |
output |
rated current |
1A |
|
rated voltage |
12～24VDC |
rated voltage |
3～60V |
||
|
service frequency |
0～300HZ |
service frequency |
0～300HZ |
||
|
Instantaneous maximum current |
1.7A |
||||
