Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of screw type solid state relay in China. With abundant experience, we warmly welcome you to buy the newest screw type solid state relay from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product Details

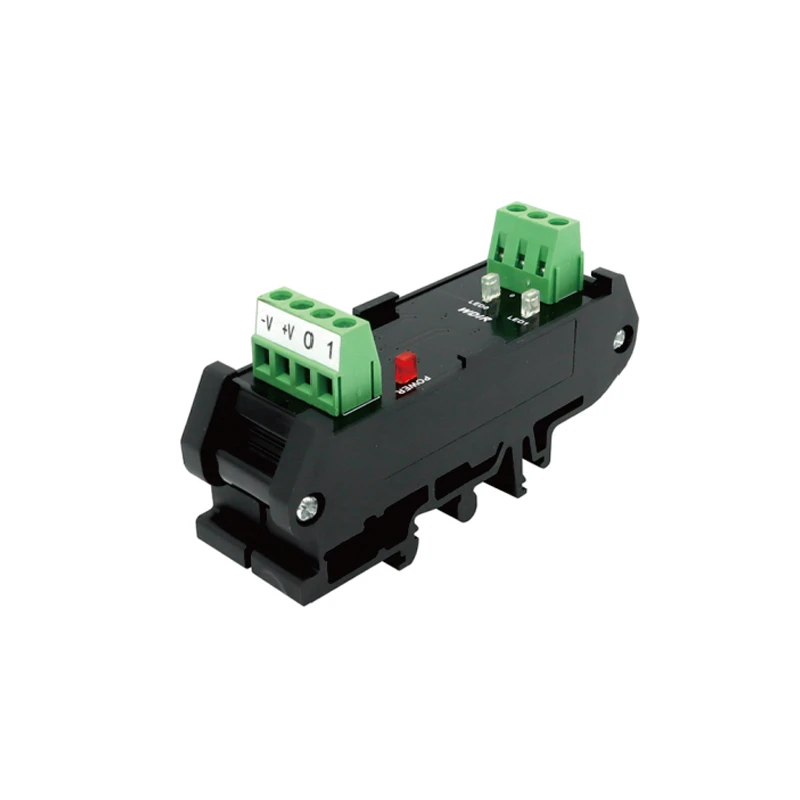

Name: Screw type solid state relay

Model: WDGT-25N/P;WDGT-45N/P;WDGT-85N/P;WDGT-85N-2;WDGT-165N/P

Screw type solid state relay adopt a contactless electronic switch design, with no mechanical wear, sparks, noise, fast switching speed, long service life, strong anti vibration and anti-interference ability, and stable and reliable operation. Screw type solid state relay is compact in size, easy to install, has low input control power, strong compatibility, and can directly match with weak electrical signals such as PLCs and microcontrollers. At the same time, it has good insulation performance and fast response characteristics, and works quietly with low power consumption.

Main purpose

Screw type solid state relay Mainly used in industrial automation equipment, electrical cabinet heat dissipation control, temperature control system, lighting control, motor start stop, solenoid valve drive and other scenarios, widely used in automated production lines, instruments and meters, medical equipment, security and HVAC equipment, especially suitable for working environments with frequent start stop, explosion-proof, silent and high reliability requirements.

Technical parameter

Model		WDGT-25N/P;WDGT-45N/P;WDGT-85N/P;WDGT-85N-2;WDGT-165N/P
Wire diameter		1.5 mm² / AWG 16
Attestation		RoHS,CCC,ISO：9001,CE
		NPN mould	PNP mould	Output		NPN	PNP
Import	voltage range	5-24VDC	5-24VDC		Contact Composition	MOS Guan	MOS Guan
	current range	5mA-30MA	5mA-30MA		rated voltage	5～24VDC	5～24VDC
	operation voltage	3.9～24VDC	3.9～24VDC		rated current	5A	5A
	incoming signal	Compatible with NPN and PNP	Compatible with NPN and PNP		Instantaneous maximum current	6A	6A
					Maximum switching voltage	30VDC	30VDC
					Action time (rated voltage)	Less than 1 ms	Less than 1 ms
					Reduction time (rated voltage)	Less than 1 ms	Less than 1 ms
					Insulation Voltage	2500Vrms	2500Vrms
					output signal	NPN	PNP

WDGT-25N/P

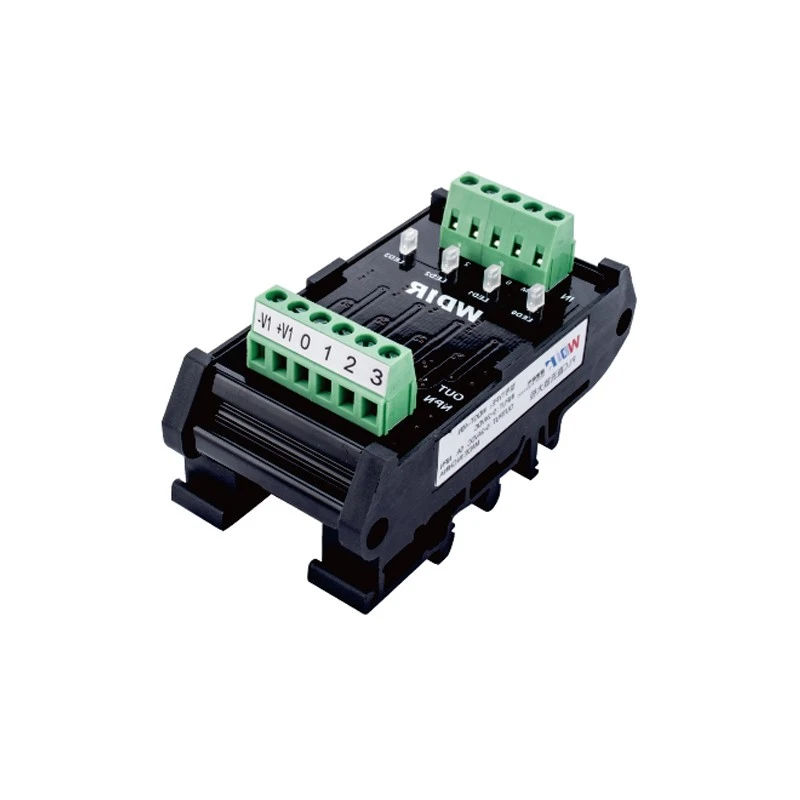

WDGT-45N/P

WDGT-85N/P

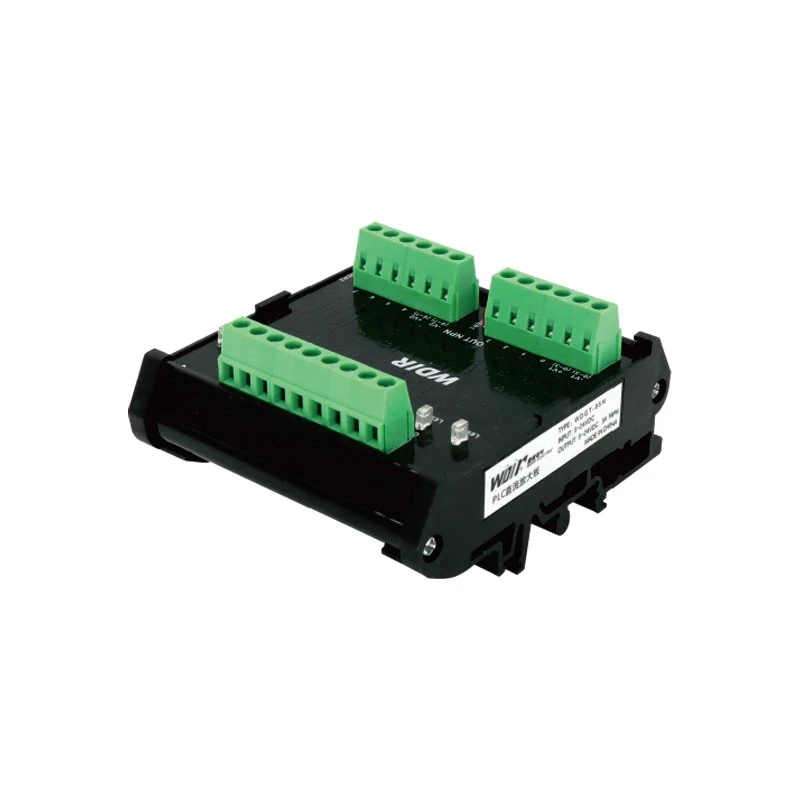

WDGT-85N-2

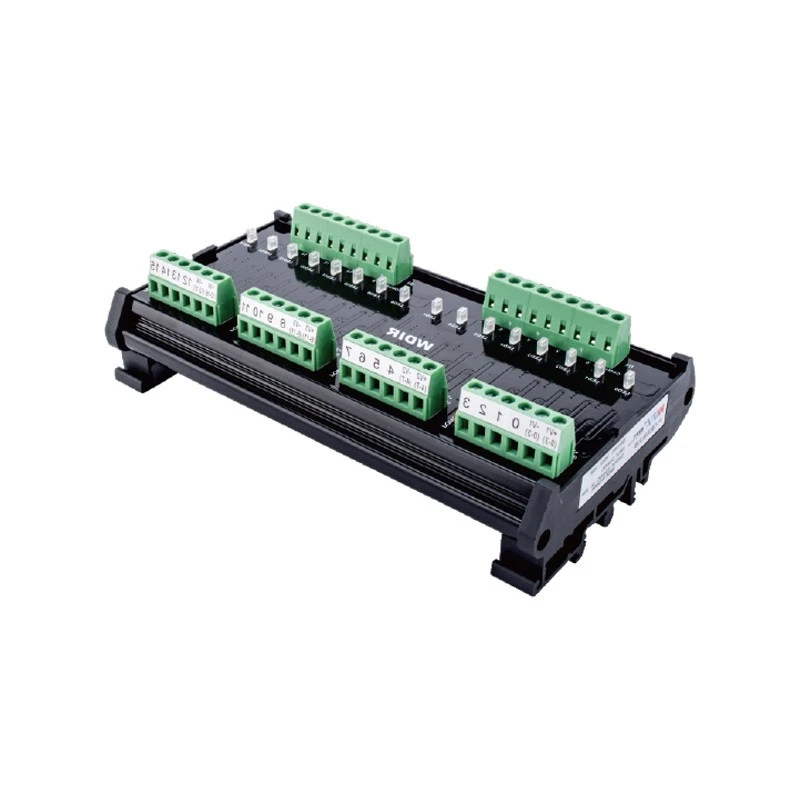

WDGT-165N/P

5001

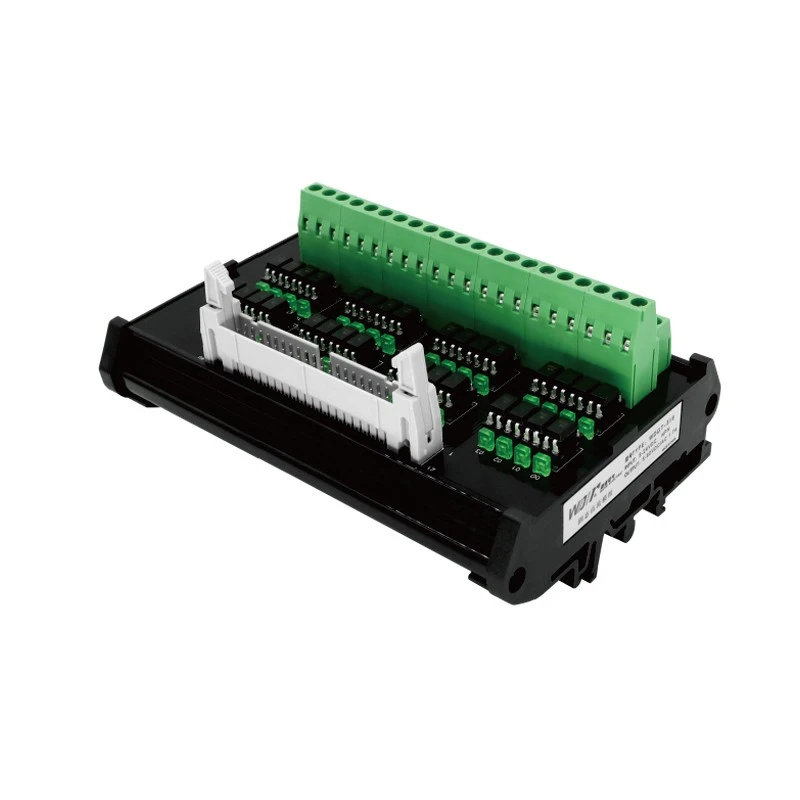

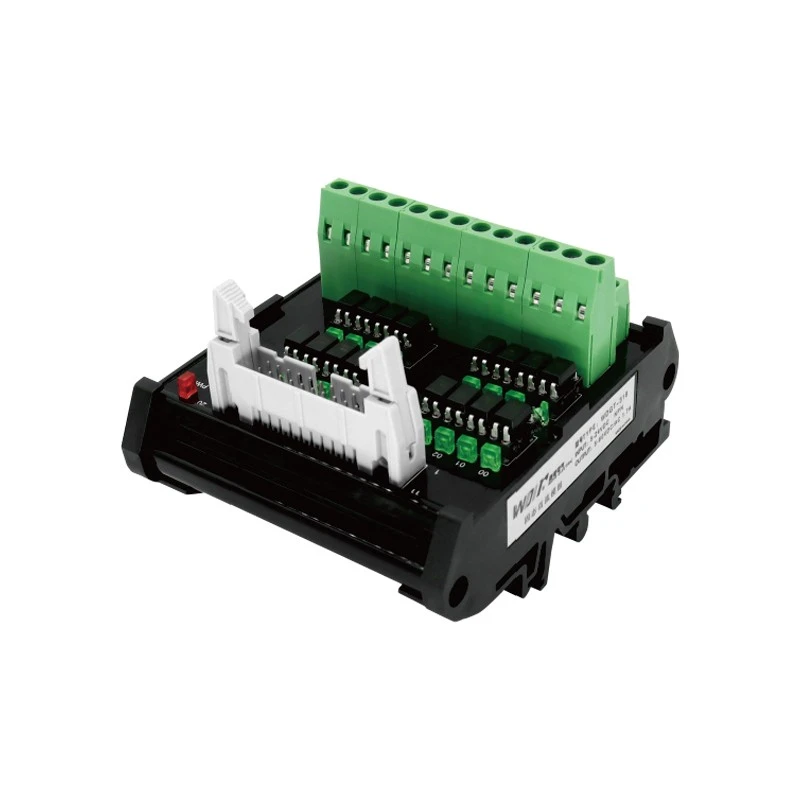

WDGT-318/WDGT-319

Model		WDGT-318/WDGT-319
Wire diameter		1.5 mm² / AWG 16
attestation		RoHS,CCC,ISO：9001,CE
import	rated current	10～20mA	output	rated current	1A
	rated voltage	12～24VDC		rated voltage	3～60V
	service frequency	0～300HZ		service frequency	0～300HZ
				Instantaneous maximum current	1.7A
