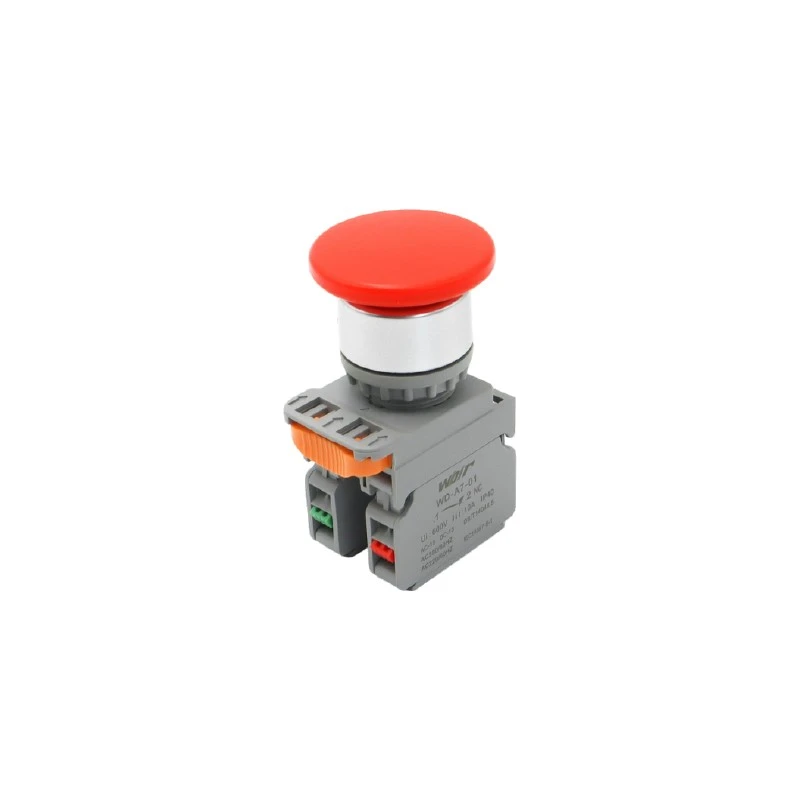

Mushroom Button Switch

Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of mushroom button switch in China. With abundant experience, we warmly welcome you to buy the newest mushroom button switch from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product advantages





Name: Mushroom button switch

Model:WD-A7-M10F/WD-A7-M01F/WD-A7-M11F/WD-A7-M20F/WD-A7-M02F/WD-A7-M21F/WD-A7-M12F/WD-A7-M22F/ WD-A7-M10Z/WD-A7-M01Z/WD-A7-M11Z/WD-A7-M20Z/WD-A7-M02Z/WD-A7-M21Z/WD-A7-M12Z/WD-A7-M22Z

Mushroom button switch is the most widely used emergency stop and emergency operation component in the field of industrial safety control. It is designed with a large-diameter plastic mushroom head as the operation head, and its core function is to quickly trigger stop commands in emergency situations. At the same time, it has the characteristics of excellent operation feel and high insulation safety. Mushroom button switch widely applicable to various mechanical equipment, automated production lines, and industrial robot operation panels, and is the basic industrial control operation component to ensure the safety of on-site personnel and equipment.

Mushroom button switch mushroom head of this product is made of UL 94 V-0 grade flame-retardant engineering plastic through integrated injection molding. Compared with metal mushroom heads, it has better insulation performance, which can effectively avoid the risk of electric shock when the operator accidentally touches it. At the same time, it is lighter in weight, has less resistance to pressing operation, and is easier to trigger in emergency situations; Plastic materials also have the characteristics of oil resistance, corrosion resistance, and resistance to rust, making them suitable for special working conditions such as food processing workshops, outdoor engineering machinery, and chemical peripheral equipment. Long term use will not cause surface rust or jamming problems. The product is compatible with industry standard panel openings of Φ 16mm/Φ 22mm, which are fully compatible with the installation dimensions of conventional metal buttons. New or old equipment can be installed without the need for re opening, and can be replaced directly. It has strong adaptability.

In terms of structural design, the large diameter mushroom head (commonly measuring 40mm/60mm) conforms to ergonomics. In emergency situations, the operator can easily press and trigger it with their palm, back of their hand, or arm, without the problem of ordinary small buttons not being found or pressed, greatly reducing emergency stop response time; The buckle type installation structure is matched with a standard threaded base, which is firmly installed and will not loosen after long-term high-frequency pressing. The contact system uses silver alloy composite contacts, which have low contact resistance and strong resistance to arc erosion. The electrical life can reach more than 100000 operations, and long-term use will not cause contact problems. At the same time, it supports two structures: self-locking/self resetting. When used for emergency stop, it is a press locking and rotation reset structure, which remains disconnected after triggering to avoid accidental restart of the equipment; When used as a regular large operating surface button, it has a self resetting structure and automatically rebounds and resets when released.

At present, Mushroom button switch has become a standard safety configuration for various industrial equipment: emergency stop buttons for processing areas of CNC lathes and milling machines, emergency stop buttons along automated conveyor lines, safety trigger switches for industrial robot workstations, emergency stop buttons for operation panels of packaging and woodworking machinery, and even plastic mushroom buttons are widely used for elevator roof maintenance and emergency stop of elevators. With extremely low cost and high reliability, it provides a basic guarantee for safe operation on industrial sites and is an indispensable core operating component in industrial safety control systems.
