Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of 22mm button switch in China. With abundant experience, we warmly welcome you to buy the newest 22mm button switch from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product advantages

Name: 22mm button switch

Model: LA710B-BA/LA710B-BZ/LA710B-BL/LA710B-BD/LA710B-BJ/LA710B-BC/LA710B-BR/LA710B-BS/LA710B-BG

22mm Button Switch Series · Core Introduction

✅ Automatic reset low-voltage control components, manual operation is more worry free

✅ Specially designed for start stop commands, it precisely controls the on/off of coils such as contactors and relays

✅ Suitable for control circuits with AC/DC voltage below 440V and current ≤ 5A, safe and reliable

✅ Not directly controlling the main circuit, it can also be used for interlocking circuits, suitable for various industrial scenarios

Main purpose

Signal lights are suitable for indicating signals, alarm signals, accident signals, and other indication signals in industries such as power, telecommunications, machine tools, ships, textiles, printing, mining machinery, and others.

Technical parameters

Model	La710b-b metal series / La710b-e plastic series
Head	La710b-b metal series: Alufer; La710b-e plastic series: Nylon
Middle seat	La710b-b metal series: Alufer; La710b-e plastic series: Nylon
Contact	Silver alloy
Switch housing	Pbt
Insulation heat-resistant	≥100mω
The power frequency can withstand the voltage.	1890 vac/50 hz/1960s
Anti-vibration	Amplitude: Approximately 1.0 mm/50 hz
Impact resistance	> 10 grams
Protection level	Ip40 can be customized to ip65.
Electrical lifespan	≥100,000 times
Wiring capacity	Maximum: 2×1.5 mm or 1×2.5 mm²,Minimum: 1×0.5 mm
Maximum insertion size	6.3 × 0.8 mm
Rated insulation quality ui	415 volts
Rated thermal current ith	10a
Rated operational voltage ue	24v / 48v / 110v / 220v / 380v
Rated operating current ie	Communication 50/60hz – Resistive load: 24v: 10a, 48v: , 110v: 10a, 220v: 6a, 380v: ; Communication 50/60hz – Inductive load: 24v: 10a, 48v: , 110v: 6a, 220v: 3a, 380v: 2a; Dc – Resistive load: 24v: 8a, 48v: 4a, 110v: 2.2a, 220v: 1.1a, 380v: ; Dc – Inductive load: 24v: 4a, 48v: 2a, 110v: 1.2a, 220v: 0.6a, 380v:
Led type	Bidirectional light-emitting diode
Rated voltage	Ac/dc 6v, Ac/dc 12v, Ac/dc 24v, Ac/dc 36v, Ac/dc 48v, Ac/dc 110v, Ac/dc 220v, Ac/dc 380v, Ac110v, Ac220v, Ac380v
Hair color	Rd / Gn / Yes / Bl / wh
All one's life	≥40000h

Operating mechanism code

Operating mechanism code	Field description	Operating mechanism code	Field description

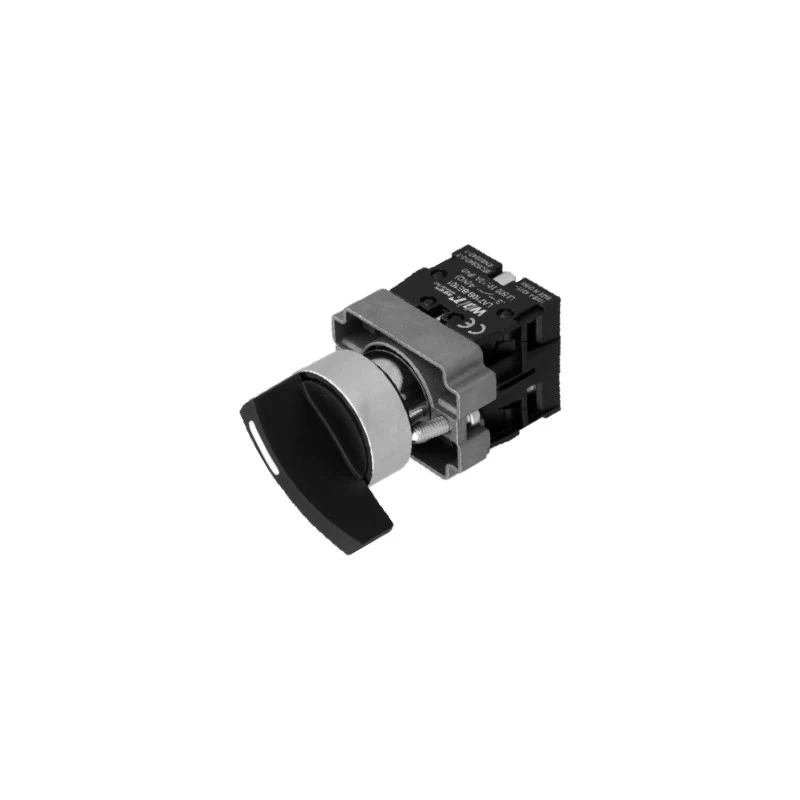

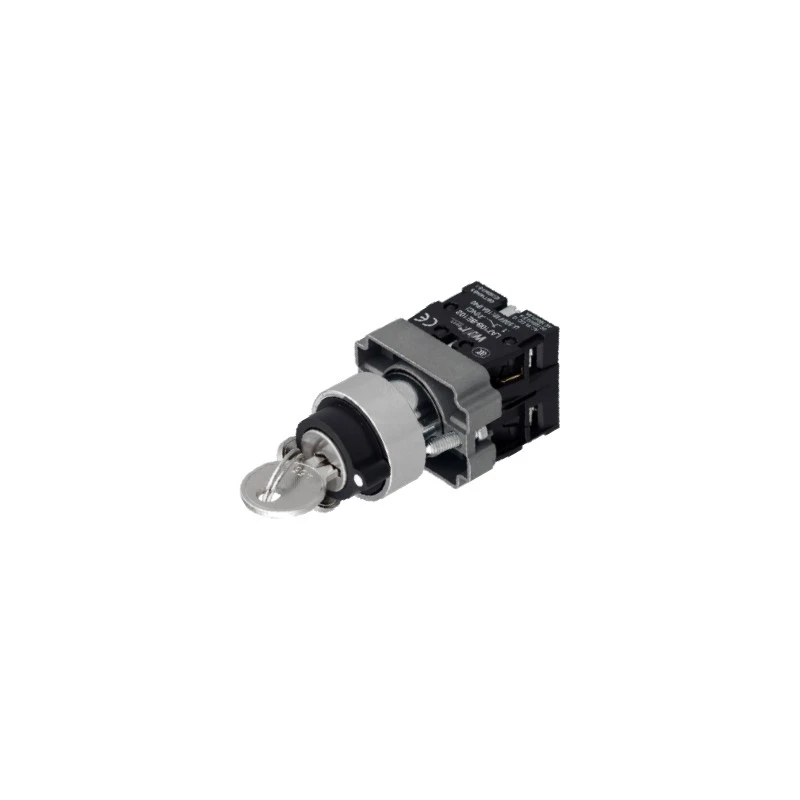

A	Flush button	LG	Flat head button
L	Extended button	C	40 diameter self reseating mushroom head button
Z	Self locking flush head button	R	Diameter 60 spring return mushroom head button
P	Flush head button with waterproof cap	S4	Diameter 30 emergency stop selflocking mushroom head button
A3311	Green single white bar printing button(52 press button)	S5	Diameter 40 emergency stop selflocking mushroom head button
A3341	White black arrow printing button(56 press button)	S6	Diameter 60 emergency stop selflocking mushroom headbutton
A3351	Black face white arrow printing button(56 press button)	S1	Diameter 40 key emergency stop mushroom head button
A4322	Red face white circle printing button(58 moulded button	D2	2 position selector switch
A4342	Red face STOP printing button(62 press button)	D3	3 position selector switch
K2	2 position illuminated selector	D7	2 position right spring return selector switch
K3	3 position illuminated selector	D8	3 position two side spring return switch

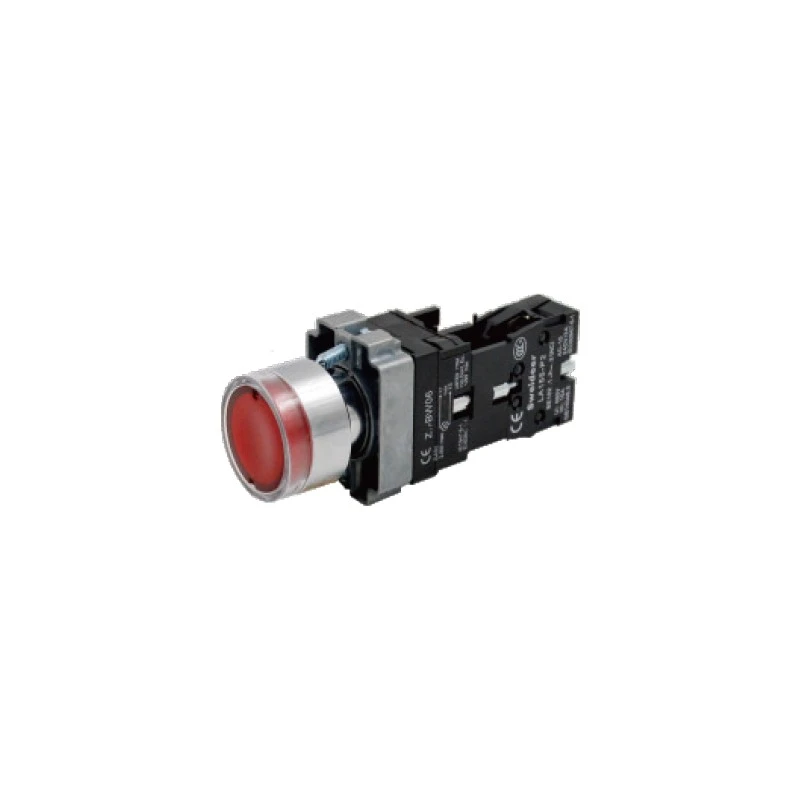

W3	Flush button with lamp	J2	2 long handle selector switch (other models with BD)

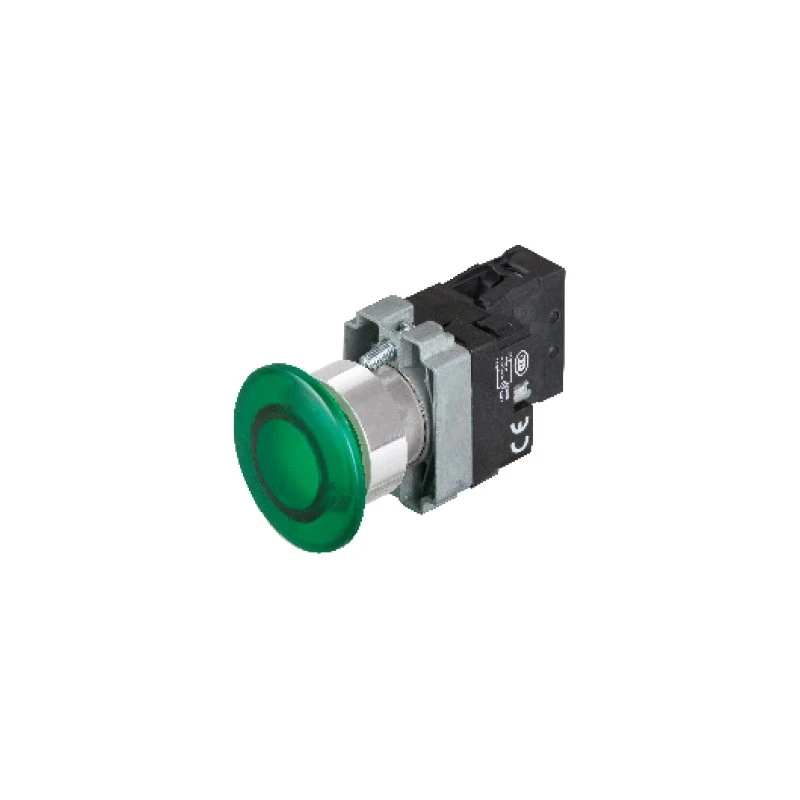

W4	Mushroom head button with lamp	G2	2 position left out key selector switch
Z3	Self locking flush head button with lamp	G4	2 position two side out key selector switch
L83	Two flush double button	G6	Left dial right duplicate key selector switch
L84	High and low button	G3	3 position middle out key selector switch

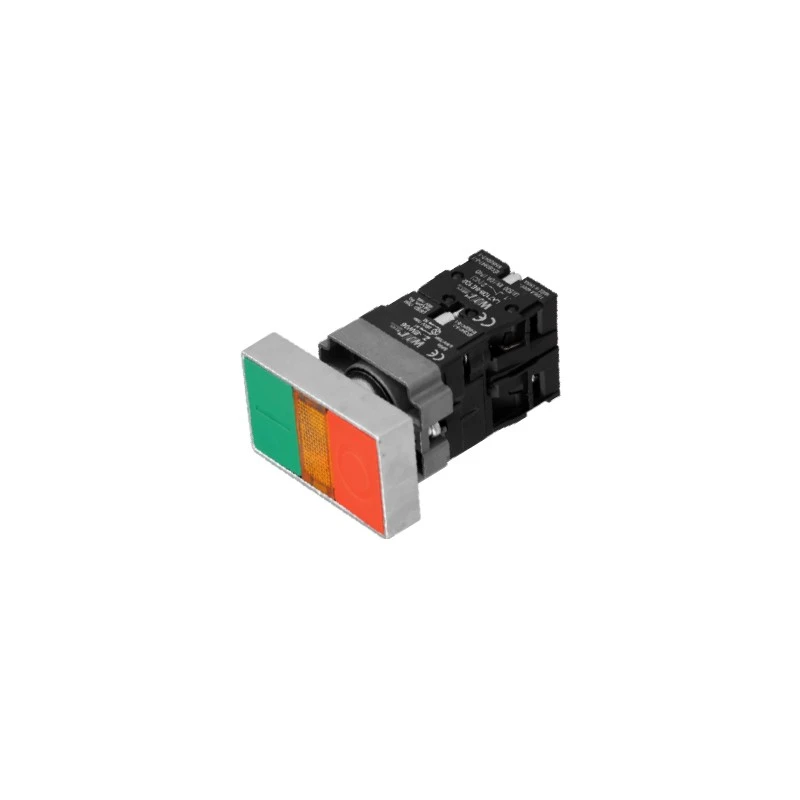

W83	Two flush double key with lamp button	G5	3 position middle out two spring key selector
W84	High and low double button push button with lamp	G0	3 position two side out key selector
		G7	3 position left spring right locking key selector

After labeled button switch BA,the first bit represents the color of the button,the second bit represents the color of the pattern,and the third and fourth bits represent the number of the pattern,in which the singular number is printed and the double force is molded.
