Product Details
In complex electrical scenarios such as automated control cabinets and factory power distribution systems, reliable wiring connections have always been the core element ensuring stable equipment operation. Spring terminal blocks, as a new generation of wire connection components, were specifically designed to address industry pain points like low efficiency and easy loosening in traditional screw connections.
Unlike traditional terminals that require screwing each screw one by one, spring terminals feature an integrated stainless steel spring compression mechanism. WD6-2.5mm Terminal Block Simply use a dedicated tool to push the spring aside, insert the stripped wire, and release the spring to complete the connection-no additional tightening is needed. WD6-2.5mm Terminal Block This design increases wiring speed by at least 50% compared to traditional screw terminals, significantly reducing installation time and labor costs in scenarios such as mass installation of control cabinets or rapid on-site wiring.
In addition to its installation efficiency advantages, spring terminals offer superior long-term stability: the constant clamping force of stainless steel springs automatically compensates for wire diameter deviations and dimensional changes caused by thermal expansion and contraction. Even in industrial environments with prolonged vibration and significant temperature fluctuations, they maintain stable contact pressure, preventing issues like poor connections, terminal heating, and loosening. This reduces the need for maintenance and minimizes potential failures. Suitable for a wide range of wire gauges from 0.08mm² to 16mm², they accommodate hard copper wires, stranded soft wires, and pre-insulated terminal ends for direct connection. Widely used in scenarios demanding high connection reliability-such as distribution cabinets, PLC control systems, frequency converter drives, and industrial sensor circuits-they have become the mainstream choice for modern industrial electrical installations.

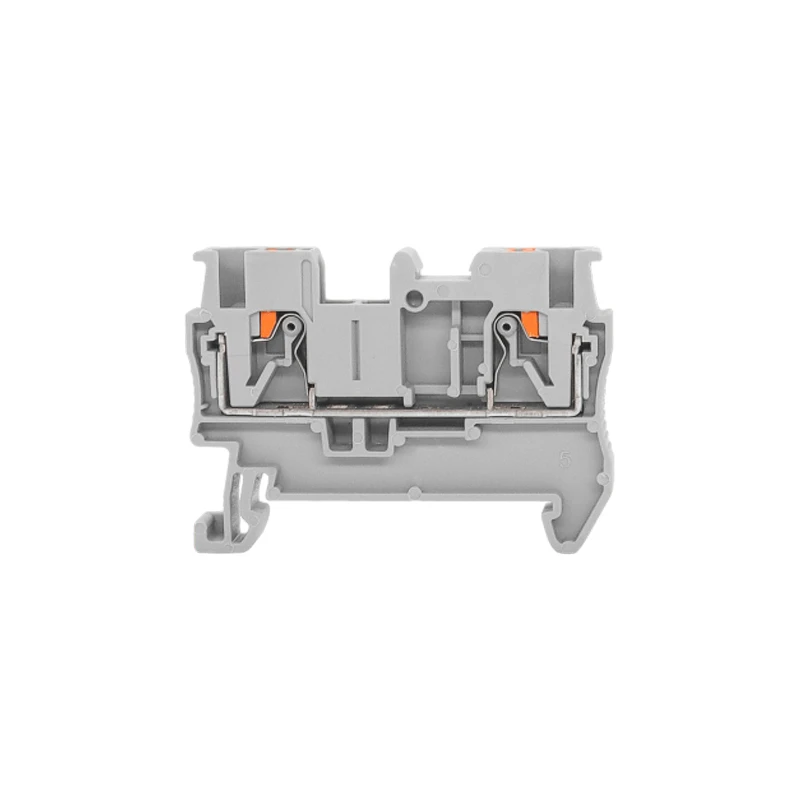

WD6-2.5
|
Model Number |
WD6-2.5 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
800V/24A |
|
Section |
0.25-4mm² |
|
Length/Width/Height (mm) |
L48.85/H35.7 |
|
Conductor size |
24-12AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |
WD6-2.5-DIO
|
Model Number |
WD6-2.5-DIO |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
800V/Diode current limiting |
|
Section |
2.5mm² |
|
Length/Width/Height (mm) |
L48.85/H35.7 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |
WD6-2.5/3
|
Model Number |
WD6-2.5/3 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
800V/24A |
|
Section |
0.25-4mm² |
|
Length/Width/Height (mm) |
L60.6/H35.7 |
|
Conductor size |
24-12AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |

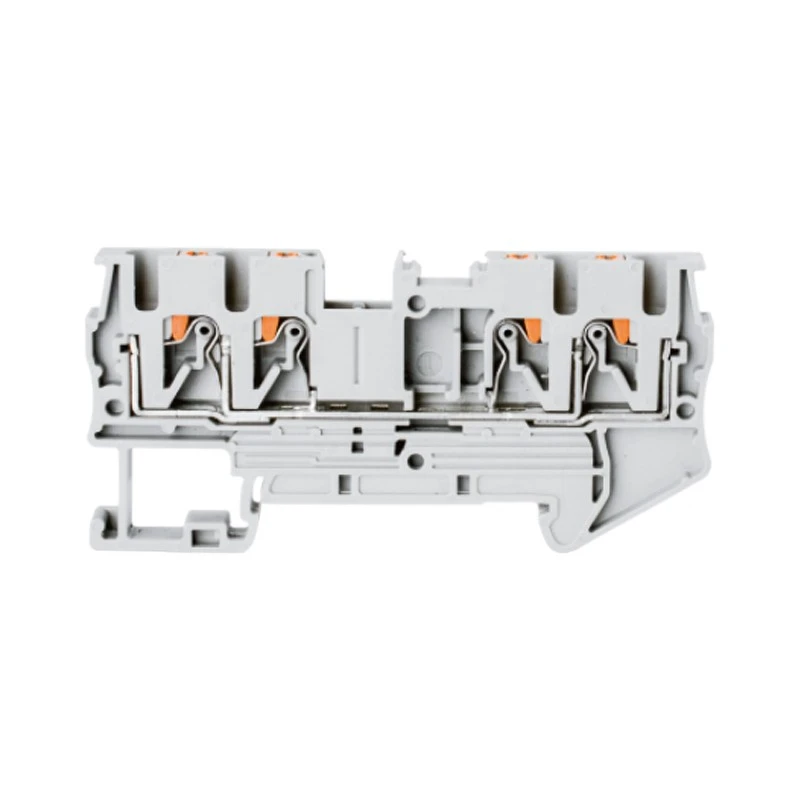

WD6-2.5/4
|
Model Number |
WD6-2.5/4 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
800V/24A |
|
Section |
0.25-4mm² |
|
Length/Width/Height (mm) |
L72.5/H35.7 |
|
Conductor size |
24-12AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WD6-2.5T
|
Model Number |
WD6-2.5T |
|
Brand |
WDIR |
|
pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/24A |
|
Section |
2.5 |
|
Length/Width/Height (mm) |
L17.1/H40.1 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |
WD6-2.5Z
|
Model Number |
WD6-2.5Z |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/24A |
|
Section |
2.5 |
|
Length/Width/Height (mm) |
L48.7/H35.7 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |

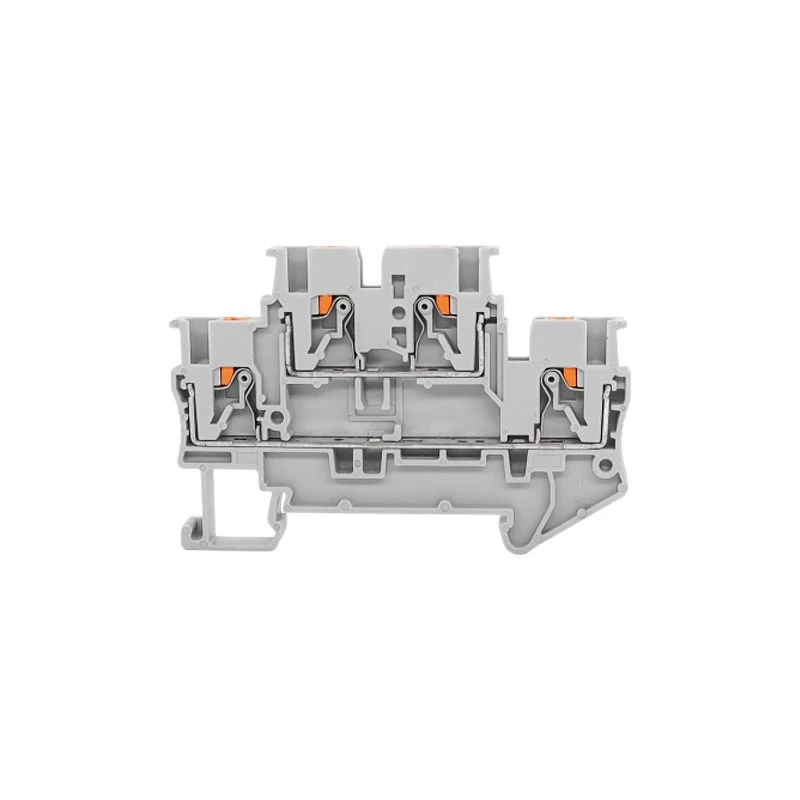

WD6-2.5/2/2
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5/2/2 |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 500V/22A |
| Section | 0.25–4mm² |
| Length/Width/Height (mm) | L68.2/H46 |
| Conductor Size | 24–12AWG |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |
WD6-2.5/2/2PV
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5/2/2PV |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 500V/22A |
| Section | 2.5 mm² |
| Length/Width/Height (mm) | L68.2/H46 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |

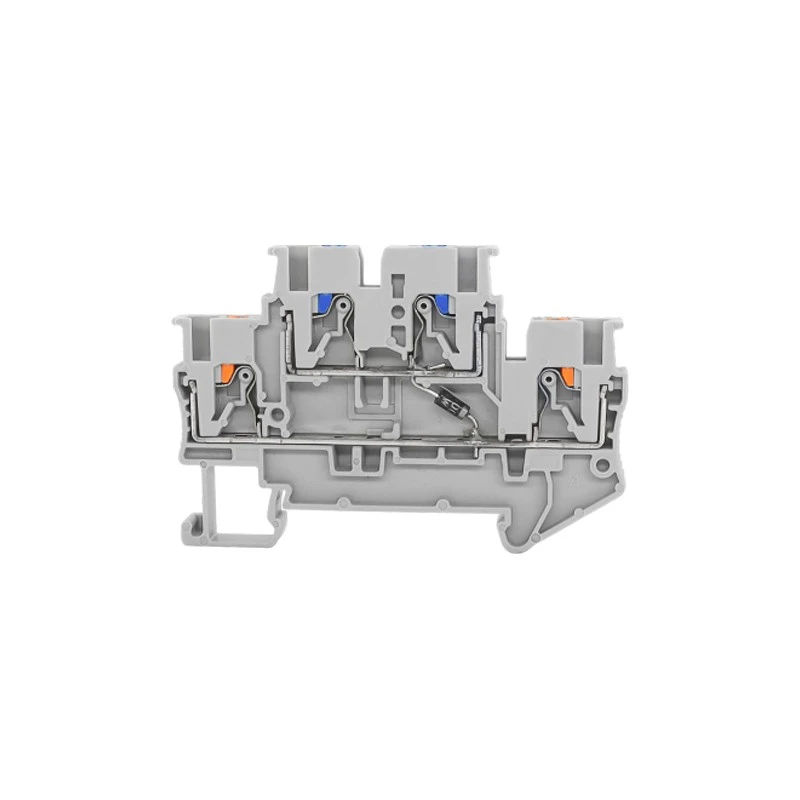

WD6-2.5/2/2-DIO
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5/2/2-DIO |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 500V / Diode current limiting |
| Section | 2.5 mm² |
| Length/Width/Height (mm) | L68.2/H46 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |

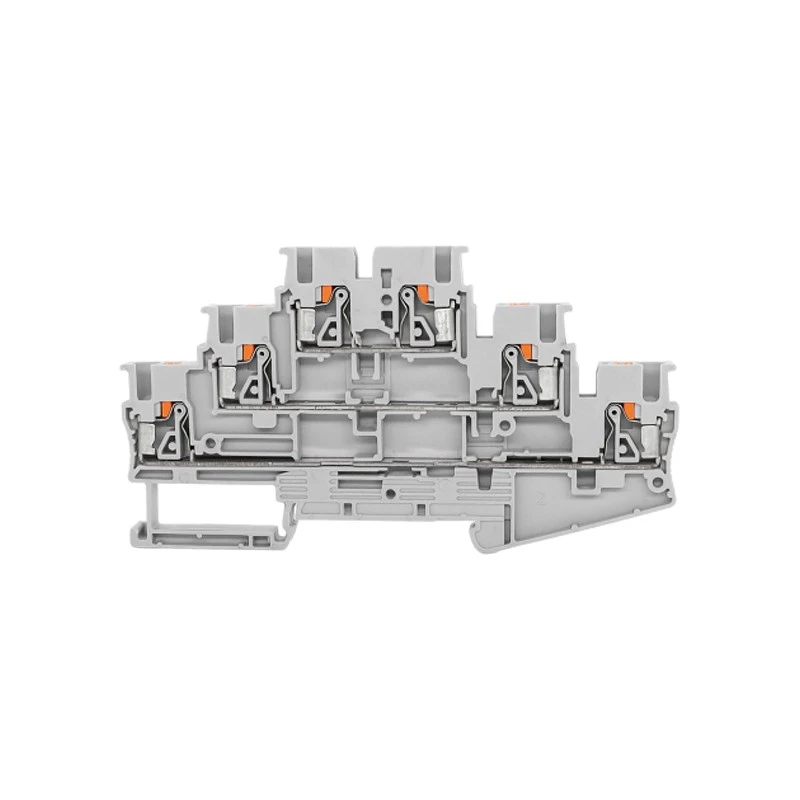

WD6-2.5/2/3
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5/2/3 |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 500V/20A |
| Section | 0.25–4 mm² |
| Length/Width/Height (mm) | L103.3/H56.7 |
| Conductor Size | 24–12 AWG |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |
WD6-2.5/2/3PV
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5/2/3PV |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 500V/20A |
| Section | 2.5 |
| Length/Width/Height (mm) | L103/H56.7 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |

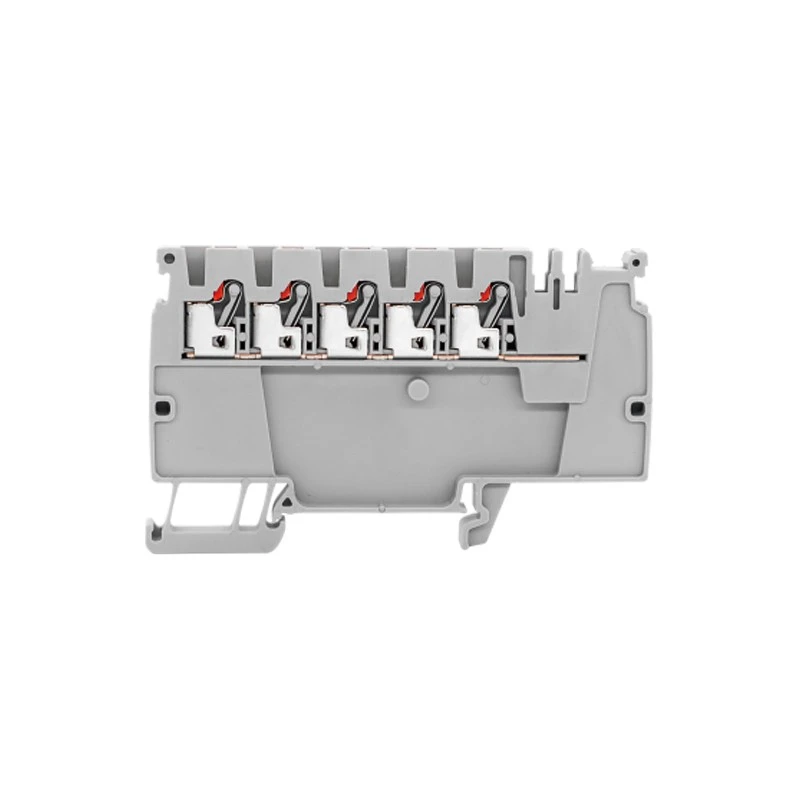

WD6-2.5×5-FX
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5×5-FX |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 800V/24A |
| Section | 2.5 |
| Length/Width/Height (mm) | L87.7/H53.5 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |
WD6-2.5/2/8
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5/2/8 |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 250V/8A |
| Section | 1.5 |
| Length/Width/Height (mm) | L112/H102 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |
WD6-2.5/4/8
| Parameter | Specification |
|---|---|
| Model Number | WD6-2.5/4/8 |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 250V/8A |
| Section | 1.5 |
| Length/Width/Height (mm) | L120.4/H83.5 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |
