Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of 1.5 mm terminal block in China. With abundant experience, we warmly welcome you to buy the newest 1.5 mm terminal block from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product Details
WD6-1.5mm Terminal Block adopts direct-insertion spring wiring technology, featuring space-saving design and optimal wiring solutions.
WD6-1.5mm Terminal Block A terminal typically consists of three main components: a housing, springs, and conductive plates.
During wiring, press the spring with a screwdriver to open the spring connection port, insert the wire, and then release the screwdriver. The product design and manufacturing comply with international standards such as IEC/EN60947 and UL1059.

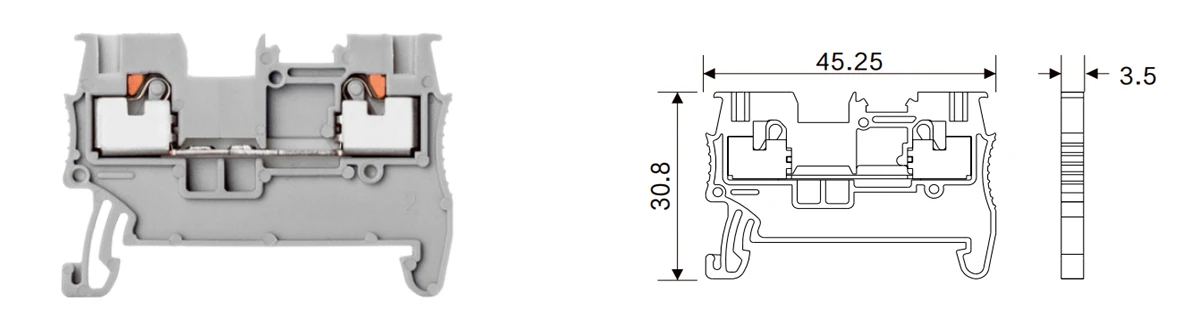

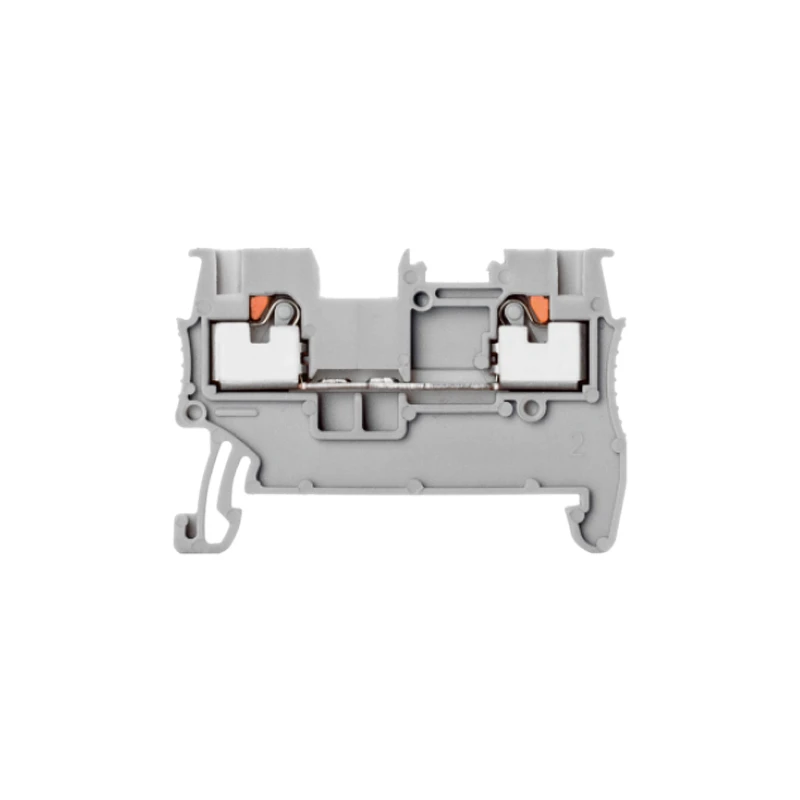

WD6-1.5
|
Model Number |
WD6-1.5 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
Pn-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/17.5A |
|
Section |
0.14-2.5mm² |
|
Length/Width/Height (mm) |
L45.25/H30.8 |
|
Conductor size |
26-14AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |

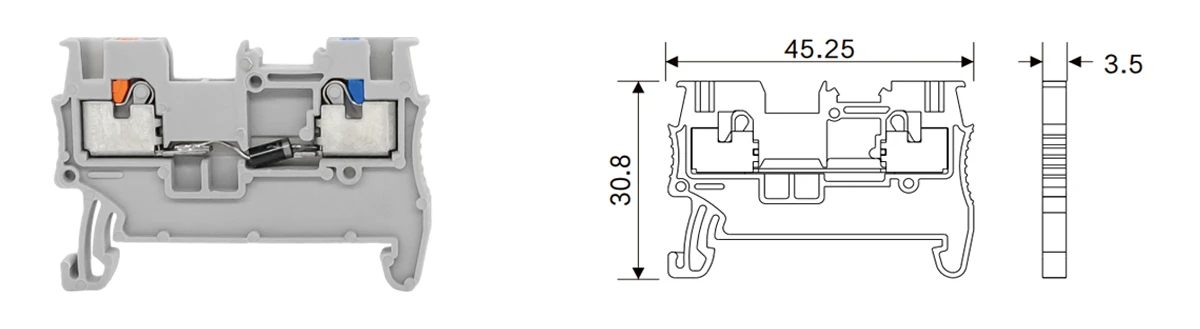

WD6-1.5-DIO
|
Model Number |
WD6-1.5-DIO |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/Diode current limiting |
|
Section |
1.5mm² |
|
Length/Width/Height (mm) |
L45.25/H30.8 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |

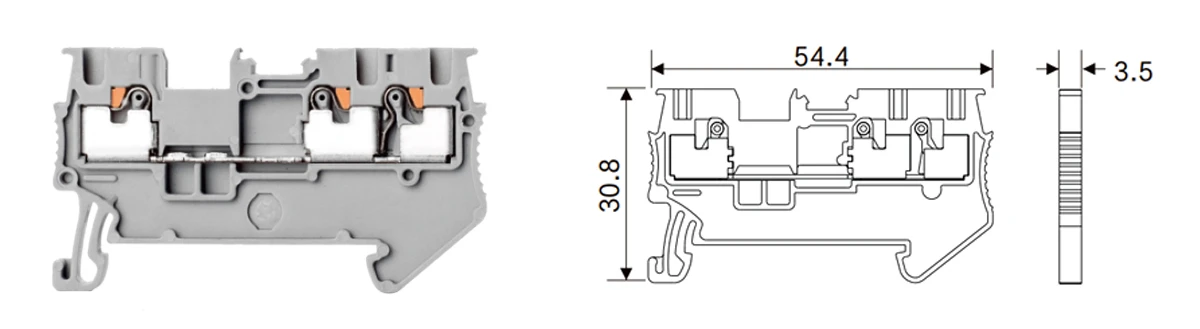

WD6-1.5/3
|
Model Number |
WD6-1.5/3 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/17.5A |
|
Section |
0.14-2.5mm² |
|
Length/Width/Height (mm) |
L54.4/H30.8 |
|
Conductor size |
26-14AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |

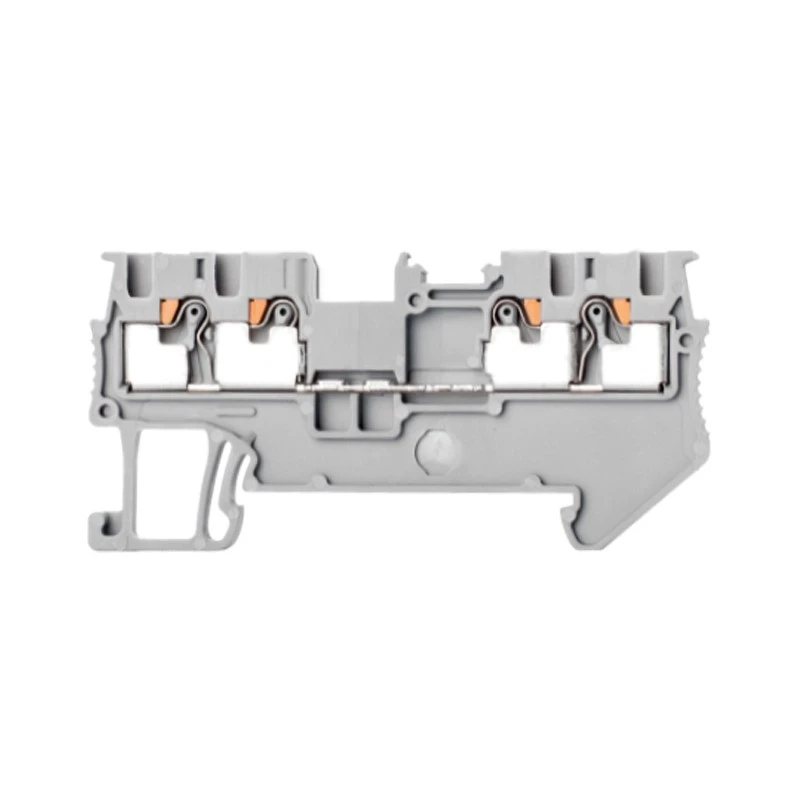

WD6-1.5/4
|
Model Number |
WD6-1.5/4 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/17.5A |
|
Section |
0.14-2.5mm² |
|
Length/Width/Height (mm) |
L63.2/H30.8 |
|
Conductor size |
26-14AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
100 pieces per box |

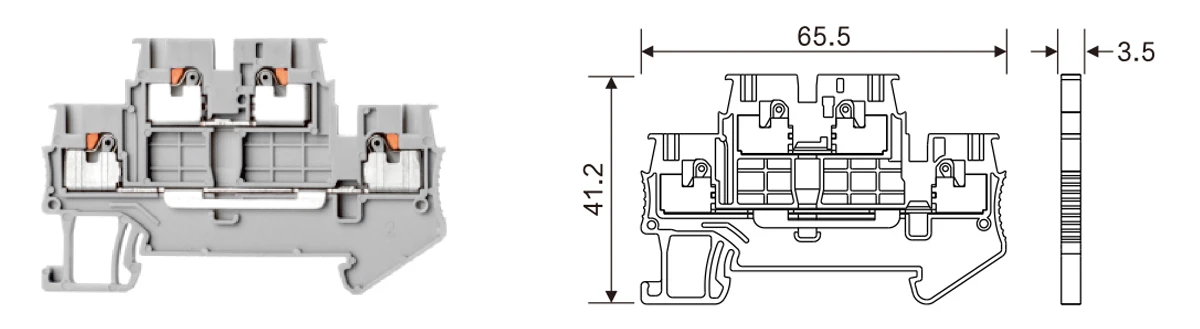

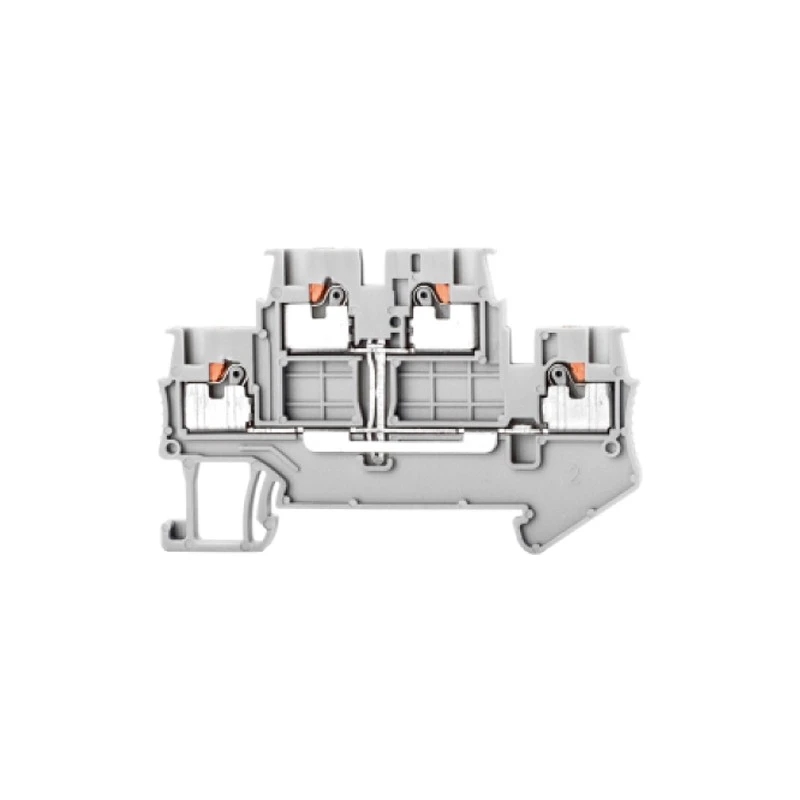

WD6-1.5/2/2
|
Model Number |
WD6-1.5/2/2 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/16A |
|
Section |
0.14-2.5mm² |
|
Length/Width/Height (mm) |
L65.5/H41.2 |
|
Conductor size |
26-14AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |

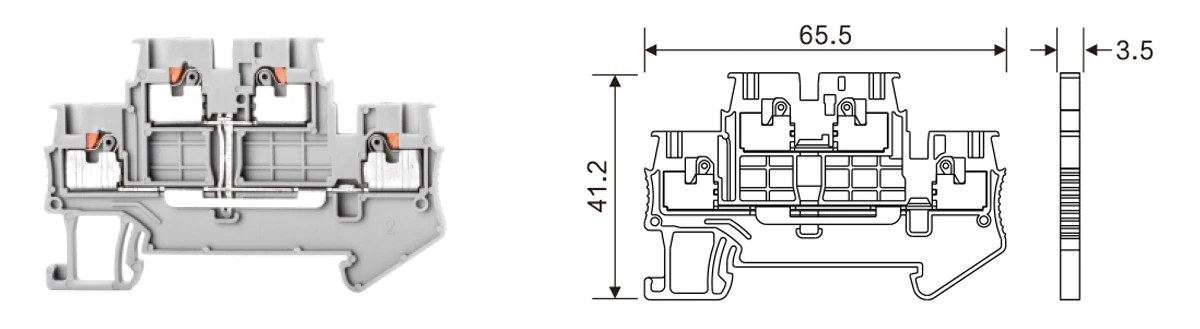

WD6-1.5/2/2
|
Model Number |
WD6-1.5/2/2PV |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/16A |
|
Section |
0.14-2.5mm² |
|
Length/Width/Height (mm) |
L65.5/H41.2 |
|
Conductor size |
26-14AWG |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |

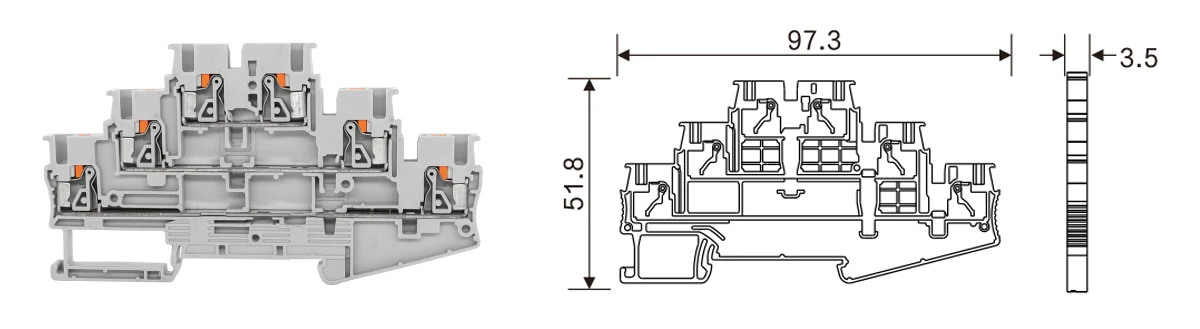

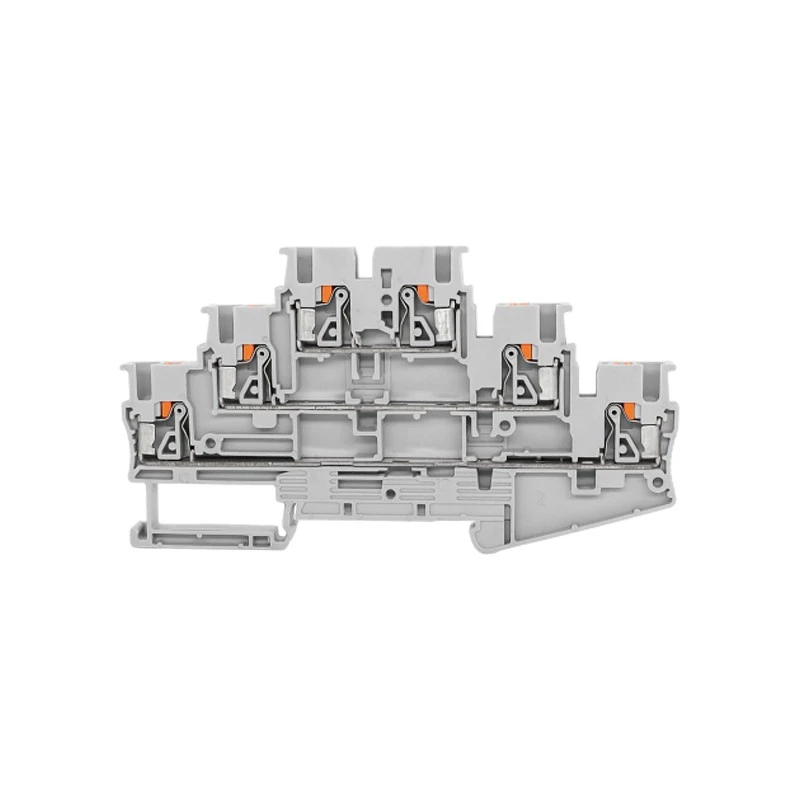

WD6-1.5/2/3
|
Model Number |
WD6-1.5/2/3 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/15A |
|
Section |
1.5 |
|
Length/Width/Height (mm) |
L97.3/H51.8 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |

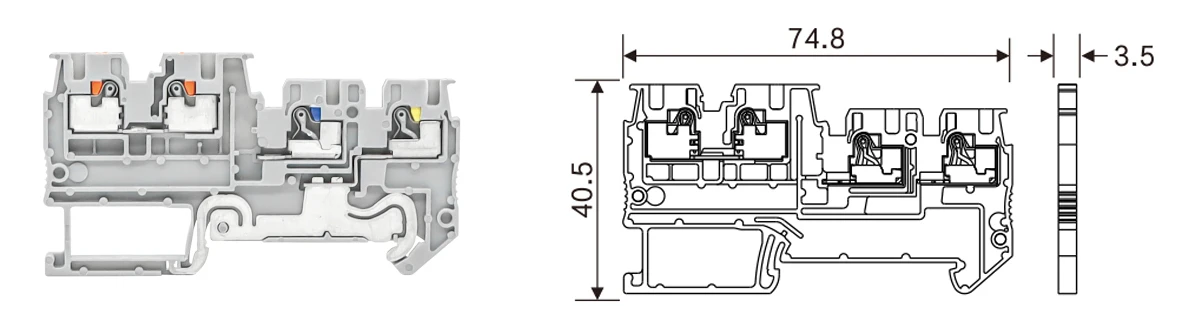

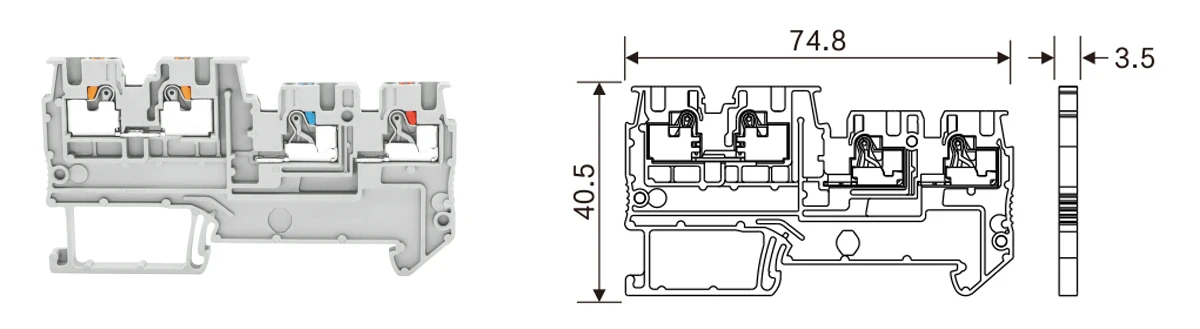

WD6-1.5-IO
|
Model Number |
WD6-1.5-IO |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
250V/13.5A |
|
Section |
1.5 |
|
Length/Width/Height (mm) |
L74.8/H40.5 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WD6-1.5-IO-4-PE
|
Model Number |
WD6-1.5-IO-4-PE |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
250V/13.5A |
|
Section |
1.5 |
|
Length/Width/Height (mm) |
L74.8/H40.5 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |

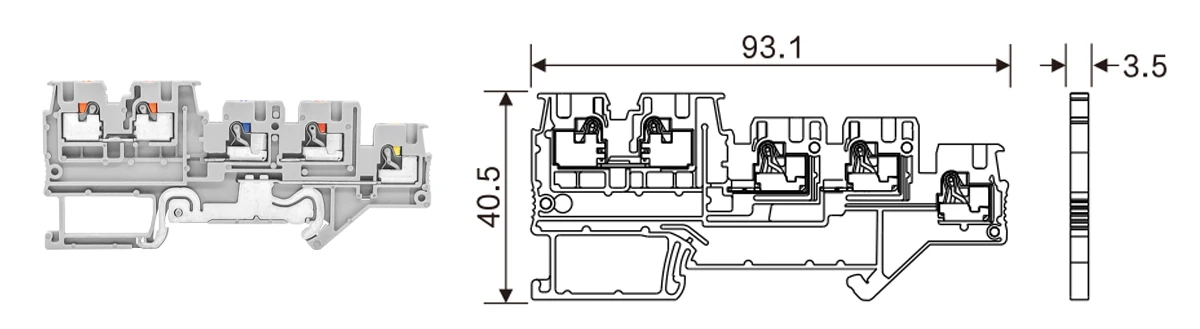

WD6-1.5-IO-5-PE
|
Model Number |
WD6-1.5-IO-5-PE |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
250V/13.5A |
|
Section |
1.5 |
|
Length/Width/Height (mm) |
L93.1/H40.5 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |

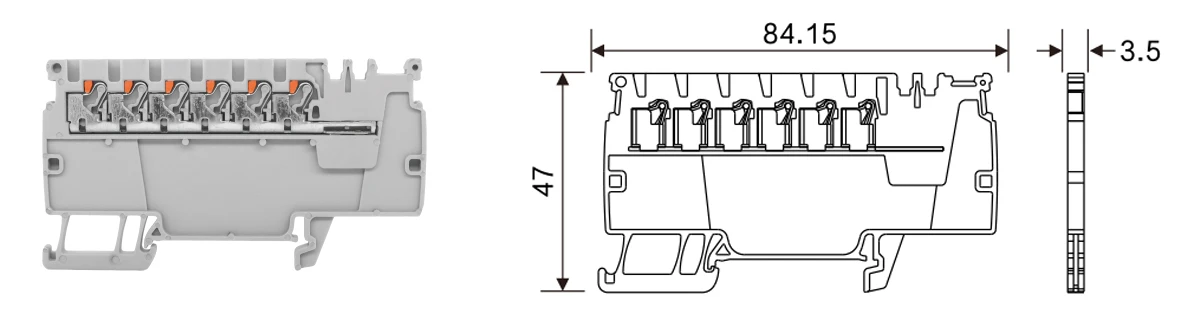

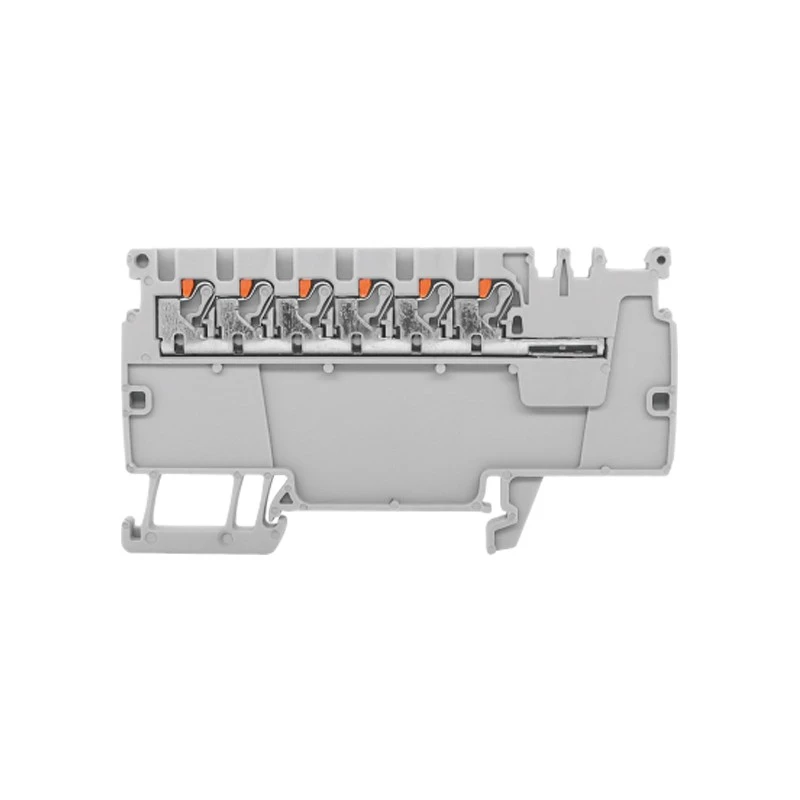

WD6-1.5×6-FX
|
Model Number |
WD6-1.5×6-FX |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
500V/17.5A |
|
Section |
1.5 |
|
Length/Width/Height (mm) |
L84.15/H47 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
