Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of differential collector signal converter in China. With abundant experience, we warmly welcome you to buy the newest differential collector signal converter from our factory. All customized products are with high quality and low price. Contact us for free sample.

Product advantages

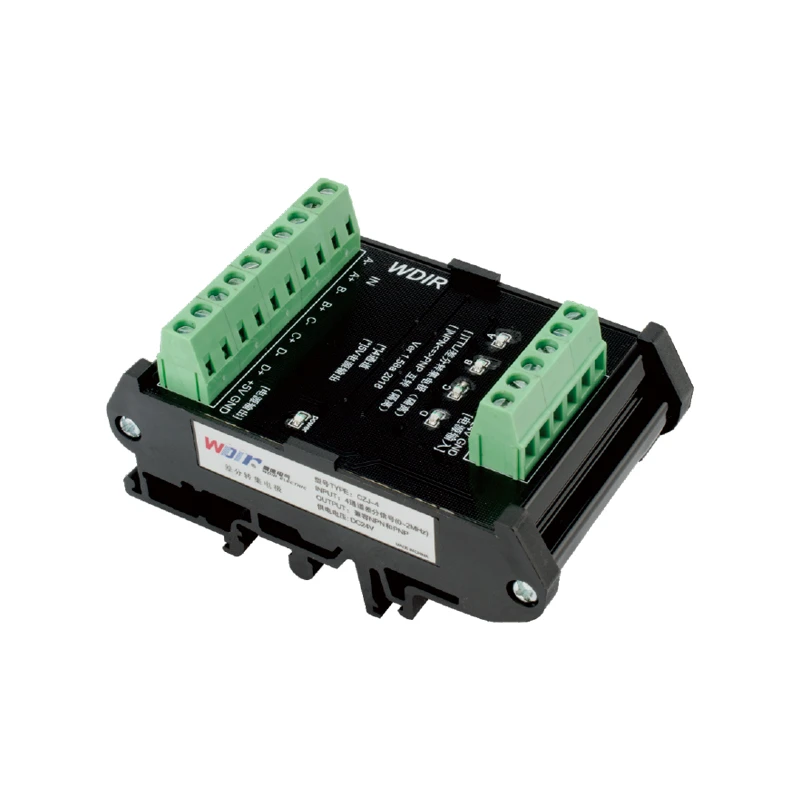

Name: Differential collector signal converter

Model: JZC--4/CZJ-4

1. Professional Signal Conversion: Differential collector signal converter differential A/B phase signals from servo encoders and grating rulers into standard TTL collector signals, perfectly matching PLC high-speed counting requirements.

2. Excellent Anti-interference Ability: Differential collector signal converter supports stable long-distance signal transmission and works reliably in high-noise and strong electromagnetic interference industrial environments.

3. Safe and Precise Operation: Adopting dual front and rear optocoupler isolation design, it achieves effective electrical isolation, greatly improving system safety and control accuracy.

4. Wide Compatibility: Differential collector signal converter solves the signal mismatch issue between differential output devices and TTL/collector-type PLCs or single-chip microcomputers, realizing seamless adaptation for industrial closed-loop control systems.

Main purpose

1. Interface adaptation: It converts differential signals from encoders and grating rulers for single-chip and PLC devices, solving signal incompatibility issues.

2. Wide PLC compatibility: Fully supports high-speed counting interfaces of mainstream PLC brands, including Siemens, Omron, Mitsubishi, ABB, AB, Panasonic and Delta.

3. Motion control conversion: Stably transmits motor position feedback signals to PLCs to ensure accurate closed-loop motion control.

4. Inverter signal transmission: Realizes stable signal docking and data exchange between variable frequency drives and PLC control systems.

Technical parameter

Model	JZC-4/CZJ-4
Conductor wire cross-section	1.5 mm² / awg 16
Attestation	Rohs,ce
Working voltage	Dc24v
Incoming signal	Differential signal, signal voltage dc 3.5–5 v
Input signal frequency	0～500khz
Output signal	Dc24v push-pull output, signal current not exceeding 20 ma, pnp/npn configuration
Indication light status	Output signal indicator light (red when channel input is active) power indicator light (red)
Pressure drop requirement	The voltage difference between the positive and negative phases on the same input circuit should be no less than 3.5 v and no more than 5 v.
Working temperature	-10°c～+50°c
Storage temperature	-20°c～+70°c
Shell material	Flame-retardant engineering plastic (typically pa66, with v-0 flame retardancy rating and high-temperature resistance)

model	CZJ-4-D/RJ45-01
Conductor wire cross-section	1.5 mm² / AWG 16
attestation	RoHS,CE
rated voltage	50V
Input wire diameter	RJ45
rated current	1A
Indication light status	Output signal indicator light (red when channel input) Power indicator light (red)
working temperature	-10°C～+50°C
Storage temperature	-20°C～+70°C
Shell material	Flame-retardant engineering plastic (typically PA66, with V-0 flame retardancy rating and high-temperature resistance)
