Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of 10mm terminal block in China. With abundant experience, we warmly welcome you to buy the newest 10mm terminal block from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product Details
WD6-10mm Terminal blocks are essential components used to safely and efficiently connect electrical conductors in control panels, industrial automation systems, and power distribution applications. By providing a secure termination point for field wiring, terminal blocks help organize complex wiring layouts while reducing the risk of loose connections, signal loss, or electrical faults. Their modular design supports clean, serviceable installations in control cabinets and junction boxes.
Widr Available in multiple connection technologies, including screw, spring clamp, and push-in. terminal blocks can be selected to match installation preferences and application requirements. WD6-10mm Terminal blocks offer a traditional, robust connection method, while spring and push-in styles support faster wiring with consistent contact pressure. Terminal blocks are designed to accommodate a wide range of wire sizes and conductor cross-sections, supporting both low-voltage signal wiring and high-current power applications. Terminal blocks are commonly mounted on DIN rails or fixed to mounting plates, allowing flexible configuration and easy expansion. While PCB terminal blocks and terminal block connectors are used to interface directly with circuit boards, traditional terminal blocks remain critical for field wiring and panel-level connections.
WD6-10
|
Model Number |
WD6-10 |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
1000V/57A |
|
Section |
10 |
|
Length/Width/Height (mm) |
L68.45/H49.4 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WD6-10
| Model Number | WD6-10/3 |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 1000V/57A |
| Section | 10 |
| Length/Width/Height (mm) | L89.5/H49.7 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |

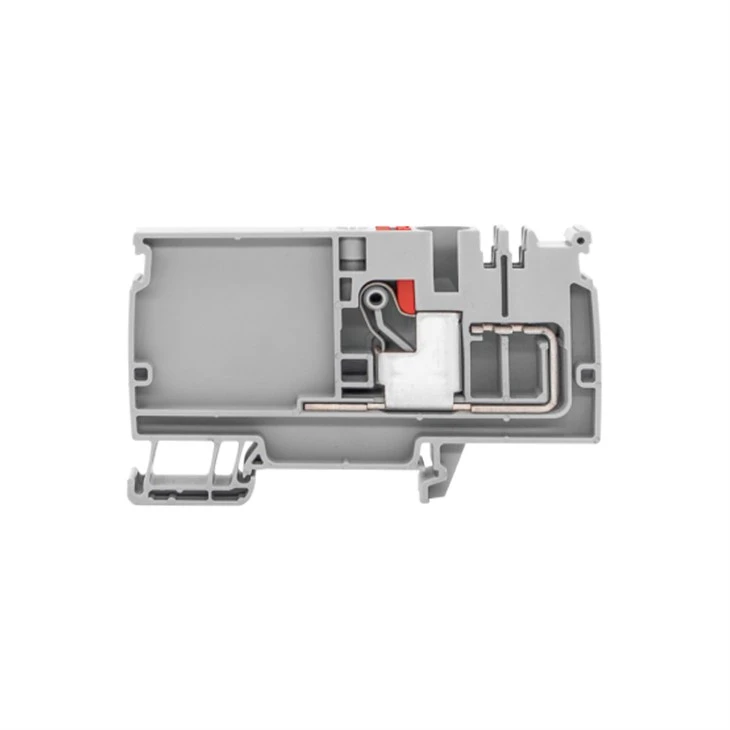

WD6-10-FX
| Model Number | WD6-10-FX |
| Brand | WDIR |
| Pigment | You can customize gray, blue, orange, yellow, and other colors. |
| Material | Flame-retardant nylon PA66, tin-plated copper |
| On-link Mode | Direct plug/spring connection |
| Rated Voltage/Current | 800V/57A |
| Section | 10 |
| Length/Width/Height (mm) | L87.7/H53.5 |
| Attestation | CE certification, RoHS certification, SGS/ISO 9001 certification |
| Characteristic | WDIR, LOGO customizable |
| Packing for Transport | 50 pieces per box |
FAQ
Q: How long has your factory been established? What is your production experience?
A: Our company was founded in 2000, with more than 20 years of professional manufacturing experience in electrical accessories. We built an independent production line for relay modules in 2010, owning 15+ years of R&D and production experience in relay modules up to now. We have mature production technology and strict quality control system for all product lines.
Q: Do you welcome global business cooperation?
A: With the trend of global economic integration, we sincerely welcome enterprises from all over the world to establish stable and long-term cooperative relationships with us. We will provide reliable products, favorable factory price and thoughtful after-sales service to achieve mutual benefit and win-win results together.
