Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of earth terminal 4mm in China. With abundant experience, we warmly welcome you to buy the newest earth terminal 4mm from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product Details
Earth terminal 4mm and supports direct connection of hard wires, flexible wires, and wires with cold pressed terminals. It has a rated voltage of 500V, a rated current of 17.5A, and an impulse withstand voltage of 8kV. Earth terminal 4mm can operate stably in environments ranging from -50 ℃ to+120 ℃. The shell is made of PA66 engineering plastic, reaching UL94 V-0 flame retardant grade, with excellent insulation, aging resistance and leakage resistance; The conductive components are made of high-purity copper to reduce contact resistance, avoid wire heating, and have excellent anti vibration performance.
Features
For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks
For a clear overview, each terminal point supports large-surface labeling
As an option, the levels can be connected using the FBS PV UT vertical bridge
Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
Tested for railway applications

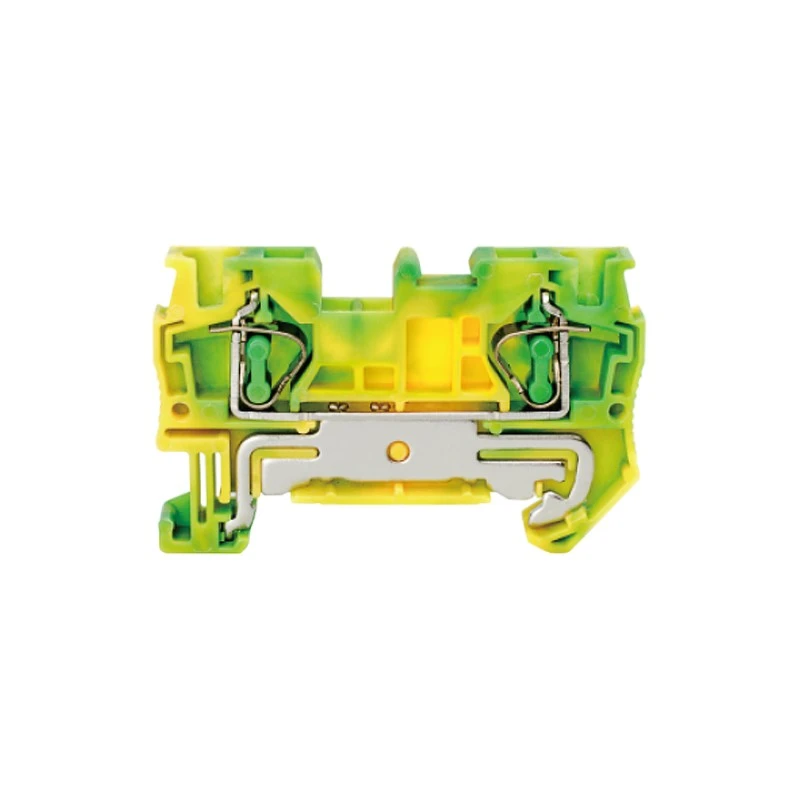

WD5-4PE
|
Model Number |
WD5-4PE |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
- |
|
Section |
4 |
|
Length/Width/Height (mm) |
L56.03/H35.5 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WD5-4/3PE
|
Model Number |
WD5-4/3PE |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
- |
|
Section |
4 |
|
Length/Width/Height (mm) |
L71.53/H35.5 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WD5-4/3PE
|
Model Number |
WD5-4/4PE |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
- |
|
Section |
4 |
|
Length/Width/Height (mm) |
L87.18/H35.5 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
