Zhejiang Weide Electric Co., Ltd. is one of the leading manufacturers and suppliers of earth terminal 10mm in China. With abundant experience, we warmly welcome you to buy the newest earth terminal 10mm from our factory. All customized products are with high quality and low price. Contact us for free sample.
Product Details
Earth terminal 10mm is a heavy-duty industrial wiring component built for fast, reliable conductor termination and consistent, stable electrical connections. Earth terminal 16mm features an optimized pullback spring mechanism paired with a low-profile, space-saving housing design, and fits seamlessly onto standard NS35/7.5 DIN rails for tool-free, snap-in installation. This makes it a go-to choice for a wide range of industrial control, automation, and power distribution applications.
This Earth terminal 10mm is fully compliant with global industry standards including IEC/EN60947 and UL1059, and holds CE, RoHS, and SGS certifications to ensure consistent quality for both domestic and international market requirements.
In terms of technical specifications, it supports conductor cross-sections from 0.11 to 1.5 mm² (equivalent to AWG 28 to 16), and works with solid wires, stranded flexible wires, and wires pre-fitted with cold-pressed terminals without any modification. It has a rated voltage of 500V, rated current of 17.5A, and impulse withstand voltage of 8kV, and delivers reliable performance even in extreme operating temperatures ranging from -50°C to +120°C.
The terminal block's outer housing is molded from PA66 engineering plastic with a UL94 V-0 flame retardant rating, offering outstanding insulation properties, long-term aging resistance, and leakage protection for harsh industrial environments. Its internal conductive parts are machined from high-purity copper to minimize contact resistance, prevent overheating during operation, and provide exceptional vibration resistance for high-shock applications.

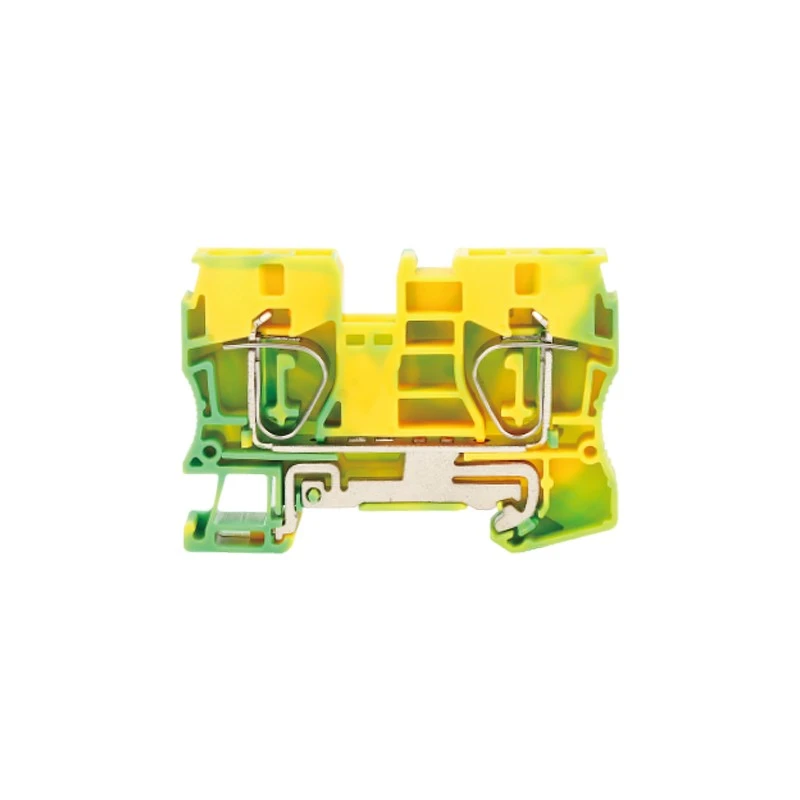

WD5-10PE
|
Model Number |
WD5-10PE |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
- |
|
Section |
10 |
|
Length/Width/Height (mm) |
L71.33/H49.4 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
WD5-10/3PE
|
Model Number |
WD5-10/3PE |
|
Brand |
WDIR |
|
Pigment |
You can customize gray, blue, orange, yellow, and other colors. |
|
Material |
Flame-retardant nylon PA66, tin-plated copper |
|
On-link mode |
Direct plug/spring connection |
|
Rated voltage/current |
- |
|
Section |
10 |
|
Length/Width/Height (mm) |
L95.65/H49.4 |
|
Attestation |
CE certification, RoHS certification, SGS/ISO 9001 certification |
|
Characteristic |
WDIR, LOGO customizable |
|
Packing for transport |
50 pieces per box |
